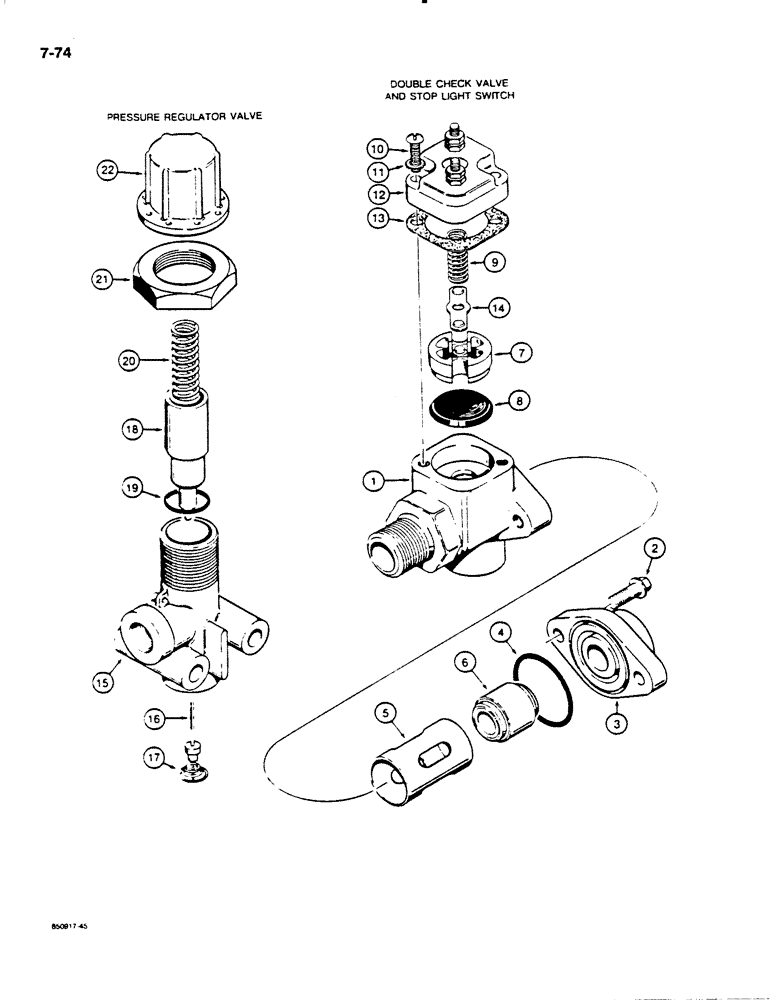

Запчасти Case W18B (7-74) - DOUBLE CHECK VALVE AND PRESSURE REGULATOR VALVE (07) - BRAKES

L48128

VALVE

ASSEMBLY - double check and stop light switch

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, double check and stop light switch

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Double check valve and stop light switch Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

3

L33702

COVER

CAP - valve body, double check and stop light switch

1шт.

4

L31499

O-RING,1" ID x 40546" OD x 3"

- cap, double check valve and stop light switch

1шт.

5

L31497

GUIDE

- valve shuttle, double check and stop light switch

1шт.

6

L31498

ROD

SHUTTLE - check valve, and stop light switch

1шт.

7

L33202

PISTON

- check valve, and stop light switch

1шт.

8

L33201

DIAPHRAGM

- piston, double check valve and stop light switch

1шт.

9

L33204

SPRING

- piston return, double check valve and stop light switch

1шт.

10

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, No. 10 - 24 NC x 3/4", double check valve and stop light switch

2шт.

11

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , Double check valve and stop light switch Ext Tooth, #10

2шт.

12

L33206

COVER

- valve body and stop light terminals, double check

1шт.

13

L33205

GASKET

- valve body cover, double check and stop light switch

1шт.

14

L33203

TERMINAL STRIP

STRIP - contact, switch, double check valve and stop light

1шт.

L48129

VALVE

ASSEMBLY - pressure regulator

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - valve, pressure regulator

1шт.

16

REFERENCE

SPARE PART

- inlet and exhaust, pressure regulator

1шт.

17

L33660

SPRING

- valve, pressure regulator

1шт.

18

L33661

PISTON

- valve, pressure regulator

1шт.

19

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

- piston, pressure regulator

1шт.

20

L33662

VALVE SPRING

SPRING - pressure regulating

1шт.

21

131-414

LOCK NUT,PAL, 7/8"-14

NUT - special locking, 7/8" - 14 NF, pressure regulator

1шт.

22

L33316

CAP

- pressure adjusting, regulator

1шт.
