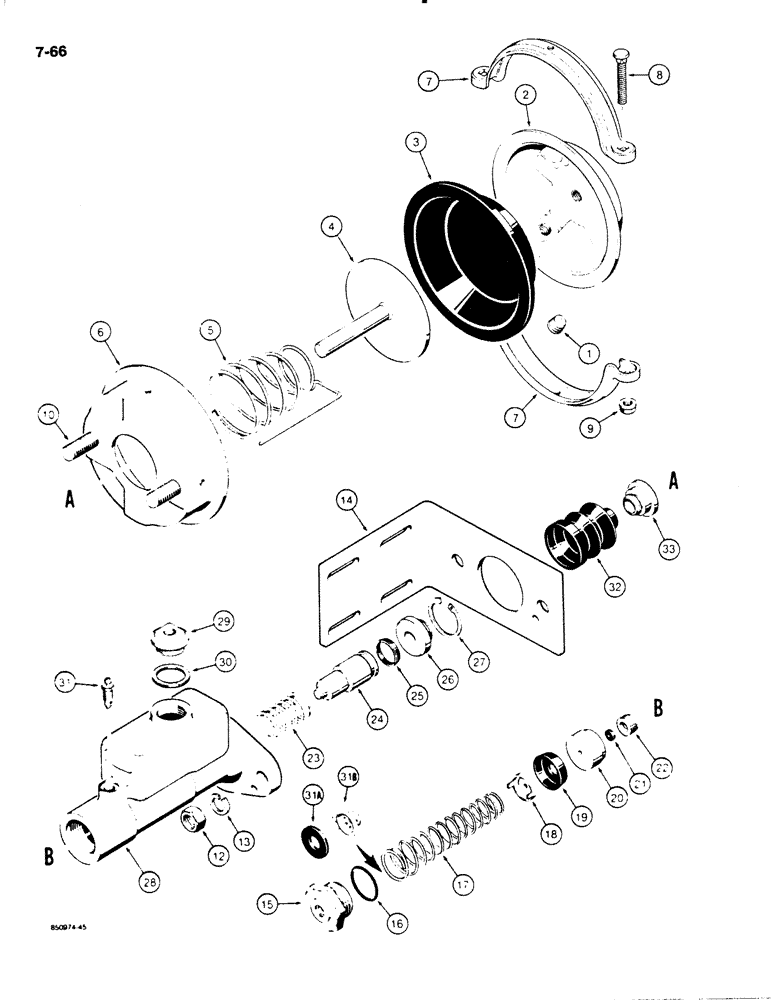

Запчасти Case W18B (7-66) - L112001 BRAKE ACTUATOR (07) - BRAKES

L112001

ACTUATOR

BRAKE ACTUATOR - Minn. Auto. No. 02-460-501

2шт.

N8693

ACTUATOR

AIR CHAMBER ASSEMBLY - brake actuator, Includes: Ref. 1 - 13

1шт.

1

221-1843

PLUG

- 3/4" NPT

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - air chamber

1шт.

3

N8698

DIAPHRAGM

- air chamber

1шт.

4

NSS

NOT SOLD SEPARAT

PUSH ROD - brake actuator

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - diaphragm return

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air chamber

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - air chamber

2шт.

8

NSS

NOT SOLD SEPARAT

BOLT - special

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

NSS

NOT SOLD SEPARAT

STUD - air chamber

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - air chamber, not shown

2шт.

12

129-127

NUT,5/8"-18, G5

2шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

N8694

SUPPORT

BRACKET - mounting

1шт.

14a

N8814

MASTER CYLINDER

- brake actuator, Includes: Ref. 15 - 31B

1шт.

Per info from vendor, N8695 and N8814 Master Cylinder Assy's are made from same casting. Main visual difference between the Assy's is that the N8695 uses N8701 filler plug, which has a 1/4-18 NPTF thread thru the top. N8814 uses A12888 filler plug, which does not have a hole thru the top. The A12888 has a Baffle Assy on bottom of plug and a vent hole coming out the side of plug. Both have a 2 Bolt mounting flange at one end of the cylinder. If unit mounts with 2 Bolts thru the side, and has a casting # of F

1шт.

15

NSS

NOT SOLD SEPARAT

END PLUG - master cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

17

N8700

SPRING

- return

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

19

NSS

NOT SOLD SEPARAT

CUP - retainer

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON - short

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - piston

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - seat

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - long

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - cup

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - master cylinder

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINING RING - bearing

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

29

A12888

FILLER CAP

PLUG - filler

1шт.

30

S114797

SEAL,31.75mm ID x 41.27mm OD x 1.59mm Thk

- filler plug

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

31

S107710

SCREW

- air removal

1шт.

31a

NSS

NOT SOLD SEPARAT

SEAT - check valve

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

31b

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

32

N8696

BOOT

- brake actuator

1шт.

33

N8697

GUIDE

- brake actuator

1шт.

N8937

KIT

- master cylinder repair, Includes: Refs. 16, 19 - 22, 25, 27, 30, 31A and 31B

1шт.
