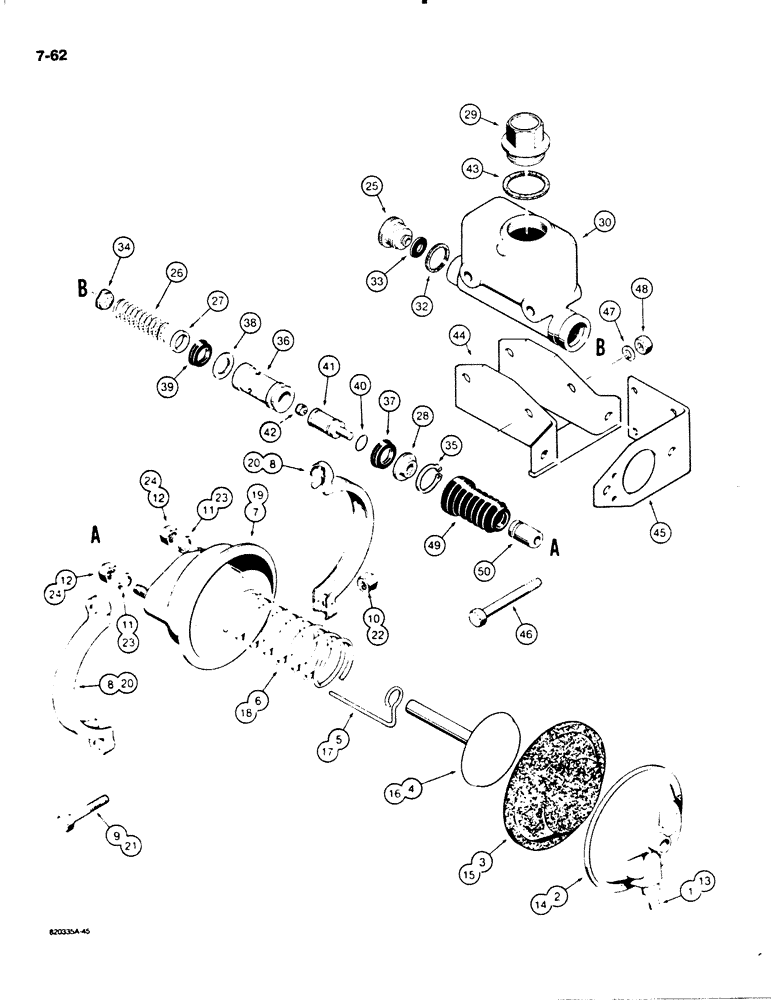

Запчасти Case W18B (7-62) - L107957 AND L112957 BRAKE ACTUATORS (07) - BRAKES

L107957

CLUSTER

BRAKE ACTUATOR - Wagner No. A104362, no longer available, order L112001 brake actuator, parts list Figure 7-66, Includes: Ref. 1 - 50

2шт.

L112957

CLUSTER

BRAKE ACTUATOR - Wagner No. A105152, no longer available, order L112001 brake actuator, parts list Figure 7-66, Includes: Ref. 1 - 50

2шт.

N7916

CHAMBER

AIR CHAMBER ASSEMBLY - brake actuator, order N9054 air chamber, Includes: Ref. 1 - 12

1шт.

1

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

3

N7918

DIAPHRAGM

- air chamber

1шт.

4

NSS

NOT SOLD SEPARAT

PUSH ROD - brake actuator, see N7922 kit below

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - stroke indicator

1шт.

6

N7920

SPRING

- diaphragm return

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE AND STUD ASSEMBLY - air chamber

1шт.

8

N7919

CLAMP

- plate and stud assembly

2шт.

9

114-216

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- hex head, 3/8" - 24 NF x 2"

2шт.

10

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, 3/8" - 24 NF

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

129-167

JAM NUT,Jam, 5/8"-18, G5

JAM NUT - 5/8" - 11 NC

2шт.

N9054

CHAMBER

AIR CHAMBER ASSEMBLY - brake actuator, Midland No. N30169A, part No stamped on assembly, Includes: Ref. 13 - 24

1шт.

13

221-1843

PLUG

- hex socket head, 3/8" NPT

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

15

N7918

DIAPHRAGM

- air chamber

1шт.

16

N9933

PUSH ROD

- brake actuator

1шт.

17

N9935

INDICATOR

ROD - stroke indicator

1шт.

18

N9932

SPRING

- diaphragm return

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE AND STUD ASSEMBLY - air chamber

1шт.

20

N9930

CLAMP

- plate and stud assembly

2шт.

21

111-334

CARRIAGE BOLT,Short NK, 3/8"-16 x 2", G5

- 3/8" - 16 NC x 2", plated

2шт.

22

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex, flange type, special locking, 3/8" - 16 NC

2шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

129-107

NUT,5/8"-11, G5

JAM NUT - 5/8" - 11 NC, plated

2шт.

N7922

PUSH ROD

KIT - push rod, includes Ref. 4 on this Fig. and Ref. 28 & 50

1шт.

REF

INSTRUCTION

BRAKE ACTUATOR - continued from previous page

1шт.

N7917

CYLINDER

MASTER CYLINDER - brake actuator, Includes: Ref. 25 - 43

1шт.

25

NSS

NOT SOLD SEPARAT

HEAD FITTING - master cylinder, used with L107957 actuator only

1шт.

26

D78303

SPRING

- return

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

28

NSS

NOT SOLD SEPARAT

STOP - piston, see N7922 kit below

1шт.

29

A19918

CAP

- filler

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - reservoir

1шт.

31

N6937

GASKET KIT

KIT - master cylinder repair, not shown, Includes: Ref. 32 - 43

1шт.

32

NSS

NOT SOLD SEPARAT

GASKET - head fitting, used with L107957 actuator only

1шт.

33

D83183

KIT

SEAT - spring

1шт.

34

NSS

NOT SOLD SEPARAT

CHECK VALVE - master cylinder

1шт.

35

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , master cylinder 1.625", Int, #162

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON - main

1шт.

37

NSS

NOT SOLD SEPARAT

U-CUP SEAL - piston

1шт.

38

NSS

NOT SOLD SEPARAT

BACKUP RING - seal

1шт.

39

NSS

NOT SOLD SEPARAT

U-CUP SEAL - master cylinder

1шт.

40

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- piston

1шт.

41

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - inner

1шт.

42

N6567

VALVE

CHECK VALVE - piston assembly

1шт.

43

NSS

NOT SOLD SEPARAT

GASKET - filler cap

1шт.

P/N is A19755.

1шт.

44

NSS

NOT SOLD SEPARAT

BRACKET - master cylinder

1шт.

45

NSS

NOT SOLD SEPARAT

BRACKET - brake actuator

1шт.

46

114-310

BOLT,Hex, 7/16" - 20 x 3-3/4", Gr 5

2шт.

47

92-7

LOCK WASHER,7/16"

2шт.

48

425-117

NUT,7/16"-20, G5

- 7/16" - 20 NF

2шт.

49

NSS

NOT SOLD SEPARAT

BOOT - piston stop

1шт.

50

NSS

NOT SOLD SEPARAT

STOP - piston, see N7922 kit below

1шт.

N7922

PUSH ROD

KIT - push rod, includes Ref. 4, 28 & 50 on this Figure

1шт.
