Запчасти Case W18B (7-50) - BRAKE SYSTEM, PARKING BRAKE VALVE, ACTUATOR, AND CLUTCH CUTOUT (07) - BRAKES

1

L73042

VALVE, BRAKE

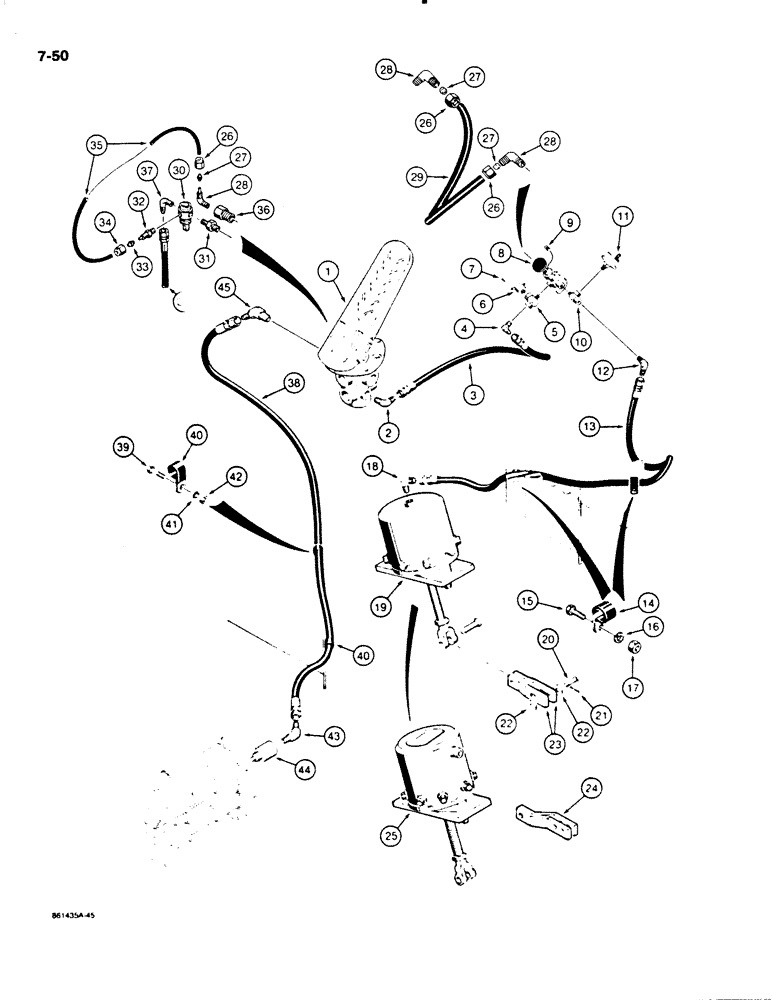

TREADLE ASSEMBLY - parts list Figure 7-54

2шт.

2

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

3

L49927

HOSE

- 40" (1016 mm) long

1шт.

4

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

5

217-1250

TEE,1/4"-18 Female x 1/8"-27 Male Run

- special

1шт.

6

S213102

INDICATOR

SWITCH - air pressure

1шт.

7

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- No. 8 - 32 NC x 1/4"

2шт.

8

L103834

VALVE

ASSEMBLY - parking brake, parts list Figure 7-56

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT, if used

1шт.

10

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- special

1шт.

11

L57937

SWITCH

SENDER - air pressure

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

13

L48120

HOSE

- 82" (2033 mm) long

1шт.

14

49838

CLAMP

- hose

2шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

19

L48127

CHAMBER

PARKING BRAKE ACTUATOR - parts list Figure 7-70, no longer available, order L61187 parking brake actuator and L36241 kit listed below

1шт.

20

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16" diameter

1шт.

21

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

22

95-7

WASHER,7/16"

- flat, 7/16"

2шт.

23

L107710

DRAG LINK

LINK - parking brake, used with L48127 parking brake actuator

2шт.

24

L61286

BRACKET

LINK - used with L61187 parking brake actuator

1шт.

25

L61187

CHAMBER

PARKING BRAKE ACTUATOR - parts list Figure 7-72

1шт.

L36241

BRAKE LINE

KIT - parking brake actuator, includes L61286 parking brake link, item 24, and 8-31120 instruction sheet

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree

3шт.

Part of kit P/N L36270

1шт.

26

222-2600

NUT

NUT - compression fitting

1шт.

27

222-2610

SLEEVE

- compression fitting

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - compression fitting

1шт.

29

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

- 1/4" (6 mm) OD x 174" (4420 mm) long, cut to 52-1/2" (1335 mm) length

1шт.

Part of kit P/N L36270

1шт.

30

L109922

VALVE

ASSEMBLY - pilot, parts list Figure 7-80

1шт.

31

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - straight

1шт.

Part of kit P/N L36270

1шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight

1шт.

Part of kit P/N L36270

1шт.

32

NSS

NOT SOLD SEPARAT

CONNECTOR - compression fitting

1шт.

33

222-2610

SLEEVE

- compression fitting

1шт.

34

222-2600

NUT

NUT - compression fitting

1шт.

35

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

- 1/4" (6 mm) OD x 174" (4420 mm) long, cut to 10" (254 mm) length

1шт.

Part of kit P/N L36270

1шт.

36

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

REDUCER - 1/2" x 1/8" NPT

1шт.

37

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

Part of kit P/N L36270

1шт.

38

L117951

HOSE,0.25" ID x 52.00"

Clutch Cutout, If Used 0.25" ID x 52.00"

1шт.

Part of kit P/N L36270

1шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

40

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose to frame brackets

2шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

43

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.

44

L117120

CYLINDER

- clutch cutout, parts list Figure 7-82

1шт.

See L31030 adapter plug.

1шт.

45

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- 45 degree, if used

1шт.

L36270

KIT

- clutch disconnect, includes P/N 222-2640, Ref. 29, 31, P/N 222-2625, Ref. 35, 37, 38 and additional items not used on this model, for use on W18B before PIN 9152155 and W20C before PIN 9152441

1шт.
