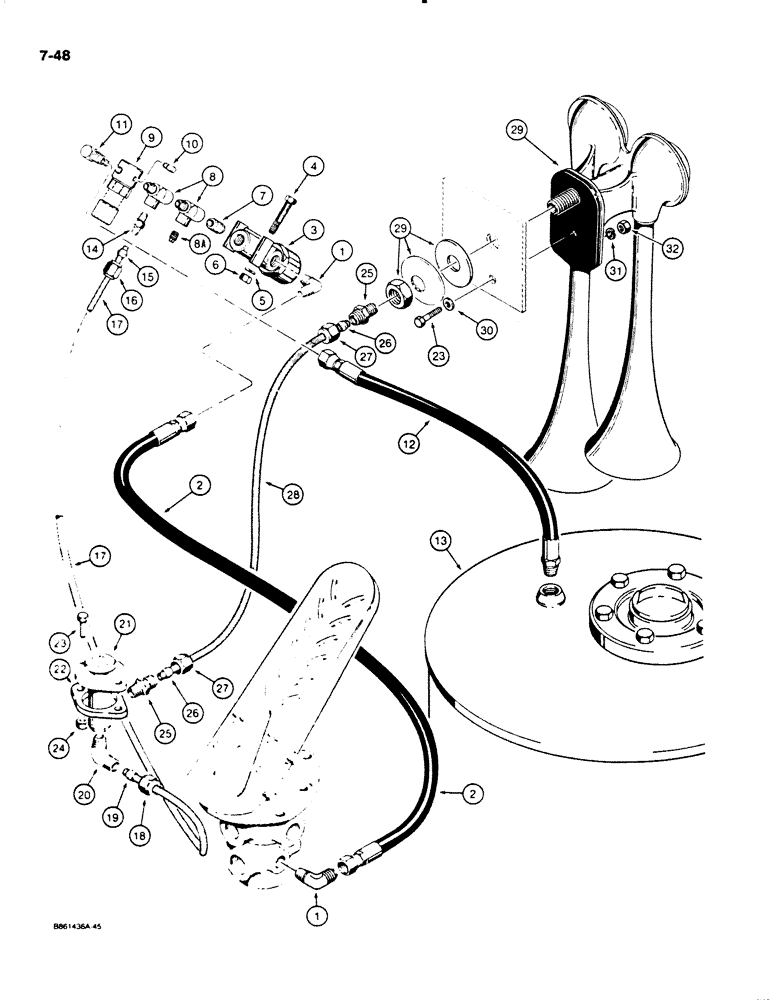

Запчасти Case W18B (7-48) - BRAKE SYS., TREADLE TO HYD. RSRVOIR & HORN USED ON W18B P.I.N. 9152103 & AFT. & ON W20C P.I.N. 91523 (07) - BRAKES

1

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, pipe

2шт.

2

D69427

HOSE

- 38" (965 mm) long

1шт.

3

L13530

VALVE

- pressure protection, parts list Figure 7-78

1шт.

4

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

25-104

NUT,1/4"-20, G5

2шт.

7

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

NIPPLE - 1/4" NPT x 7/8", brass

1шт.

8

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4 inch PT female branch x female PT x PT, 1 used on all units, 1 additional tee used for air valve control if unit is equipped with FACT coupler system

1-2шт.

8a

221-841

PLUG

- hex socket, 1/4 inch PT, if used

1шт.

9

L112300

VALVE

- pressure reducing, parts list Figure 7-76

1шт.

10

D38663

VENT

VALVE - relief

1шт.

11

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, pipe

1шт.

12

L16574

HOSE,0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

ASSY, 0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

1шт.

13

REF

INSTRUCTION

HYDRAULIC RESERVOIR - see Figure 8-02, items 13 and 13A

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CONNECTOR - tube

1шт.

15

222-2610

SLEEVE

- connector

1шт.

16

222-2600

NUT

NUT - connector

1шт.

17

A67322

TUBE

- 1/4" (6 mm) OD x 126" (3200 mm) long, cut to 30" (762 mm) length

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING - compression, 90 degree, Includes: Ref. 18 - 20

1шт.

18

222-2600

NUT

NUT - elbow

1шт.

19

222-2610

SLEEVE

- elbow

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

21

L12647

VALVE

- horn, air, parts list Figure 7-78

1шт.

22

L114090

SPACER

- horn valve

1шт.

23

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

24

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 25 - 27

2шт.

25

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

26

222-2610

SLEEVE

- connector

1шт.

27

222-2600

NUT

NUT - connector

1шт.

28

A67322

TUBE

- 1/4" (6 mm) OD x 126" (3200 mm) long, cut to 43" (1092 mm) length

1шт.

29

L76560

HORN

ASSEMBLY - air, parts list Figure 7-84

1шт.

30

95-4

WASHER,1/4"

- flat, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.
