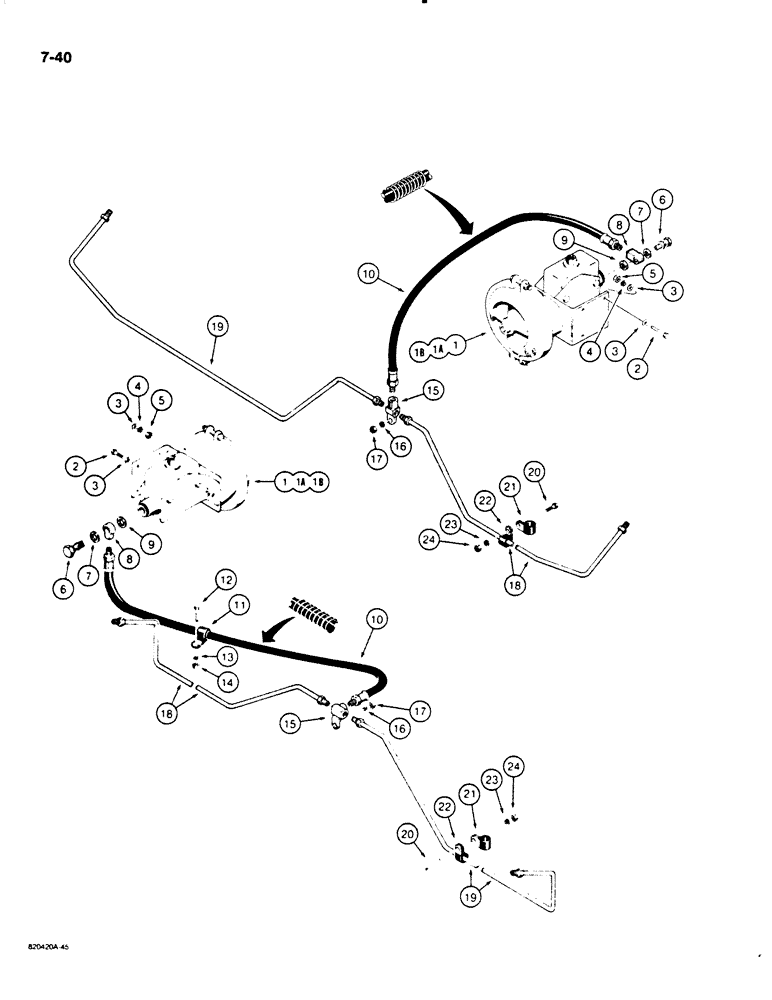

Запчасти Case W18B (7-40) - W18B BRAKE SYSTEM, BRAKE ACTUATORS TO WHEEL CYLINDERS (07) - BRAKES

1

L107957

CLUSTER

BRAKE ACTUATOR - Wagner part No. A104362, parts list Figures 7-62 and 7-64, order L112001 brake actuator

2шт.

1a

L112957

CLUSTER

BRAKE ACTUATOR - Wagner part No. A105152, parts list Figures 7-62 and 7-64, order L112001 brake actuator

2шт.

1b

L112001

ACTUATOR

BRAKE ACTUATOR - MICO No. 02-460-501, parts list Figure 7-66

2шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

6

A12864

BOLT

- special, tube fitting

2шт.

7

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, .600" (15.4 mm) ID

2шт.

8

A18531

FITTING

- brake, Serial Range: actuator-tube

2шт.

9

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner, .540" (13.72 mm) ID

2шт.

10

L104445

HOSE,3.17mm ID x 533.4mm L

- 21" (533 mm) long, service replacement hose may not have a protective spring guard which is not required at this location

2шт.

11

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- rear hose only

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

A12452

FITTING

TEE -, Serial Range: hose-tubes

2шт.

16

92-7

LOCK WASHER,7/16"

2шт.

17

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF

2шт.

18

L103719

TUBE,0.25" OD x 25.59, 16.57" L

- tee to wheel cylinder, right-hand front and left-hand rear

2шт.

19

L103717

TUBE,0.25" OD

- tee to wheel cylinder, left-hand front and right-hand rear

2шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

21

R14668

CLAMP

- tube support

4шт.

22

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
