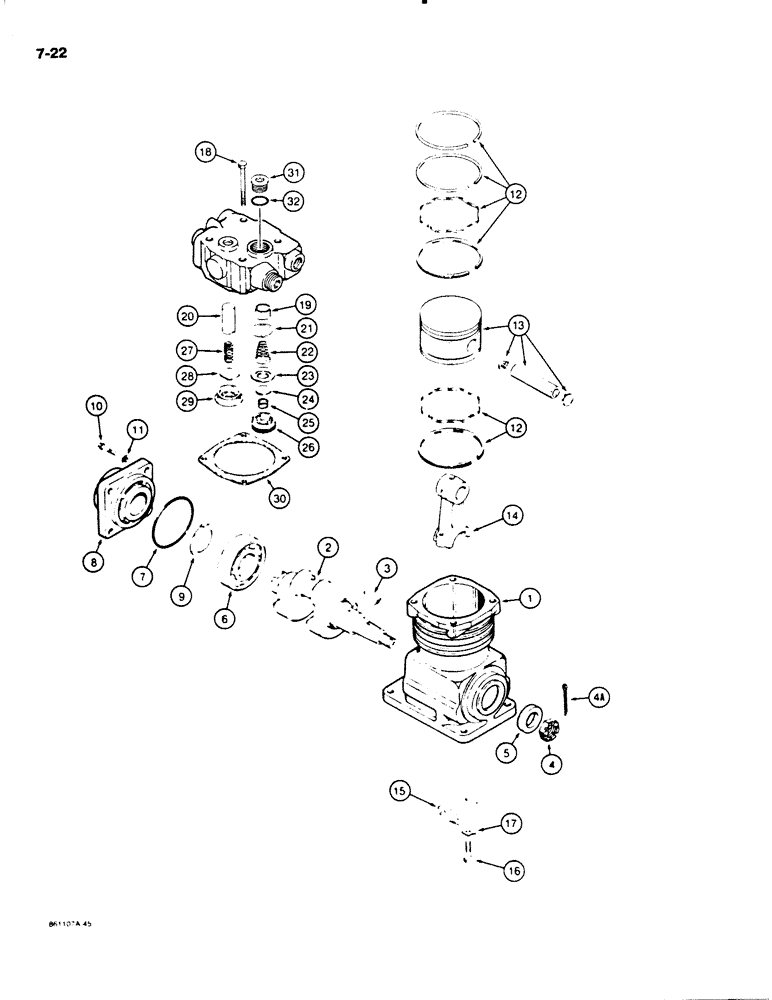

Запчасти Case W18B (7-22) - N9712 AIR COMPRESSOR, WATER COOLED (07) - BRAKES

N9712

COMPRESSOR

AIR COMPRESSOR ASSEMBLY - water cooled, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKCASE - air compressor

1шт.

2

N9725

CRANKSHAFT

- air compressor

1шт.

3

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - Hi-Pro type, No. HP808

1шт.

4

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex, slotted, 3/4" - 16 NF

1шт.

4a

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

5

S94706

OIL SEAL

OIL SEAL - front

1шт.

6

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - crankshaft

1шт.

7

N9722

O-RING

- special

1шт.

8

N9723

COVER

- end

1шт.

9

S117757

WASHER, THRUST

WASHER - thrust

1шт.

10

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

12

N9717

RING

PISTON RING SET - standard

1шт.

12

N9718

KIT

PISTON RING SET - oversized, .010" (0.254 mm)

1шт.

13

N9719

KIT

PISTON AND WRIST PIN - standard

1шт.

13

N9720

KIT

PISTON AND WRIST PIN - .010" (0.254 mm) oversized

1шт.

N9721

ROD, CONNECTING

ROD ASSEMBLY - standard, 1.1253" (29.58 mm), Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

CONNECTING ROD - piston

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - rod

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - special, connecting rod

2шт.

17

L31426

LOCK WASHER

WASHER - special, connecting rod

2шт.

18

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

N9713

HEAD

ASSEMBLY - cylinder, Includes: Ref. 19 - 32

1шт.

19

N9715

BUSHING

- unloader valve

1шт.

20

S117752

VALVE

STOP - inlet valve

1шт.

N9714

HEAD

KIT - head assembly, Includes: Ref. 21 - 32

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - unloader

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - unloader

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - unloader

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - inlet

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - inlet valve

1шт.

26

NSS

NOT SOLD SEPARAT

STOP - inlet valve

1шт.

27

S117754

SPRING

- exhaust valve

1шт.

28

L31450

VALVE

- exhaust

1шт.

29

NSS

NOT SOLD SEPARAT

SEAT - exhaust valve

1шт.

30

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: head-crankcase

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG - head

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.
