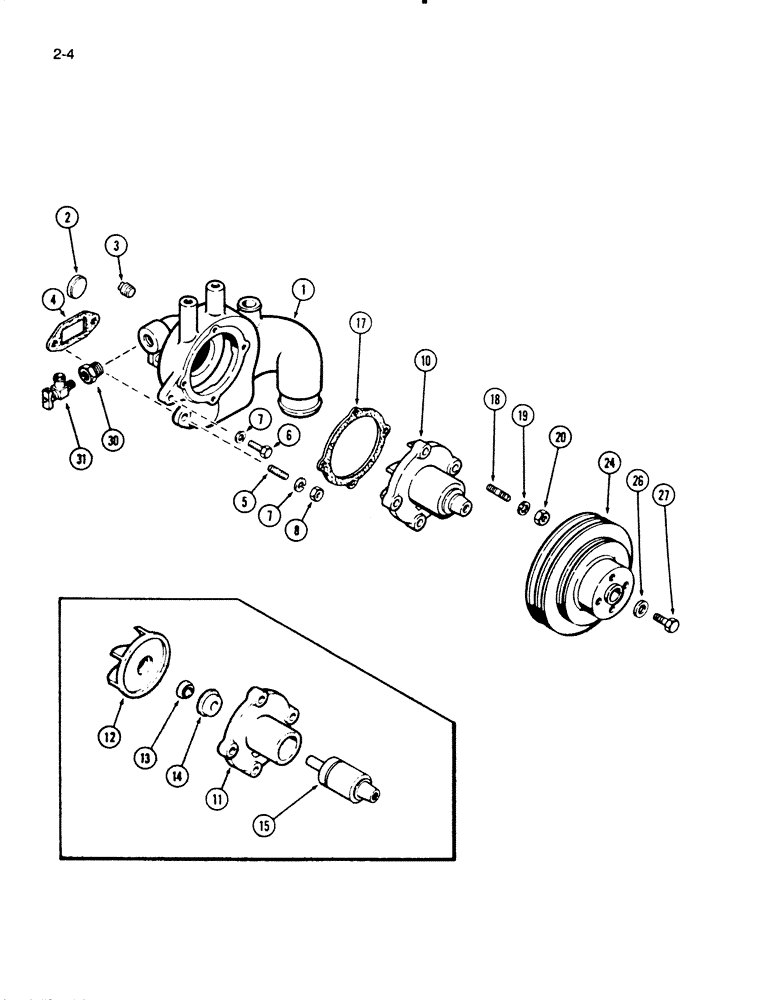

Запчасти Case W18B (2-04) - WATER PUMP, 504BD AND 504BDT ENGINE (02) - ENGINE

1

A148968

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup type, 1-3/8 inch diameter

1шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square, 1/2 inch PT

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

G102128

BOLT

STUD - 3/8 NC x 1-1/2 inch

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

2шт.

7

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A48369

PUMP

PUMP KIT - water, remanufactured (Includes Ref 17) (North America only)

1шт.

10

A157145

PUMP, WATER

PUMP ASSEMBLY - water, new, Includes: Ref. 11 - 15

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number - use this part number to return pump core for credit

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump body

1шт.

12

A152126

IMPELLER

IMPELLER - water

1шт.

13

A166280

SEAT

SEAT - impeller

1шт.

14

A166281

SEAL

SEAL - pump shaft

1шт.

15

A156995

BEARING

BEARING ASSEMBLY - pump shaft

1шт.

17

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

18

A166044

STUD

STUD - pump mounting

4шт.

19

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

24

A58650

PULLEY

PULLEY - belt, pump drive

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - pulley, flat, 33/64 x 1 x 11/32 inch

1шт.

27

114-400

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT, Hex, 1/2"-20 x 1 1/4", G5, Full Thd

1шт.

30

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

REDUCER - pipe, 3/4 male x 3/8 inch female

1шт.

31

A16764

VALVE

VALVE - water shutoff

1шт.
