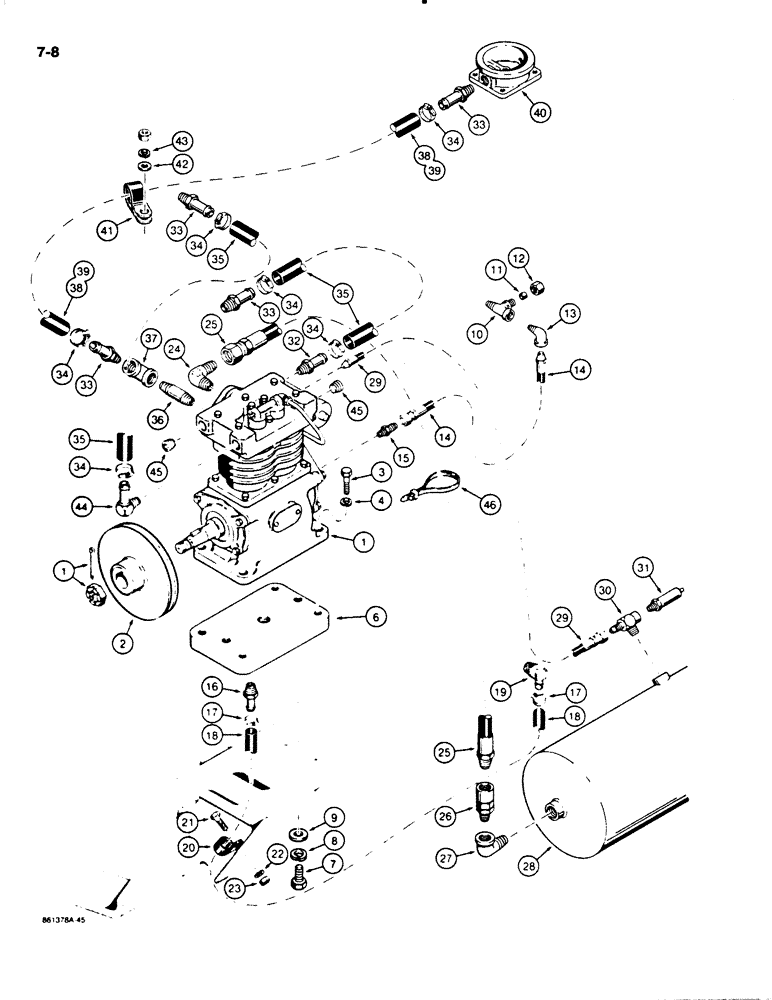

Запчасти Case W18B (7-08) - BRAKE SYSTEM, AIR COMPRESSOR TO RESERVOIR, MODELS WITH WATER COOLED SINGLE CYLINDER AIR COMPRESSOR (07) - BRAKES

1

L112909

COMPRESSOR

AIR COMPRESSOR - water cooled, two cylinder, parts list Figure 7-24

1шт.

1

LR112909

REMAN-COMPRESSOR

Compressor Only

1шт.

1

LC112909

CORE-COMPRESSOR

Return Part Number

1шт.

2

L57805

PULLEY

PULLEY - drive, compressor

1шт.

3

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

4

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

4шт.

5

M20458

SEALANT

SEALANT - 16 oz (473 ml) brushtop can, not shown

1шт.

6

L100499

BASE

PLATE - mounting, compressor

1шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

BOLT - hex, 1/2 NC x 1-1/4 inch

2шт.

8

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

9

D64050

WASHER

WASHER - flat, hardened

2шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

TEE - compression fitting, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

11

222-102

SLEEVE,1/4" Tube

SLEEVE, 1/4" Tube

1шт.

12

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

13

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

STREET ELBOW - 90 degree, 1/8" NPT, if used

1шт.

14

L112994

HOSE,0.50" ID x 32.00"

HOSE - 17" (432 mm) long

1шт.

15

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

1шт.

16

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

FITTING, , stem, straight 1/2" Hose X 3/8" NPTF Beaded

1шт.

17

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

2шт.

18

L41213

HOSE

HOSE - 1/2" (12 mm) ID x 28" (711 mm) long, lubrication, cut from S118466 hose, see below

1шт.

19

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

STEM FITTING - 45 degree

1шт.

20

R21385

CLAMP

CLAMP - hose

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC

1шт.

24

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ELBOW - 90 degree

1шт.

25

L100556

HOSE,0.25" ID x 17.00"

1шт.

26

G45437

LOCK VALVE

CHECK VALVE - air pressure, parts list Figure 7-32

1шт.

27

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

STREET ELBOW - 90 degree, 1/2" NPT

1шт.

28

REF

INSTRUCTION

RESERVOIR - air, brake system, see Figure 7-36, item 1

1шт.

29

L47886

HOSE

HOSE - 27" (686 mm) long

1шт.

30

L48131

FITTING

TEE - special

1шт.

31

L48992

VALVE,1/4"

VALVE ASSEMBLY - safety

1шт.

S118466

HOSE,0.50" ID x 300.00"

1шт.

32

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - straight

1шт.

33

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - straight

4шт.

34

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

35

L47116

HOSE

HOSE - 5/8" (16 mm) ID x 20" (508 mm) long, cut from A42610 hose, see below

2шт.

36

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - pipe, 1/2" NPT x 2-1/2"

1шт.

37

221-1377

ELBOW,90 Degree, 1/2" NPT

ELBOW - 90 degree, female

1шт.

38

L47888

HOSE

HOSE - 5/8" (16 mm) ID x 37" (940 mm) long, used without turbocharger

1шт.

39

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 28" (737 mm) long, used with turbocharger, order L47888 item 38 and cut to 28" length

1шт.

40

REF

INSTRUCTION

ADAPTER - air cleaner to intake manifold, see Figure 2-46, item 10

1шт.

41

NLS

NO LONGER SERVICED

- hose

1шт.

42

195-104

WASHER,3/8"

WASHER - flat, , plated 3/8"

1шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

44

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - 90 degree

1шт.

45

221-1843

PLUG

PLUG - hex socket head, 3/8" NPT

2шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

47

REFERENCE

SPARE PART

- air compressor, water cooled, two cylinder, not shown, includes items 14 and 24 on Figure 7-08 and 32 through 37, and 44 through 46 above

1шт.

A42610

LARGE HOSE

HOSE,LARGE HOSE - bulk roll, not shown, 5/8" (16 mm) ID x 50 ft. (15.2 m)

1шт.
