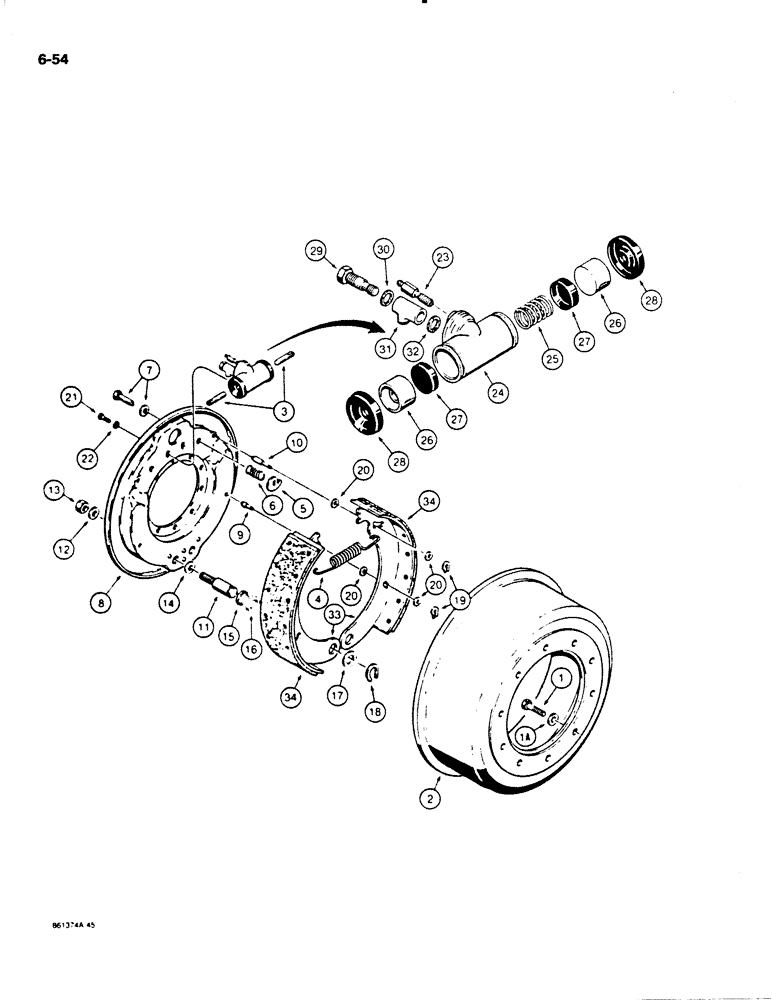

Запчасти Case W18B (6-54) - W18B FRONT AND REAR AXLE BRAKES, USED WITH L113185 AXLE (06) - POWER TRAIN

L113185

AXLE

ASSEMBLY - complete, PRLS-596-H106, Includes: Ref. 1 - 34

2шт.

1

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex head, 5/8" - 11 NC x 1-1/2", grade 8

20шт.

1a

L30737

WASHER

- special

20шт.

2

L33894

DRUM

- brake

2шт.

N9098

BRAKE ASSY.

BRAKE ASSEMBLY - axle, see Figure 6-52 for another brake assembly, Includes: Ref. 3 - 13

2шт.

3

N9108

PUSH ROD

ROD - push, brake cylinder

2шт.

4

L35486

SPRING

- shoe return

1шт.

N9099

PLATE ASSY.

PLATE ASSEMBLY - backing, brake, Includes: Ref. 5 - 13

1шт.

5

A13201

SHOE

CAM - brake adjusting

2шт.

6

A13023

SPRING

- adjusting cam

2шт.

7

A12997

CAPTIVE WASHER SCREW

BOLT AND WASHER - adjusting cam

2шт.

8

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

9

D83159

PIN

- shoe guide, short

2шт.

10

D83160

PIN

- shoe guide, long

2шт.

11

N9100

PIN

- anchor, brake

2шт.

12

L36067

WASHER

- special

2шт.

13

129-179

NUT,Hex, 3/4" - 16, Gr 5

2шт.

14

D83164

WASHER

- special, anchor pin

2шт.

15

D83165

FELT

SEAL - felt, anchor pin

2шт.

16

L35567

CAP

RETAINER - seal

2шт.

17

D83163

WASHER

- special, anchor pin

2шт.

18

N9103

RING, SNAP

RETAINING RING - anchor pin

2шт.

19

A13127

WASHER

RETAINER - guide pin

4шт.

20

D82771

WASHER

- guide pin

1шт.

21

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

N9764

CYLINDER BLOCK

CYLINDER ASSEMBLY - brake, Includes: Ref. 23 - 28

1шт.

23

A12924

SCREW,7/16" - 20

- bleeder, brake

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

25

A14995

SPRING

- piston return

1шт.

26

A15000

PISTON ASSY.

PISTON - cylinder

2шт.

L33783

KIT

- cylinder repair, Includes: Ref. 27 & 28

1шт.

27

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

28

NSS

NOT SOLD SEPARAT

SEAL - cylinder ends

2шт.

29

A12926

BOLT

- fitting to cylinder, special

1шт.

30

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

-, Serial Range: bolt-fitting

1шт.

31

N9107

CONNECTOR, ELEC

FITTING - swivel, inlet

1шт.

32

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - swivel, Serial Range: fitting-cylinder

1шт.

N9104

SHOE

AND LINING - brake, upper and lower

2шт.

33

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

34

NSS

NOT SOLD SEPARAT

LINING - brake, see kit N9109 below

1шт.

N9109

LINING

KIT - lining, 4 shoes, completes one axle

1шт.
