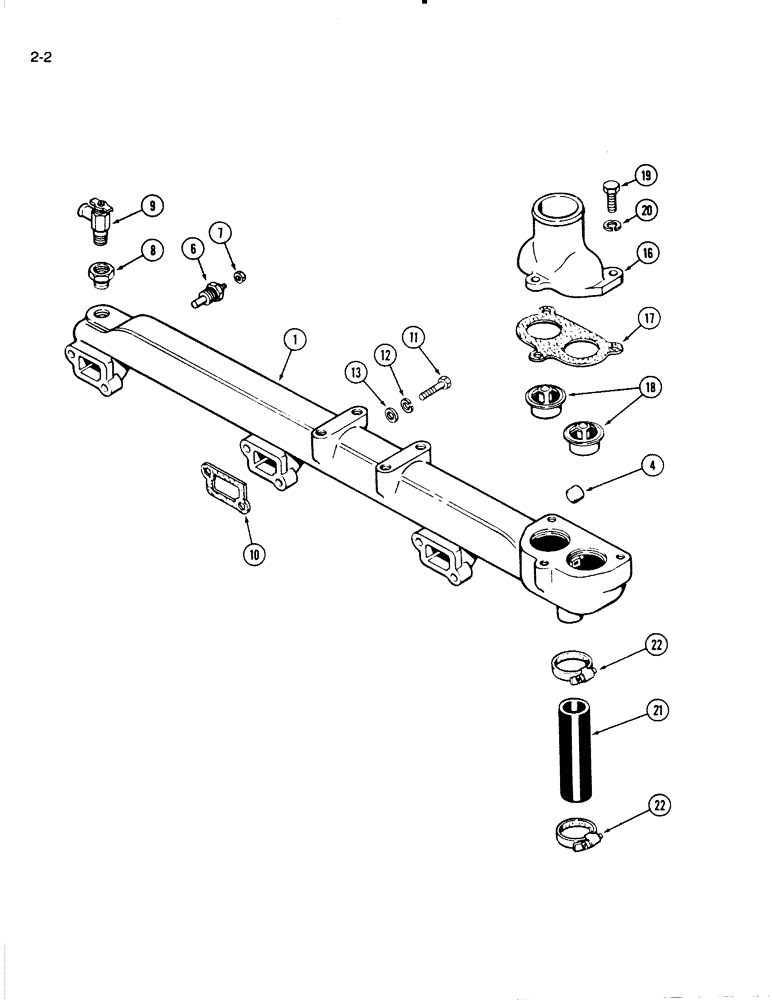

Запчасти Case W18B (2-02) - WATER MANIFOLD AND THERMOSTAT, 504BD AND 504BDT ENGINE (02) - ENGINE

1

A152742

MANIFOLD

- water

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

1шт.

6

L56217

UNIT

- sending, engine temperature

1шт.

1/2"-14 Dryreal pipethread

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10-32

1шт.

8

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

9

A16764

VALVE

- water shutoff

1шт.

10

A166147

GASKET

- manifold to head (Replaces A58637)

3шт.

11

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

12

492-11038

LOCK WASHER,3/8"

6шт.

13

195-25

WASHER,3/8"

6шт.

16

A58638

HOUSING

- thermostat

1шт.

17

A166148

GASKET

- housing to manifold (Replaces A58639)

1шт.

18

A57641

THERMOSTAT

- 180 Degree F

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

20

492-11038

LOCK WASHER,3/8"

3шт.

21

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump, 1-1/4 ID x 5-5/16 inch

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - adj, 13/16 - 1-3/4 inch diameter

2шт.
