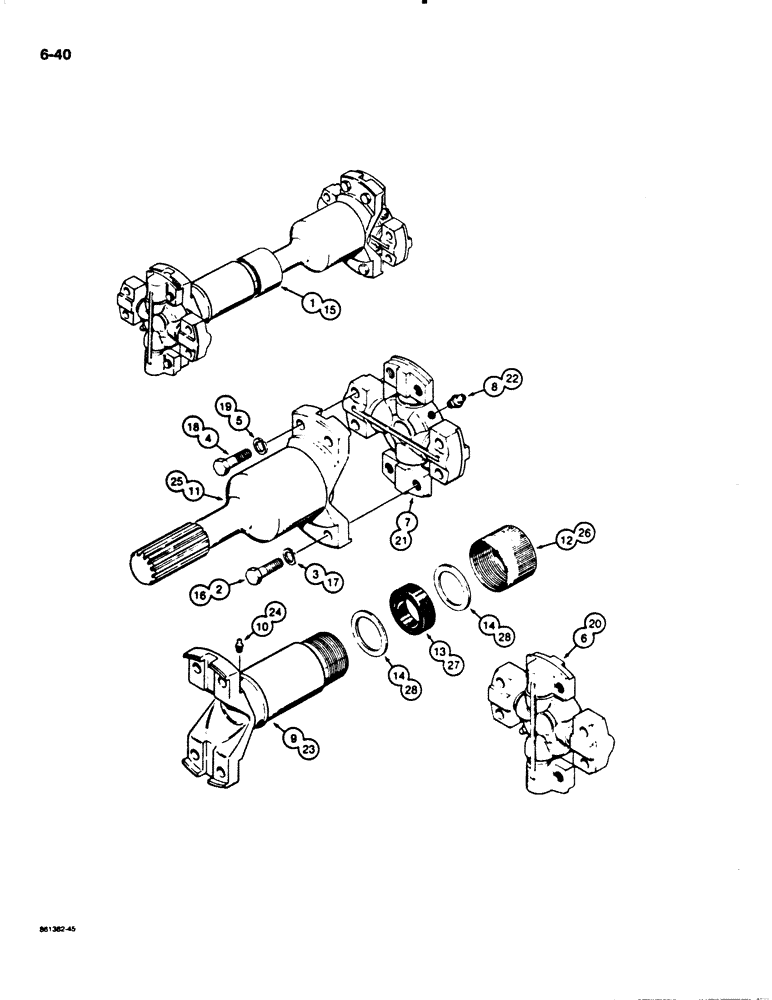

Запчасти Case W18B (6-40) - FRONT AND REAR AXLE DRIVE SHAFTS TRANSMISSION END (06) - POWER TRAIN

1

L47132

SHAFT

DRIVE SHAFT ASSEMBLY - front transmission end, all models, Includes: Ref. 2 - 14

1шт.

2

25772R1

BOLT,Hex, 3/8" - 24 x 1", Gr 8

- special, front

8шт.

3

192-161

LOCK WASHER,3/8"

WASHER, LOCK, , Front 3/8"

8шт.

4

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8" - 24 NF x 2", front

8шт.

5

192-161

LOCK WASHER,3/8"

WASHER, LOCK, , Front 3/8"

8шт.

6

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, front, Includes: Ref. 7 & 8

2шт.

7

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, front

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, front

1шт.

9

L33623

YOKE

AND TUBE - drive shaft, front

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, front

1шт.

11

L33625

YOKE

- splined end, front

1шт.

L33624

CAP

KIT - dust, drive shaft, front, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft, front

1шт.

13

L33948

WASHER

- felt, front

1шт.

14

L33627

WASHER

- metal, felt retaining, front

2шт.

15

L47133

SHAFT

DRIVE SHAFT ASSEMBLY - rear axle, W18B only, Includes: Ref. 16 - 28

1шт.

15

L73833

SHAFT

DRIVE SHAFT ASSEMBLY - rear axle, W20C only, Includes: Ref. 16 - 28

1шт.

16

25772R1

BOLT,Hex, 3/8" - 24 x 1", Gr 8

- special, rear axle drive shaft

8шт.

17

192-161

LOCK WASHER,3/8"

WASHER, LOCK, , Rear 3/8"

8шт.

18

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8" - 24 NF x 2", rear

8шт.

19

192-161

LOCK WASHER,3/8"

WASHER, LOCK, , Rear 3/8"

8шт.

20

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, rear

2шт.

21

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, rear

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, rear

1шт.

23

L32424

TUBE

YOKE AND TUBE - drive shaft, rear

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, rear

1шт.

25

L33630

YOKE

- splined end, W18B only, rear

1шт.

25

D77488

FORK

YOKE - splined end, W20C only, rear

1шт.

L32425

CAP

KIT - dust, drive shaft, rear, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft, rear

1шт.

27

L33948

WASHER

- felt, rear

1шт.

28

L31779

WASHER

- metal, felt retaining, rear

2шт.
