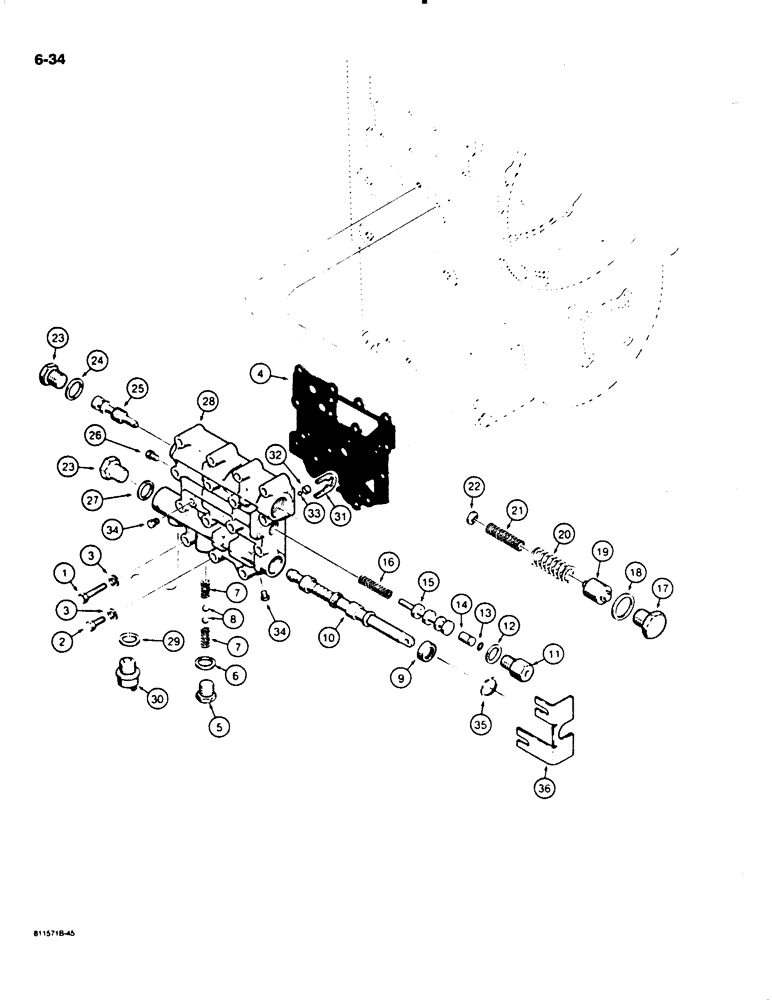

Запчасти Case W18B (6-34) - TRANSMISSION, TRANSMISSION CONTROL VALVE (06) - POWER TRAIN

L100803

TRANSMISSION

ASSEMBLY - complete for W18B, Allison No. 6885698, parts list Figures 6-14 through 6-34, Includes: Ref. 1 - 36

1шт.

L100804

TRANSMISSION

ASSEMBLY - complete for W20C, Allison No. 23010700, parts list Figures 6-14 through 6-34, no longer available, order L126396 transmission below, Includes: Ref. 1 - 36

1шт.

L113717

TRANSMISSION

ASSEMBLY - complete for W20C, Allison No. 23019621, parts list Figures 6-14 through 6-34, no longer available, order L126396 transmission below, Includes: Ref. 1 - 36

1шт.

L126396

TRANSMISSION

ASSEMBLY - complete for W20C, Twin Disc No. N66536, parts list Figures 6-14 through 6-34, Includes: Ref. 1 - 36

1шт.

1

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

15шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

3

92-6

LOCK WASHER,3/8"

16шт.

4

L31187

GASKET

-, Serial Range: valve-housing

1шт.

N7315

VALVE

- transmission control, Includes: Ref. 5 - 35

1шт.

5

L31048

PLUG

- lower

1шт.

6

L31034

WASHER

GASKET - trimmer valve plug

1шт.

7

N7317

SPRING

- detent

2шт.

8

211-13

BALL,1/2" Dia

- detent 1/2" Dia

2шт.

9

D72773

SEAL,19.05mm ID x 35.08mm OD x 7.26mm Thk

OIL SEAL - spool

1шт.

10

L36061

VALVE

SPOOL - valve

1шт.

11

L31030

PLUG

- clutch cutoff valve

1шт.

The part that goes into the end of this plug is the clutch cutout cylinder P/N L117120.

1шт.

12

L31034

WASHER

GASKET - plug

1шт.

13

A12666

O-RING,0.359" ID x 0.73"

SEAL - clutch cutoff valve

1шт.

14

L31025

PLUG

- clutch cutoff valve

1шт.

15

D72775

VALVE

- clutch cutoff

1шт.

16

L31169

SPRING

- clutch cutoff valve

1шт.

17

L31044

PLUG

- valve

1шт.

18

L31043

GASKET

- trimmer valve plug

1шт.

19

D51472

PLUG

- trimmer valve

1шт.

20

L31183

SPRING

- trimmer valve

1шт.

21

L35241

SPRING

- regulator valve

1шт.

22

L32743

RETAINER

- spring

1шт.

23

L31045

PLUG

- regulator valve

2шт.

24

L31016

GASKET

- plug

1шт.

25

N6388

VALVE

- regulator

1шт.

26

221-661

PLUG,Hex Hd, 1/8"-27

- valve

1шт.

27

L31016

GASKET

- plug

1шт.

28

L36060

BODY

HOUSING - valve, no longer available, order N8794 housing, N6388 regulator valve, item 25, and N8795 snap ring, item 35

1шт.

28

N8794

HOUSING

- valve

1шт.

29

D72772

SEALING WASHER

GASKET - seal

1шт.

30

REF

INSTRUCTION

SWITCH - neutral start, not part of transmission, see Figure 4-028, items 29 and 45, and Figure 4-044, item 2

1шт.

31

L31040

STOP

- valve

1шт.

32

L31046

PLUG

- ball retainer

1шт.

33

L31019

BALL

- valve

1шт.

34

221-661

PLUG,Hex Hd, 1/8"-27

- valve

2шт.

35

N8795

RING, SNAP

SNAP RING - seal retainer

1шт.

36

L111460

BRACKET

- spool seal retainer

1шт.
