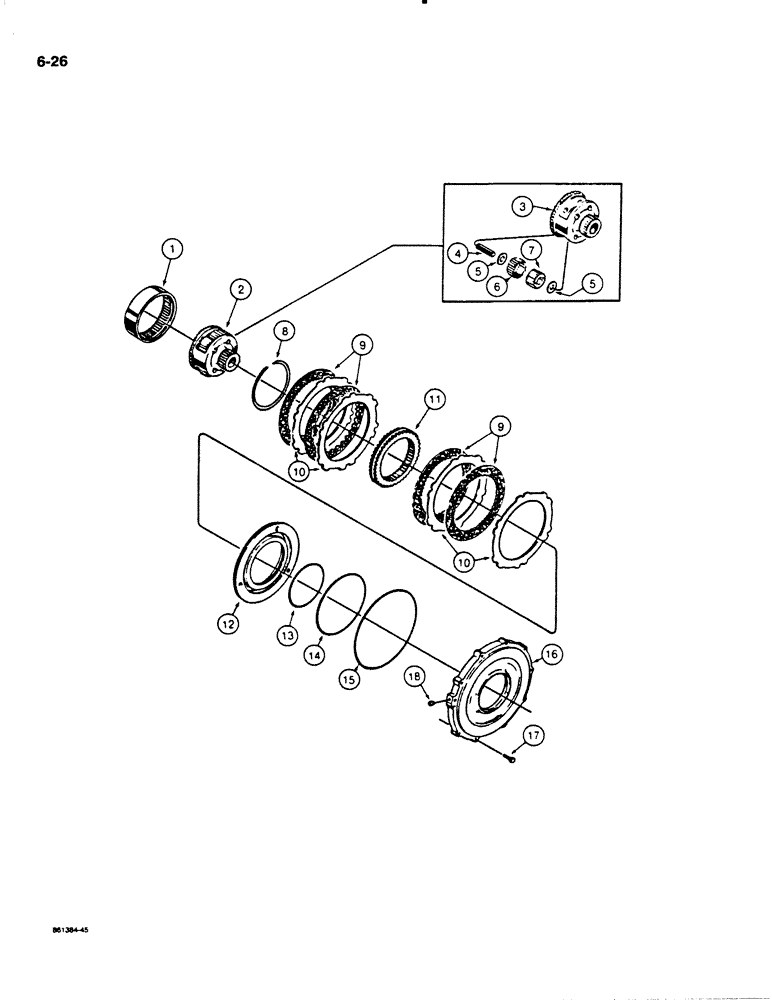

Запчасти Case W18B (6-26) - TRANSMISSION, FORWARD CLUTCH AND PLANETARY (06) - POWER TRAIN

L100803

TRANSMISSION

ASSEMBLY - complete for W18B, Allison No. 6885698, parts list Figures 6-14 through 6-34, Includes: Ref. 1 - 18

1шт.

L100804

TRANSMISSION

ASSEMBLY - complete for W20C, Allison No. 23010700, parts list Figures 6-14 through 6-34, no longer available, order L126396 transmission below, Includes: Ref. 1 - 18

1шт.

L113717

TRANSMISSION

ASSEMBLY - complete for W20C, Allison No. 23019621, parts list Figures 6-14 through 6-34, no longer available, order L126396 transmission below, Includes: Ref. 1 - 18

1шт.

L126396

TRANSMISSION

ASSEMBLY - complete for W20C, Twin Disc No. N66536, parts list Figures 6-14 through 6-34, Includes: Ref. 1 - 18

1шт.

1

A12712

GEAR

- ring

1шт.

2

L35533

CARRIER

ASSEMBLY - forward clutch planetary, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - forward clutch planetary

1шт.

4

A12705

SPINDLE

- pinion

4шт.

5

A12700

WASHER

THRUST WASHER - pinion set

8шт.

6

A12659

NEEDLE

ROLLER - planetary pinion

88шт.

7

L35993

GEAR

PINION SET - planetary, matched set of 4

1шт.

8

A12687

RING

SNAP RING - retaining

1шт.

9

N7022

PLATE

- clutch, internal spline

4шт.

10

L33958

PLATE

- clutch, external spline

4шт.

11

N6384

GEAR

RING GEAR - forward clutch

1шт.

12

N6399

PISTON

- forward clutch

1шт.

13

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

- small

1шт.

14

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

- medium

1шт.

15

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

- large

1шт.

16

L33977

HOUSING

- forward clutch piston

1шт.

17

121-225

BOLT,Hex, Lock, 3/8"-16 x 1 3/4"

- hex head, 3/8" - 16 NC x 1-3/4"

10шт.

18

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.
