(6-22) - TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNITS, AND FRONT COVERS

Запчасти Case W18B (6-22) - TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNITS, AND FRONT COVERS (06) - POWER TRAIN

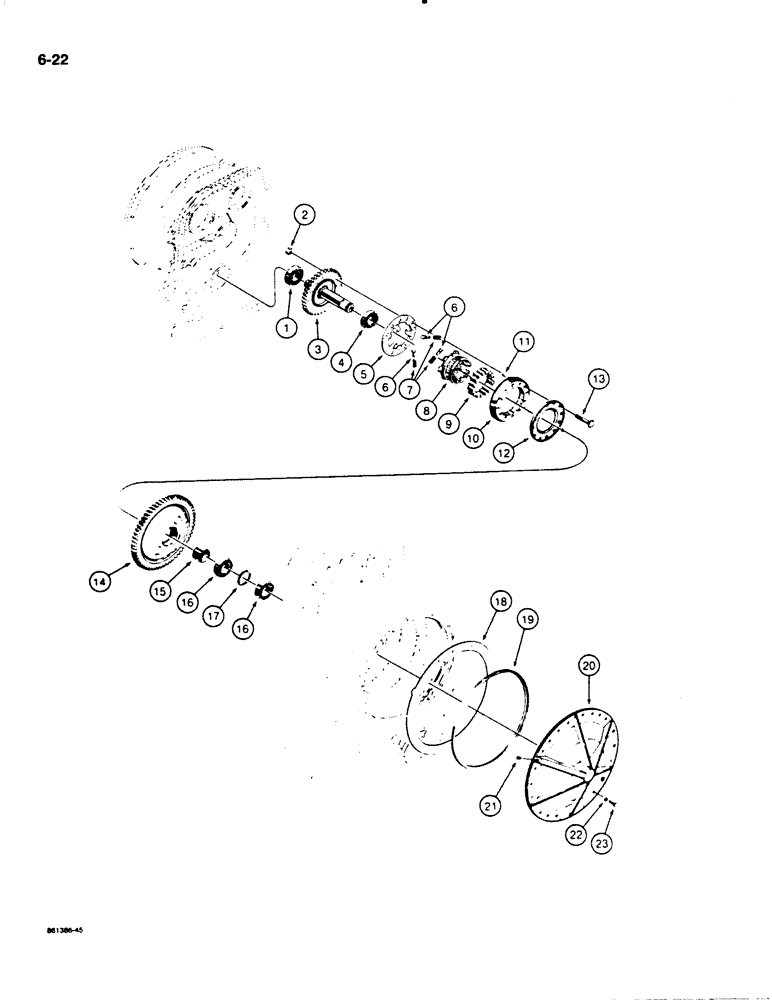

Схема запчастей Case W18B - (6-22) - TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNITS, AND FRONT COVERS (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L100803

TRANSMISSION

ASSEMBLY - complete for W18B, Allison No. 6885698, parts list Figures 6-14 through 6-34, Includes: Ref. 1 - 23

1шт.

L100804

TRANSMISSION

ASSEMBLY - complete for W20C, Allison No. 23010700, parts list Figures 6-14 through 6-34, no longer available, order L126396 transmission below, Includes: Ref. 1 - 23

1шт.

L113717

TRANSMISSION

ASSEMBLY - complete for W20C, Allison No. 23019621, parts list Figures 6-14 through 6-34, no longer available, order L126396 transmission below, Includes: Ref. 1 - 23

1шт.

L126396

TRANSMISSION

ASSEMBLY - complete for W20C, Twin Disc No. N66536, parts list Figures 6-14 through 6-34, Includes: Ref. 1 - 23

1шт.

1

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- gear and shaft

1шт.

2

L31163

SPECIAL NUT

- hex, lock, 3/8" - 24 NF, special

1шт.

3

L35508

GEAR

DRIVEN GEAR AND SHAFT ASSEMBLY - second turbine

1шт.

4

D47573

BALL BEARING

- shaft

1шт.

L35003

KIT

- free wheel clutch

1шт.

5

L33962

PLATE

- retaining

1шт.

6

D47644

PIN

- spring positioning

3шт.

7

D48863

SPRING

- plate

3шт.

8

L33963

NEEDLE BEARING CAGE

CAGE - freewheel roller

1шт.

9

L31161

ROLLER

- freewheel

15шт.

N6397

CAM

ASSEMBLY - freewheel

1шт.

10

NSS

NOT SOLD SEPARAT

CAM - freewheel

1шт.

11

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

1шт.

12

D47454

RESERVOIR

PLATE - bolt retainer

1шт.

13

D47455

SQUARE BOLT

- special

12шт.

14

D47456

GEAR

- first turbine, used on W18B transmissions and L113717 and L126396 W20C transmissions

1шт.

14

D77491

GEAR

- first turbine, used on L100804 W20C transmissions only

1шт.

15

D48331

BUSHING

SPACER - bearing

1шт.

16

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- gear

2шт.

17

D47458

THRUST WASHER,36.58mm ID x 41.91mm OD x 1.32mm Thk

SPACER - bearing

1шт.

18

N7021

GASKET

- front cover

1шт.

19

N9008

SEALING RING

ING RING - bearing

1шт.

20

N6374

COVER

- rear

1шт.

21

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

1шт.

22

92-6

LOCK WASHER,3/8"

19шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

19шт.
