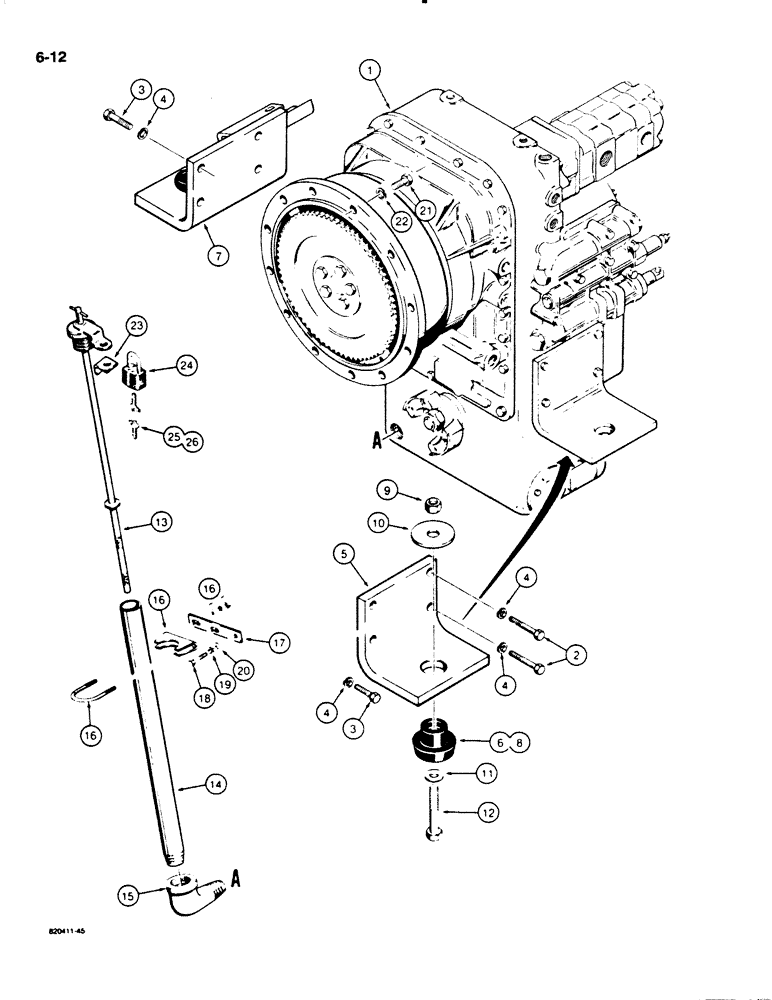

Запчасти Case W18B (6-12) - TRANSMISSION AND TRANSMISSION MOUNTS (06) - POWER TRAIN

1

L100803

TRANSMISSION

ASSEMBLY - complete for W18B, Allison No. 6885698, parts list Figures 6-14 through 6-34

1шт.

1

L100804

TRANSMISSION

ASSEMBLY - complete for W20C, Allison No. 23010700, parts list Figures 6-14 through 6-34, no longer available, order L126396 transmission below

1шт.

1

L113717

TRANSMISSION

ASSEMBLY - complete for W20C, Allison No. 23019621, parts list Figures 6-14 through 6-34, no longer available, order L126396 transmission below

1шт.

1

L126396

TRANSMISSION

ASSEMBLY - complete for W20C, Twin Disc No. N66536, parts list Figures 6-14 through 6-34

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

L115433

SUPPORT

BRACKET ASSEMBLY - right-hand, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET - transmission mount

1шт.

6

A19066

MOUNTING PARTS

MOUNT - transmission, rubber

1шт.

L115465

SUPPORT

BRACKET ASSEMBLY - left-hand, used with L61187 parking brake actuator, Includes: Ref. 7 & 8

1шт.

L104461

ANCHOR

BRACKET ASSEMBLY - left-hand, used with L48127 parking brake actuator, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - transmission mount

1шт.

8

A19066

MOUNTING PARTS

MOUNT - transmission, rubber

1шт.

9

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

10

195-2270

WASHER,13/16" x 3" x .238", HDN

- 5/8", special, shock mount retaining

2шт.

11

95-12

WASHER,3/4"

- flat, 3/4"

2шт.

12

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

13

L112387

DIPSTICK

- transmission oil gauge

1шт.

14

L53873

PIPE

- transmission filler

1шт.

15

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- 90 degree, 1-1/4" NPT

1шт.

16

L14262

CLAMP

U-BOLT AND HARDWARE - transmission filler pipe

1шт.

17

L72533

BRACKET

-, Serial Range: clamp-transmission

1шт.

18

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

1шт.

19

92-7

LOCK WASHER,7/16"

1шт.

20

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

22

92-6

LOCK WASHER,3/8"

12шт.

23

L55049

SUPPORT

BRACKET - locking, if used

1шт.

24

D93753

PADLOCK

- includes keys, if used

1шт.

25

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

26

R29555

KEY

- for Master padlock only, if used

2шт.
