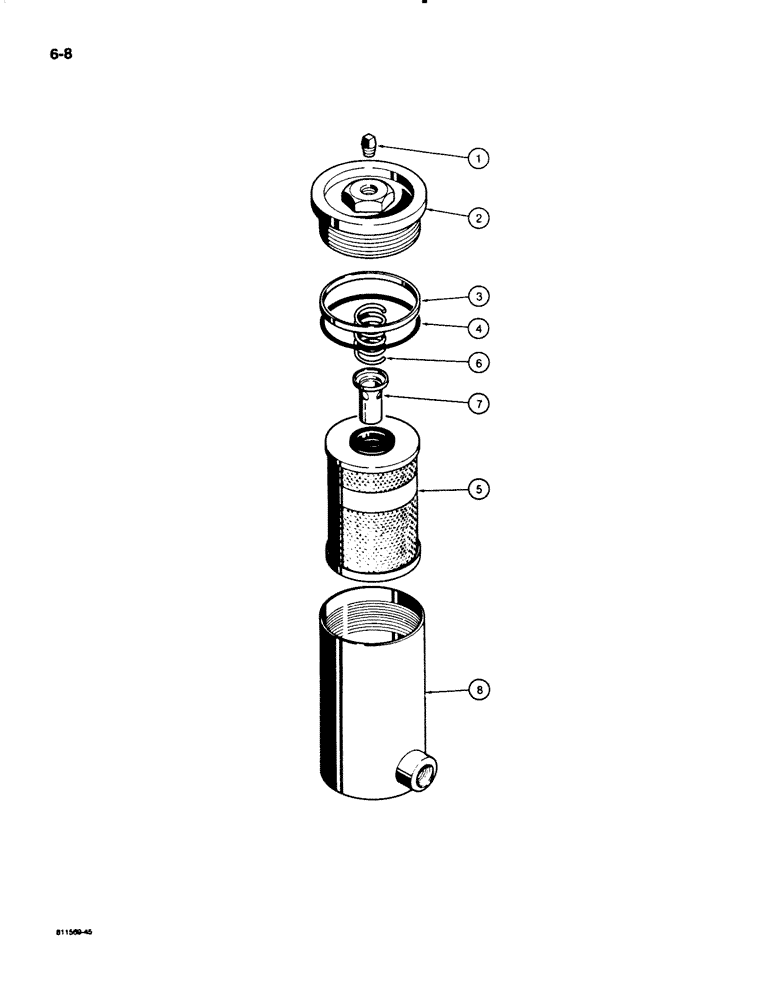

Запчасти Case W18B (6-08) - G100001 HORIZONTAL TRANSMISSION OIL FILTER (06) - POWER TRAIN

G100001

FILTER, ENGINE OIL

FILTER ASSEMBLY - transmission oil, Includes: Ref. 1 - 8

1шт.

1

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT, if used

1шт.

2

D31214

CAP

- filter

1шт.

A61234

HYDRAULIC OIL FILTER

ELEMENT REPLACEMENT KIT - transmission oil filter

1шт.

3

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Cap seal

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- filter

1шт.

5

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

6

D31212

SPRING

- retaining, relief valve

1шт.

7

D37207

VALVE

RELIEF VALVE - filter

1шт.

8

G100002

TUBE,7.89" L

BODY - filter

1шт.
