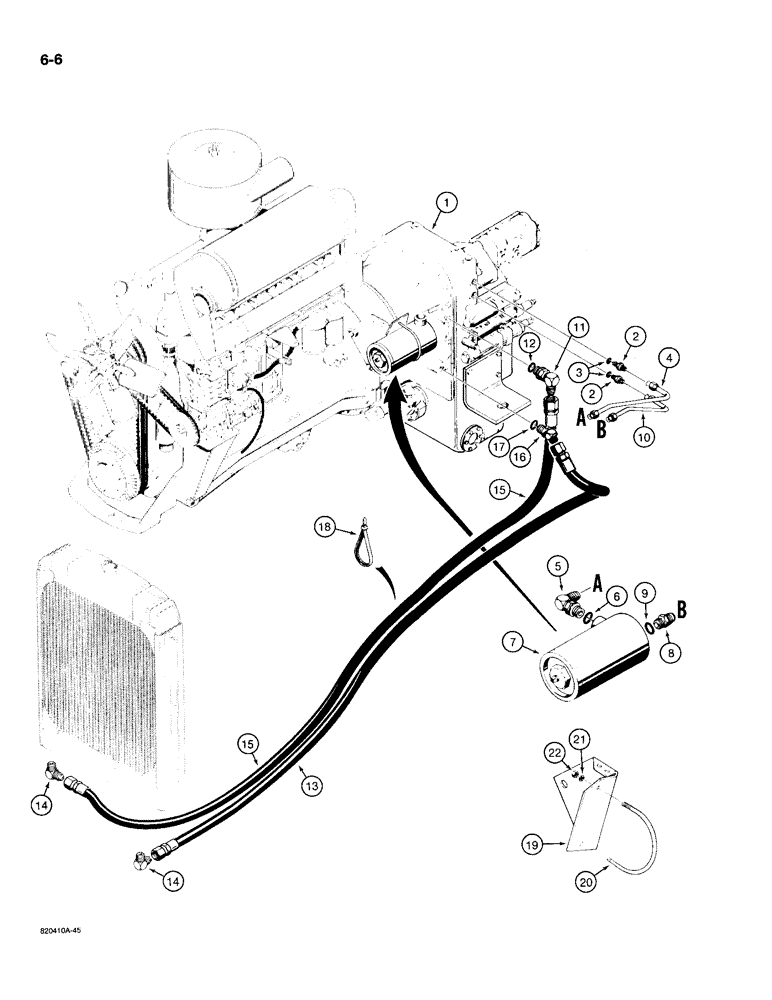

Запчасти Case W18B (6-06) - TRANSMISSION HYDRAULIC CIRCUIT WITH HORIZONTAL FILTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
TRANSMISSION ASSEMBLY - complete, see Figure 6-12 for transmission options
1шт.
2
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - male, straight, Incl. Ref. 3
2шт.
3
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- adapter
1шт.
4
L52974
TUBE
- supply, transmission to oil filter
1шт.
5
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
90º, adjustable, Incl. Ref. 6
1шт.
6
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- elbow
1шт.
7
G100001
FILTER, ENGINE OIL
FILTER - transmission oil, parts list Figure 6-08
1шт.
See Figure 6-10 for models with vertically mounted transmission oil filter.
1шт.
8
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - male, straight, Incl. Ref. 9
1шт.
9
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- adapter
1шт.
10
L52978
TUBE
- return, oil, Serial Range: filter-transmission
1шт.
11
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
90º, adjustable, Incl. Ref. 12
1шт.
12
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- elbow
1шт.
13
L106003
HOSE,15.87 mm ID x 1727.00 mm, SAE 100R1 Type A
- 68" (1727 mm) long
1шт.
14
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- 90 degree
2шт.
15
L106002
HOSE,15.87 mm ID x 2134.00 mm, SAE 100R1 Type A
- 84" (2134 mm) long
1шт.
16
218-5138
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
- 45 degree, male, adjustable, Includes: Ref. 17
1шт.
17
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- elbow
1шт.
18
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
19
L101066
BRACKET
- filter mounting
1шт.
20
L77827
BOLT
U-BOLT - filter mounting
1шт.
21
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
22
25-104
NUT,1/4"-20, G5
2шт.
Выбрано товаров: 23
