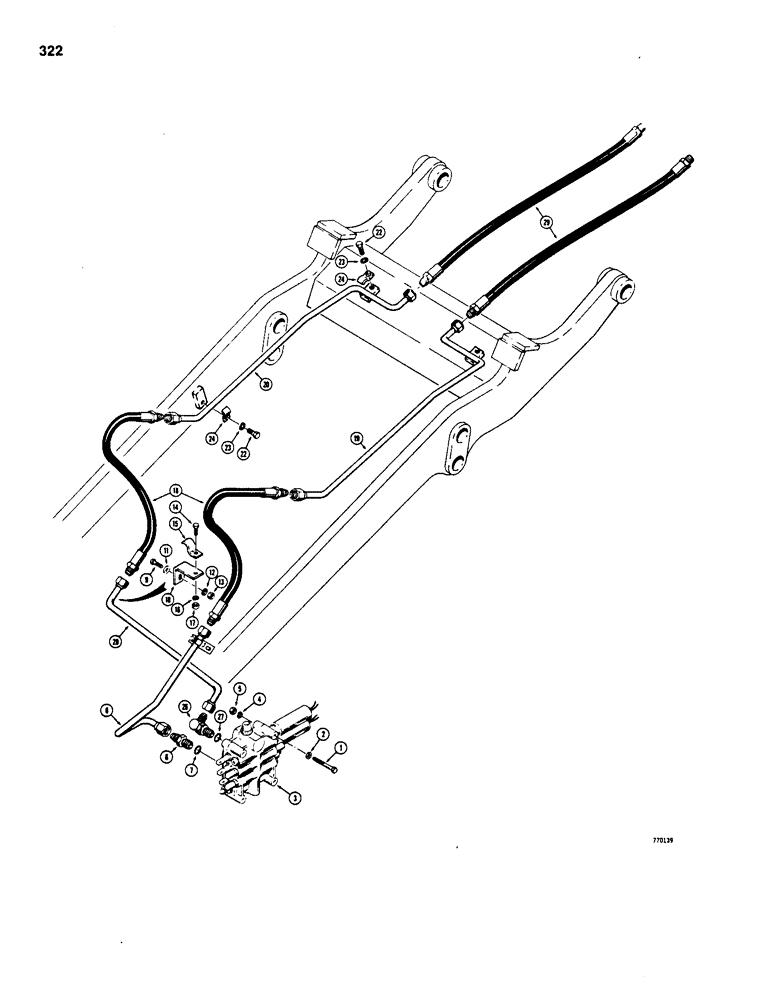

Запчасти Case W18 (322) - CLAM BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

2

95-8

WASHER,1/2"

flat 1/2"

3шт.

3

REF

INSTRUCTION

VALVE - loader, see Figure 332 for valve

1шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

8

L48796

PIPE,1" OD

TUBE - valve to closed end of clam cylinder, at valve

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

10

L106929

BRACKET

- clamp mounting

2шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

A12308

CLAMP

- tube

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

L47758

HOSE

- 37" (940 mm) long

2шт.

19

L107316

PIPE,0.75" OD

TUBE - valve to clam cylinder, right-hand

1шт.

20

L107314

PIPE

TUBE - valve to clam cylinder, left-hand

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

L25930

CLAMP

- tube

4шт.

26

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 27 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

28

L48720

FILTER ASSY,1" OD x 29.9, 9.7" L

TUBE - crossover

1шт.

If Unit with clam bucket has the external hyd. filter set up they need to use L107221 tube here (ref: #28) which looks different.

1шт.

29

L50719

HOSE

- 48" (1219 mm) long

2шт.
