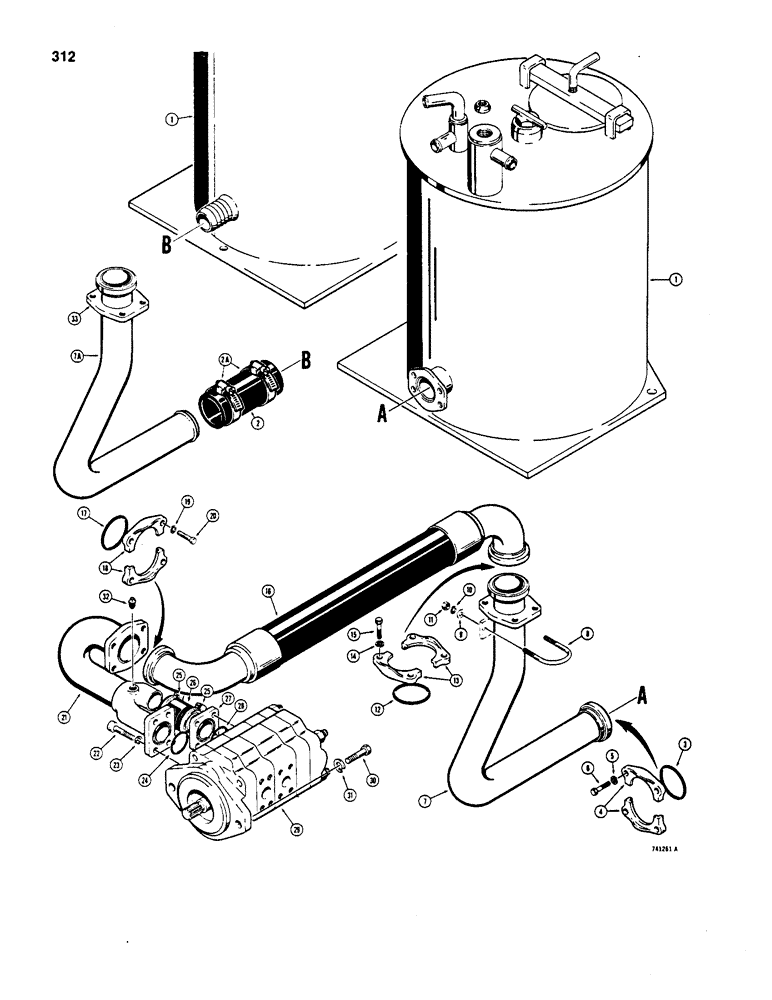

Запчасти Case W18 (312) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

REF

INSTRUCTION

TANK - hydraulic reservoir, see Figure 308 or 310 for the correct assembly and components

1шт.

2

L74461

HYDRAULIC HOSE,2.00" ID x 5.00", SAE 100R1 Type A

1шт.

2a

214-177

CLIP

CLAMP - hose

2шт.

3

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

1шт.

4

A14141

FLANGE

SPLIT FLANGE - tube

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

7

L52268

TUBE,15, 9.75" L

- suction, at tank, if used

1шт.

7a

L106632

TUBE ASSY.

TUBE - suction, if used

1шт.

8

L59227

BOLT (SPREADER)

U-BOLT - 3/8" - 24 NF x 2-15/16", if used

1шт.

8

A31210

BOLT

U-BOLT - 3/8" - 16 NC x 2-1/2", if used

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF, if used

2шт.

12

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

1шт.

13

A14141

FLANGE

SPLIT FLANGE - tube

2шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

16

L77995

HOSE

- 35-13/32" (889 mm) long

1шт.

17

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- split flange

1шт.

18

L14386

CLAMP

SPLIT FLANGE - tube

2шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

21

L47345

TUBE

- suction, models without auxiliary steering

1шт.

21

L59052

TUBE,10.19, 4.2" L

- suction, models with auxiliary steering, not shown

1шт.

22

61-816

HEX SOC SCREW,1/2"-13 x 1"

SCREW - hex, socket head, 1/2" - 13 NC x 1"

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

24

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- flange

1шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

26

A15675

INTAKE AIR HOSE,50.80 mm ID x 63.50 mm, SAE 20R1

HOSE 2.00" ID x 2.50", SAE 20R1 - Low pressure

1шт.

27

L17812

FLANGE

- tube

1шт.

28

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- flange

1шт.

29

L26895

PUMP

ASSEMBLY - hydraulic, parts list Figure 174

1шт.

L26895R

REMAN-HYD PUMP

W18, W20, W20B all CASE WHEEL LOADER (S/N 9123140 & AFTER) (NORTH AMERICA)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

30

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

32

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/2" NPT

1шт.

33

L51691

CLAMP

- flange, used with L106632 tube, ref 7A

1шт.
