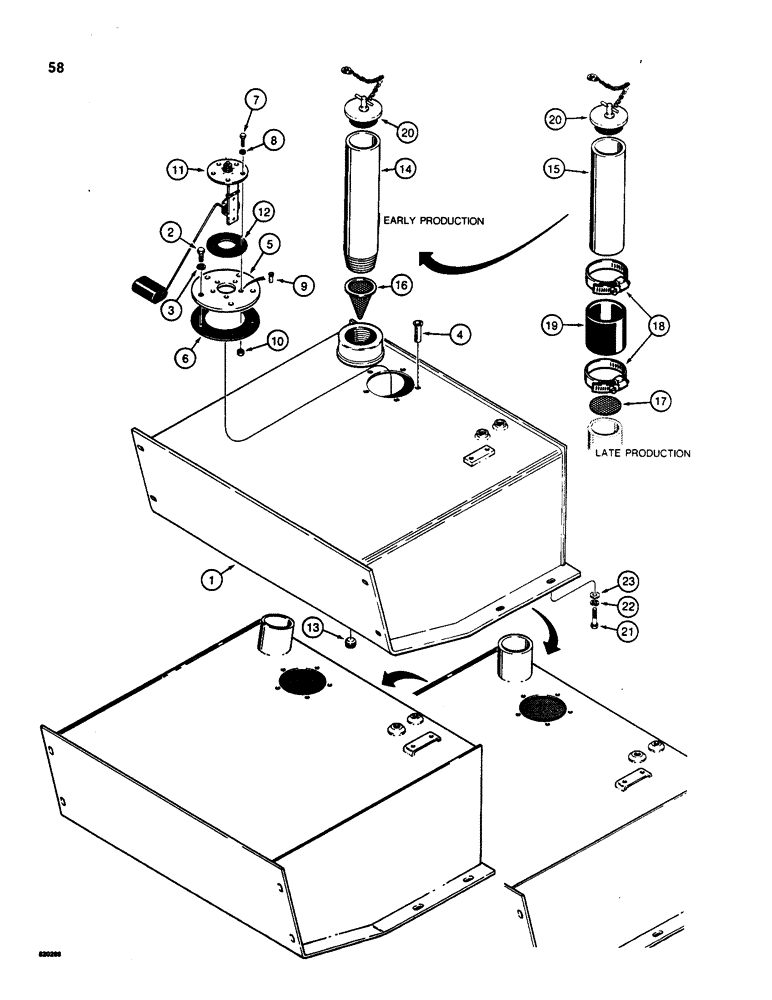

Запчасти Case W18 (058) - FUEL TANK AND SENDER (03) - FUEL SYSTEM

L74132

TANK

FUEL TANK ASSEMBLY - threaded filler tube, use L77455, L77398, L77270 and two 214-267, Includes: Ref. 1 - 13

1шт.

L77455

TANK

FUEL TANK ASSEMBLY - straight, smooth filler tube, uses L46867 fuel intake tube, Figure 56, Includes: Ref. 1 - 13

1шт.

L109288

TANK

FUEL TANK ASSEMBLY - angle, smooth filler tube, used L109268 fuel intake tube, Figure 56, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

FUEL TANK - tractor

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

4

L13176

NUT

- special, 1/4" - 20 NC

5шт.

5

L13193

LARGE PLATE

PLATE - hand hole cover, used with L74132 tank

1шт.

5

L77441

PLATE

- hand hole cover, used with L77455 and L109288 tank

1шт.

6

L79876

GASKET,4.57mm Thk

- hand hole cover

1шт.

7

163-23

SCREW,Hex, #10 - 32 x 3/4"

BOLT - hex head, No. 10 - 32 NF x 3/4", used with L13193 plate

5шт.

7

163-15

SCREW,Hex, #10 - 24 x 5/8"

BOLT - hex head, No. 10 - 24 NC x 5/8", used with L77441 plate

5шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, , Used with L13193 plate #10

5шт.

8

L77590

WASHER

- special, used with L77441 plate

5шт.

9

L13194

NUT

NUT - special, No. 10 - 32 NF, used with L13193 plate

5шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, , Used with L77441 plate #10-24, GB

5шт.

11

L110128

TRANSMITTER

SENDER - fuel tank

1шт.

12

A11822

GASKET

- fuel sender, if used

1шт.

13

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

1шт.

14

L53397

PIPE

- filler extension, used with L74132 fuel tank

1шт.

15

L77439

PIPE

- filler extension, used with L77455 and L109288 fuel tank

1шт.

16

L52650

STRAINER ELEMENT

SCREEN - fuel, used with L74132 fuel tank

1шт.

17

L77398

STRAINER ELEMENT

SCREEN - fuel, used with L77455 and L109288 fuel tank

1шт.

18

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

19

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

89 mm ID x 102 mm, SAE 30R2, Filler

1шт.

20

L74929

FILLER CAP

CAP, FILLER - fuel tank

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

22

92-8

LOCK WASHER,1/2"

8шт.

23

195-2061

WASHER,5/8" x 1 7/8" x .134"

- flat, 1/2"

8шт.
