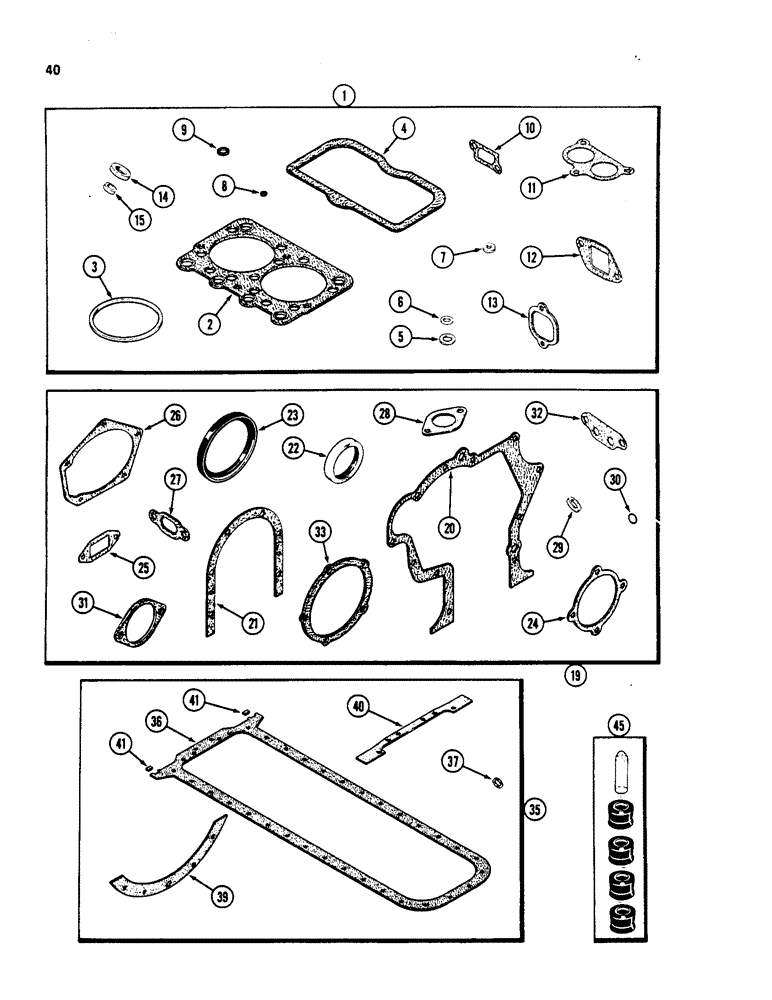

Запчасти Case W18 (040) - ENGINE GASKET KITS, 401BD AND 401BDT DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A42890

VALVE

GASKET KIT - valve grind, Includes: Ref. 2 - 15

1шт.

For complete engine overhaul order (1) A42890, (1) A44075 and (1) A152479.

1шт.

2

A62215

GASKET

- cylinder, Serial Range: head-block

3шт.

3

A34686

RING

- fire, cylinder head (Standard)

6шт.

4

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

5

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower

3шт.

6

A34133

GASKET

- breather tube, upper

3шт.

7

A23684

GASKET

GASKET - cover studs

6шт.

8

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube

3шт.

9

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake and exhaust valves (Ref 45)

12шт.

10

A58637

MANIFOLD GASKET

- water manifold

3шт.

11

A58639

GASKET

- thermostat housing

1шт.

12

A58662

MANIFOLD GASKET

- intake manifold

6шт.

13

A58895

GASKET

- exhaust manifold

6шт.

14

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle body

6шт.

15

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injector nozzle carbon stop

6шт.

19

A44075

GASKET KIT

- cylinder block (Replaces A42096) kit, Includes: Ref. 20 - 33

1шт.

For complete engine overhaul order (1) A42890, (1) A44075 and (1) A152479.

1шт.

20

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

21

A32830

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

22

A62049

OIL SEAL

- oil, crankshaft, front, cylinder block kit

1шт.

23

A62050

OIL SEAL

- oil, crankshaft, rear, cylinder block kit

1шт.

24

A58649

GASKET

- water pump to body, cylinder block kit

1шт.

25

A58646

GASKET

- water pump body, cylinder block kit

1шт.

26

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

27

A58670

GASKET

- oil cooler water opening, cylinder block kit

1шт.

28

A58680

OIL PAN GASKET SET

- oil cooler tube, cylinder block kit

1шт.

29

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block kit

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil pump, cylinder block kit

3шт.

31

A58617

GASKET

- (not used this application), cylinder block kit

1шт.

32

A58756

OIL PAN GASKET SET

- (not used this application), cylinder block kit

1шт.

33

A76656

GASKET

- (not used this application), cylinder block kit

1шт.

35

A152479

GASKET KIT

- oil pan (Replaces A46005), Includes: Ref. 36 - 41

1шт.

For complete engine overhaul order (1) A42890, (1) A44075 and (1) A152479.

1шт.

36

A150688

GASKET

- oil pan kit

1шт.

37

A27968

RING

- drain plug, oil pan kit

1шт.

39

A57966

GASKET

- transmission housing, lower, oil pan kit

1шт.

40

A150689

GASKET

- flywheel housing seal plate, oil pan kit

1шт.

41

A150690

OIL PAN GASKET SET

- oil pan corner tabs, kit

2шт.

45

M20614

SEAL KIT

SEAL KIT - valve (includes 4 seals and installation tool), oil pan

3шт.
