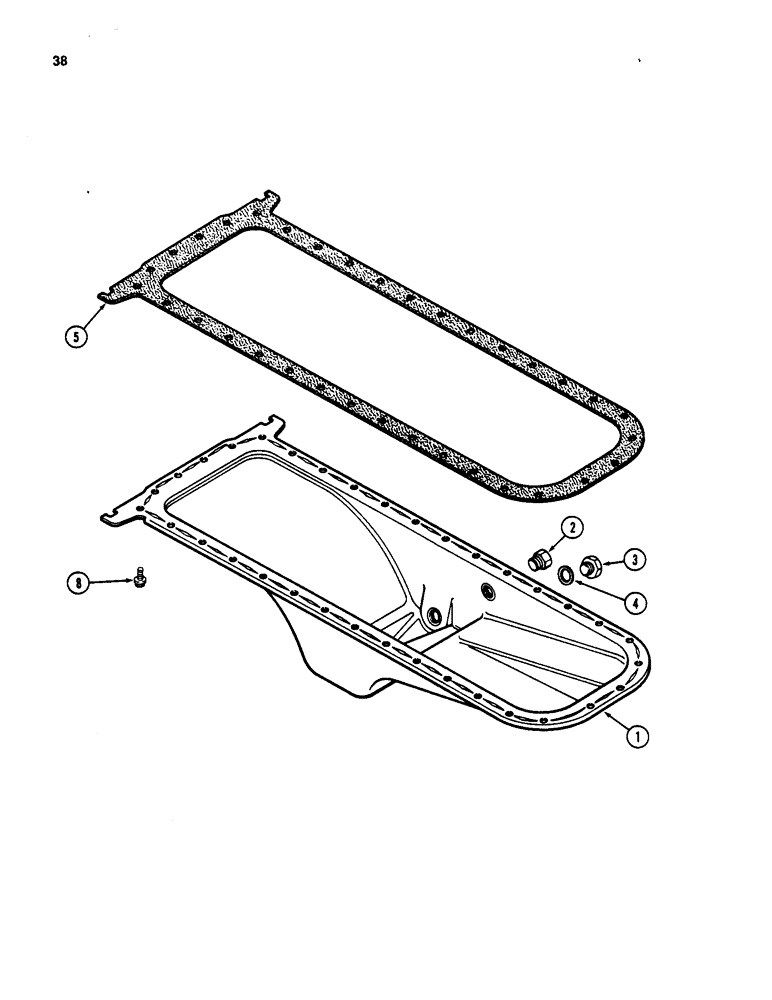

Запчасти Case W18 (038) - OIL PAN, 401BD AND 401BDT DIESEL ENGINE (02) - ENGINE

1

A62410

PAN

ASSEMBLY - oil, engine

1шт.

2

221-664

PLUG,Hex Hd, 1/2"-14

- 1/2" PT, hex head

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug (copper)

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A152479) Figure 40)

1шт.

8

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - 3/8 x 7/8" NC hex Sems (Replaces 13-614 and 92-6)

32шт.
