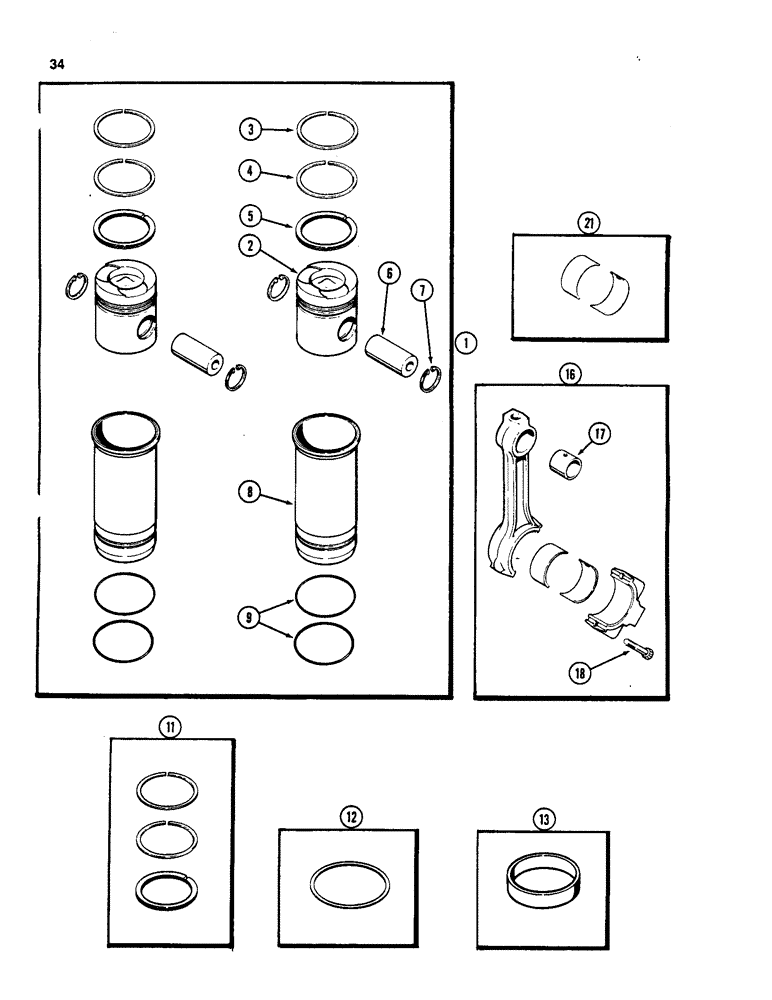

Запчасти Case W18 (034) - PISTON ASSEMBLY, 401BD AND 401BDT DIESEL ENGINE (02) - ENGINE

1

A148135

PISTON

ASSEMBLY - cylinder (Set of 2) (Replaces A44069), Includes Ref. 2 - 9

3шт.

2

A65127

PISTON

- cylinder 4-1/8" (104.8 mm) diameter

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order Ref 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order Ref 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - 3rd groove (Order Ref 11)

2шт.

6

A24487

PISTON PIN

PIN - wrist, piston

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , wrist pin 1.50", Int, #150

4шт.

8

A148089

SLEEVE

- cylinder liner

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

- sleeve packing

4шт.

11

A41967

RING, PISTON

RING KIT - piston re-ring (Set of 1)

6шт.

12

A150222

SHIM

- sleeve, 0.010" (0.254 mm) (Repair Only)

1шт.

12

A150307

SHIM KIT

- sleeve, 0.005" (0.127 mm) (Repair Only)

1шт.

13

A150325

BUSHING,118.8mm ID x 122.38mm OD x 30.15mm L

- sleeve (Repair Only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not Shown)

1шт.

16

A62952

ROD

ASSEMBLY - connecting, Includes: Ref. 17 & 18

6шт.

17

A21069

BUSHING,37.63mm ID x 43mm OD x 34.8mm L

- piston, connecting rods

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap (1/2" NF x 2-3/16")

2шт.

21

A43173

BEARING LINER

LINER SET - connecting rod bearing, (Standard) (Set of 2)

6шт.

21

A43174

BEARING LINER

LINER SET - connecting rod bearing, (Set of 2) -0.002" (0.051 mm)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

LINER SET - connecting rod bearing, (Set of 2) -0.010" (-0.254 mm)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

LINER SET - connecting rod bearing, (Set of 2) -0.020" (-0.508 mm)

6шт.

21

A43177

BEARING LINER

LINER SET - connecting rod bearing, (Set of 2) -0.030" (-0.762 mm)

6шт.
