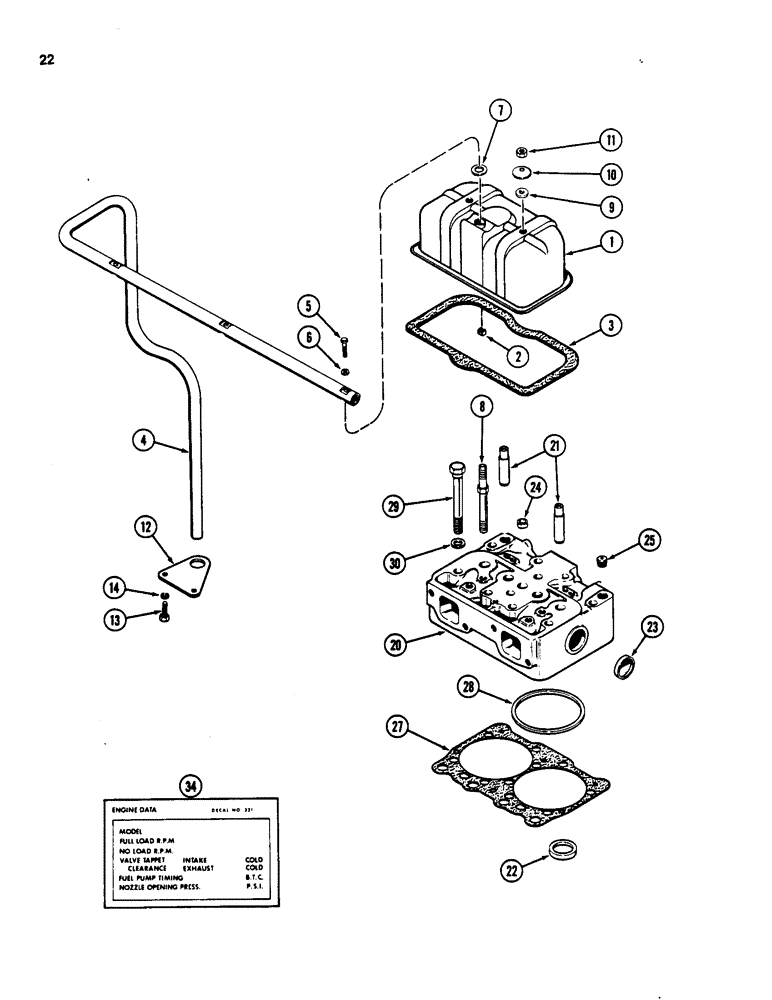

Запчасти Case W18 (022) - CYLINDER HEAD AND COVER, 401BD AND 401BDT DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" NC Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A62516

TUBE

- breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

Tube Hex, 1/4"-20 x 2 1/2", G5

3шт.

6

A34133

GASKET

- tube, upper

1шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- tube, lower

3шт.

8

A67121

STUD

- cover and rocker arm bracket (7/16" NC x 6")

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

- cover stud (Dome Type)

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" NC hex

6шт.

12

A58734

BRACKET

- breather tube (on oil pan)

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - bracket (3/8 x 1-1/2" NC hex, sems)

2шт.

14

195-25

WASHER,3/8"

- spacer, 3/8 x 13/16 x 1/16" (9.5 x 20.6 x 1.6 mm)

1шт.

20

A58885

CYLINDER

HEAD ASSEMBLY - cylinder (casting no. A58523), Includes: Ref. 21 - 24

3шт.

21

A41783

GUIDE

- intake and exhaust valves (Set of two)

4шт.

22

A58877

INSERT

- exhaust valve seat

2шт.

23

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" (41.3 mm) cup type

2шт.

24

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" (19.1 mm) cup type

3шт.

25

221-1843

PLUG

- 3/8" PT, hex socket head

6шт.

27

REF

INSTRUCTION

GASKET - cylinder head (See Page 41)

3шт.

28

A34686

RING

- fire (standard) (no color code)

6шт.

28

A34688

RING

- fire (oversize) (blue stripe color code)

6шт.

29

A76638

BOLT

- cylinder head to block (5/8" x 6-1/4" NC hex)

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

34

321-2319

DECAL

- engine data (on cylinder head cover)

1шт.
