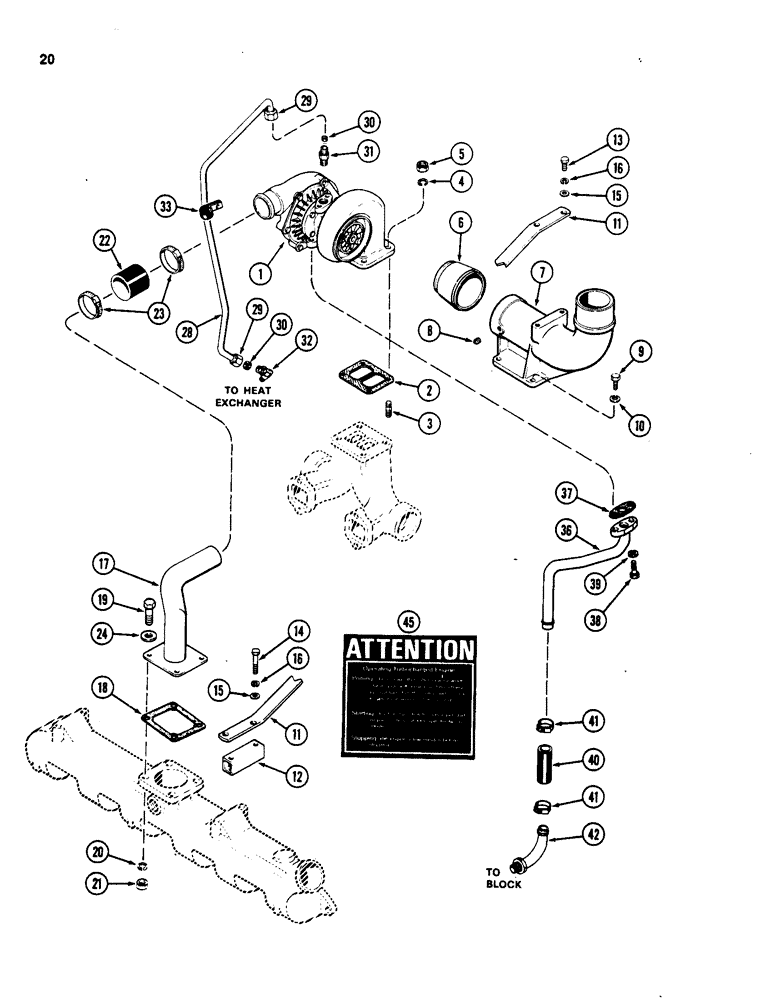

Запчасти Case W18 (020) - TURBOCHARGER SYSTEM, 401BDT DIESEL ENGINE, ALTITUDE COMPENSATING (02) - ENGINE

1

A44051

CORE-TURBOCHARGER

TURBOCHARGER ASSEMBLY - (Do not use this part number for ordering. This part number is to be used only in requesting return authority on used turbocharger to be returned for credit)

1шт.

1

A44052

TURBOCHARGER

TURBOCHARGER ASSEMBLY - (remanufactured)

1шт.

1

A48190

REMAN-TURBOCHARGER

Remanufactured, TURBOCHARGER

1шт.

1

A48189

CORE-TURBOCHARGER

Return Number

1шт.

1

A66770

NO LONGER SERVICED

TURBOCHARGER ASSEMBLY - new

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET -, Serial Range: turbo-manifold

1шт.

3

G11204

STUD

STUD - turbo to manifold (38" NC x 1-7/16")

4шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf

4шт.

6

A65554

TUBE

CONNECTOR - exhaust, Serial Range: elbow-turbo

1шт.

7

A61265

ELBOW

ELBOW - exhaust

1шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - elbow (1/4" PT, square head)

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Elbow Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

11

A61944

BRACE

BRACE - exhaust elbow to intake manifold

1шт.

12

A67057

SPACER

SPACER - brace

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Brace to elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - brace to spacer (3/8 x 2-1/2" NC hex) (Grade 5)

2шт.

15

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 1/16" (11.1 x 25.4 x 1.6 mm)

4шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

17

A150450

ELBOW

ELBOW - turbo to intake manifold (Replaces A77242)

1шт.

18

A58910

GASKET

GASKET - elbow

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - elbow to manifold (3/8 x 1-1/2" NC hex) (Grade 5)

4шт.

20

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

NUT - 3/8" NC hex

4шт.

22

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

Elbow to turbo (Replaces A58894)

1шт.

23

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, (33.3 to 57.2 mm) #28, 1.31/2.25 Type F Worm

2шт.

24

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 1/16" (11.1 x 25.4 x 1.6 mm)

4шт.

28

A62478

TUBE

TUBE ASSEMBLY - oil supply, Includes: Ref. 29 & 30

1шт.

29

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

2шт.

30

222-154

SLEEVE,3/8" Tube

SLEEVE - (for ) 3/8" Tube

2шт.

31

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - tube (to turbocharger)

1шт.

32

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - tube (to heat exchanger)

1шт.

33

49845

CLAMP

CLIP - oil supply tube

1шт.

36

A62518

TUBE

TUBE - oil drain

1шт.

37

A58892

GASKET,1.59mm Thk

GASKET - drain tube

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Tube to turbo Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

39

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

40

A58893

HOSE

HOSE - drain tube, 1/4" ID x 3-1/2" (6.4 ID x 88.9 mm)

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.2 to 44.5 mm)

2шт.

42

A58897

FITTING

FITTING -, Serial Range: hose-block

1шт.

45

321-3766

DECAL

DECAL - turbo protection

1шт.
