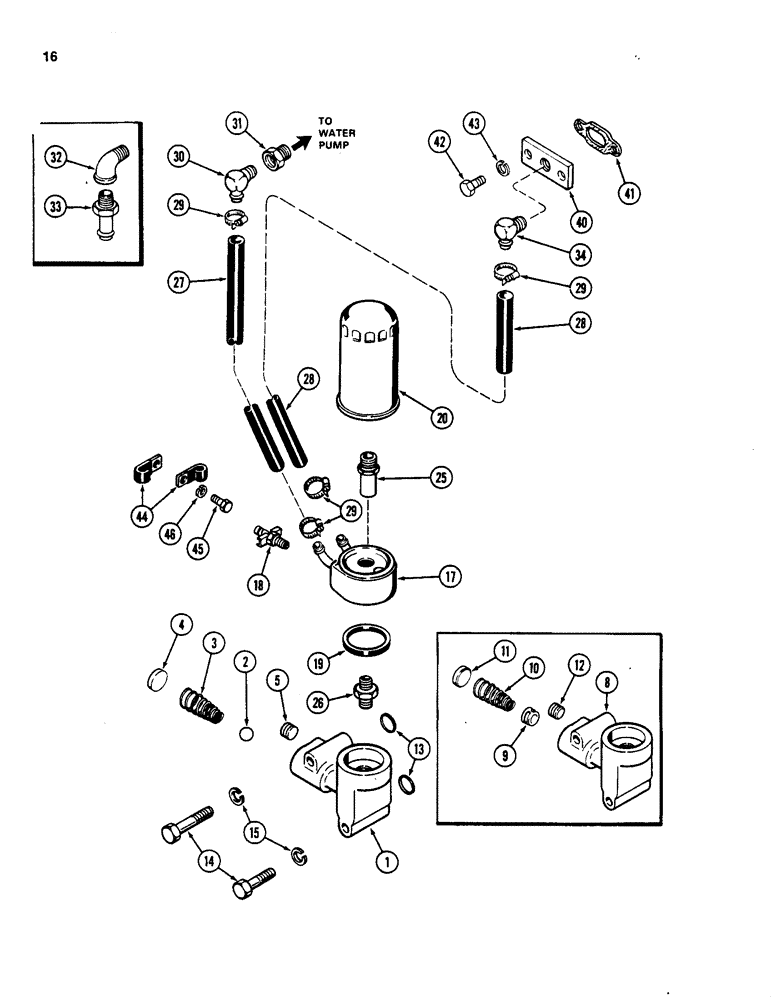

Запчасти Case W18 (016) - OIL FILTER AND COOLER, 401BD AND 401BDT DIESEL ENGINE (02) - ENGINE

A154788

BASE

ASSEMBLY - oil filter and cooler (Replaces A65849) (Engine serial number 1030161 and after), Includes: Ref.1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter and cooler

1шт.

2

211-17

BALL,3/4" Dia

- relief valve, 3/4" (19.1 mm) diameter

1шт.

3

A146897

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" (31.8 mm) cup type

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, hex socket head

1шт.

A65849

BASE

ASSEMBLY - oil filter and cooler (Used prior to engine serial number 1030161) (Order A154788), Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

BASE - filter and cooler (Order A154788) (uses A58831 adapter)

1шт.

9

A21090

VALVE

- relief

1шт.

10

A58669

SPRING

- relief valve

1шт.

11

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-1/4" cup type (31.8 mm)

1шт.

12

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, hex socket head

1шт.

13

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block

2шт.

14

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Base to block Hex, 1/2"-13 x 3 3/4", G5

2шт.

15

195-33

WASHER,1/2"

- 1/2 x 1 x 1/8" (12.7 x 25.4 x 3.2 mm)

2шт.

17

A66295

COOLER

- oil

1шт.

18

217-107

VALVE

- drain (discard 1/8" pipe plug in cooler)

1шт.

19

A153806

SEALING RING

- oil, cooler to base (Replaces A66410)

1шт.

20

A75294

ENGINE OIL FILTER

FILTER - oil (Uses A66992 adapter)

1шт.

25

A66992

ADAPTER

- upper (1" - 12 NF external threads and 3/4"-16 NF internal threads)

1шт.

26

A58831

ADAPTER

- lower (1"- 8 NC external threads and 3/4" - 16 NF external threads)

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 15" (381 mm) long (Order A42610 and, Serial Range: cut-length)

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 49" (1224.6 mm) long (Order A42610 and, Serial Range: cut-length)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1" OD x 50 feet (15.9 mm ID x 25.4 mm OD x 15.2 mm)

1шт.

29

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.3 to 27 mm)

2шт.

30

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90 degree, with barb end (1/2" PT male thread) (Used with 40 amp alternator)

1шт.

31

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- (to water pump) (1/2" PT female thread and 3/4" male thread) (Used with 40 amp alternator)

1шт.

32

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (male and female threads) (Used with 65 amp alternator) 90º, 3/4"-14, NPT

1шт.

33

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - straight with barb end (3/4" PT male thread) (Used with 65 amp alternator)

1шт.

34

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90 degree with barb end (For inlet hose)

1шт.

40

A66993

FLANGE

- inlet hose elbow (To block)

1шт.

41

A58670

GASKET

- flange

1шт.

42

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Flange to block Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

43

92-8

LOCK WASHER,1/2"

2шт.

44

49885

CLAMP

CLIP - hose

2шт.

45

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.
