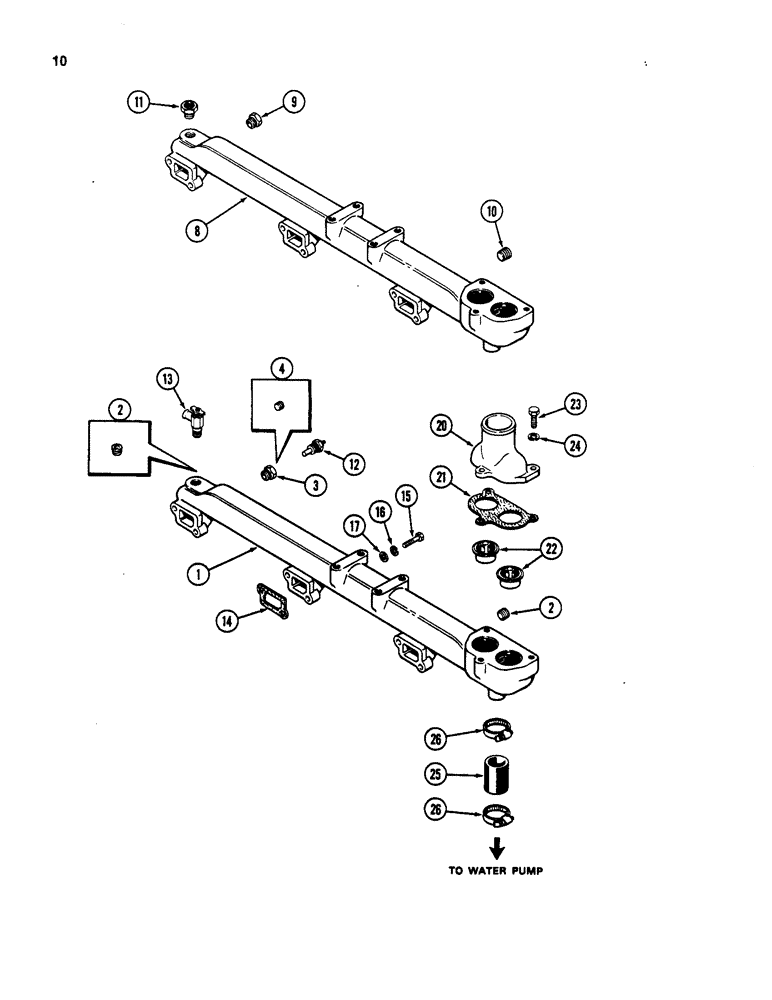

Запчасти Case W18 (010) - WATER MANIFOLD AND THERMOSTAT, 401BD AND 401BDT DIESEL ENGINE (02) - ENGINE

1

A152742

MANIFOLD

ASSEMBLY - water (Replaces A44088), Start Serial: 10155349

1шт.

2

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, hex socket

2шт.

3

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - hex reducing, 1/2" PT to 3/8" PT

1шт.

4

221-1843

PLUG

- 3/8" PT, hex socket

1шт.

8

A44088

MANIFOLD

- water (Order A152742 and Ref 2, 3 and 4), Serial Range: -10155349

1шт.

9

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer, 3/4" to 1/2"

1шт.

10

221-845

PLUG,Hex Soc, 3/4"-14

- (3/4" PT, hex socket head)

1шт.

11

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing, 1/2" to 3/8" (12.7 to 9.5 mm)

1шт.

12

L56217

UNIT

- temperature sending (1/2" PT)

1шт.

13

A16764

VALVE

- water shut-off (3/8" PT)

1шт.

14

A58637

MANIFOLD GASKET

- manifold

3шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold Hex, 3/8"-16 x 2", G5

6шт.

16

92-6

LOCK WASHER,3/8"

6шт.

17

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.6 mm)

6шт.

20

A58638

HOUSING

- thermostat

1шт.

21

A58639

GASKET

- thermostat housing

1шт.

22

A57641

THERMOSTAT

- water, 180 degree F (82 degree C)

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

24

92-6

LOCK WASHER,3/8"

3шт.

25

A58640

HOSE

- water by-pass, 1-1/4" ID x 2-3/8" (31.8 ID x 60.3 mm)

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.2 to 44.5 mm)

2шт.
