Запчасти Case W18 (302) - DECALS, EARLY PRODUCTION (09) - CHASSIS

L33606

DECAL

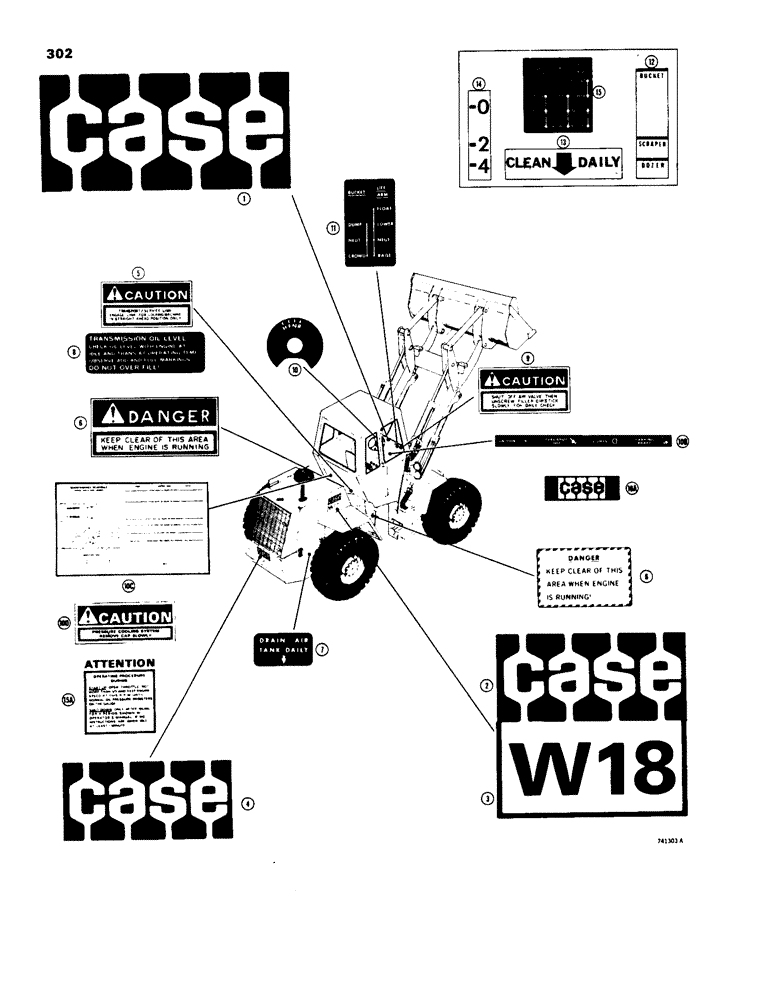

KIT - decal, W18 Loader, Includes: Ref. 1 - 12

1шт.

1

321-1445

DECAL

- "CASE" (Front frame above access cover) Reflective (When stock is exhausted, order 321-2429 non-reflective decal for service

1шт.

1

321-2429

EMBLEM

DECAL - "CASE" (Front frame above access cover) Non-reflective

1шт.

2

321-1443

DECAL

- "CASE" over "W18" (Hood side panels) Reflective (When stock is exhausted, order 321-1574 Non-reflective decal for service

2шт.

2

321-1574

DECAL

- "CASE" over "W18" (Hood side panels) Non-reflective

2шт.

3

321-1797

DECAL

- "W18" (Hood sides)

2шт.

4

321-1442

DECAL

- "CASE" (Below grille between rear lights) Reflective (When stock is exhausted, order 321-2427 Non-reflective decal for service)

1шт.

4

321-2427

EMBLEM

DECAL - "CASE" (Below grille between rear lights) Non-reflective

1шт.

5

321-1078

DECAL

- safety link (R.H. rear frame at link)

1шт.

6

321-1198

DECAL

- warning

2шт.

7

321-1077

DECAL

- air drain location

1шт.

8

321-1980

DECAL

- transmission oil level

1шт.

9

321-1074

DECAL

- hydraulic tank daily check

1шт.

10

321-1047

DECAL

- transmission shift control (Steering column)

1шт.

10a

L57685

DECAL

- "CASE", instrument panel

1шт.

10b

321-2613

DECAL

- instrument panel cluster (If used)

1шт.

10c

321-2779

DECAL

- Maintenance Chart

1шт.

10d

321-3061

DECAL

- warning, pressure cap

1шт.

11

321-1075

DECAL

- loader control (Upper R.H. rear front frame)

1шт.

12

321-1663

DECAL

- bucket positioning

1шт.

13

A18673

DECAL

- clean daily

1шт.

14

S81109

DECAL

- clam opening

1шт.

15

321-2090

DECAL

- loader control, machines with Drott bucket

1шт.

16

321-1981

DECAL

- turbo charger

1шт.
