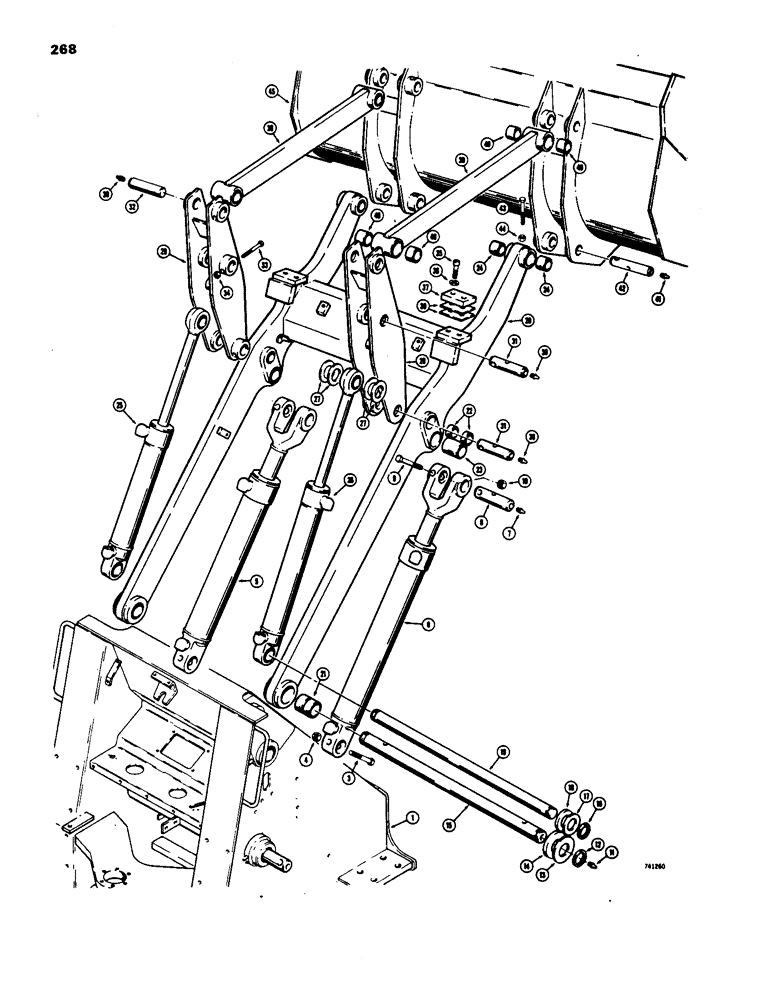

Запчасти Case W18 (268) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS

1

REF

INSTRUCTION

FRONT FRAME ASSEMBLY - articulated loader (See figure 241 for bushings and proper frame)

1шт.

3

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

HHCS - 5/8" - 11 NC x 5-1/2", Grade 8

2шт.

4

131-64

LOCK NUT,5/8"-11, GC

NUT - hex., lock (5/8" - 11 NC)

2шт.

5

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. lift (See Figures 294 and 296)

1шт.

6

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. lift (See Figures 294 and 296)

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

8

L15725

PIN

- mounting, lift cylinder to lift arm frame

2шт.

9

26-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

HHCS - 5/8" - 11 NC x 5"

2шт.

10

131-64

LOCK NUT,5/8"-11, GC

NUT - hex., lock (5/8" - 11 NC)

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

12

L16016

RING

- pin retaining, lift frame

2шт.

13

L47559

SHIM

WASHER - special (.312" thick)

1шт.

14

L47699

SHIM

WASHER - special (.375" thick)

1шт.

15

L47566

SHAFT

- lift frame pivot

1шт.

16

L16015

RING

- pin retaining, tilt cylinder closed end

2шт.

17

L47700

WASHER

- special (.312" thick)

1шт.

18

L47701

WASHER

- special (.375" thick)

1шт.

19

L47565

SHAFT

- tilt cylinder pivot

1шт.

L58537

ARM

FRAME ASSEMBLY - loader lift, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

21

L47560

BUSHING,76.45mm ID x 88.14mm OD x 88.9mm L

- lift, Serial Range: arm-chassis

2шт.

22

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- lift, Serial Range: arm-bellcrank

4шт.

23

L15802

BUSHING,63.75mm ID x 75.48mm OD x 89mm L

- lift arm to lift cylinder

2шт.

24

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- lift, Serial Range: arm-bucket

4шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. tilt (See Figures 298 and 299A)

1шт.

26

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. tilt (See Figures 298 and 299A)

1шт.

27

L45013

WASHER

- special, tilt, Serial Range: cylinder-bellcrank

1шт.

28

L47356

ARM ASSY.

BELLCRANK - bucket, R.H. (When stock is exhausted, order L53725 bellcrank for service)

1шт.

28

L53725

ARTICULATION

BELLCRANK - bucket, R.H.

1шт.

29

L47357

ARM ASSY.

BELLCRANK - bucket, L.H. (When stock is exhausted, order L53726 bellcrank for service)

1шт.

29

L53726

ARTICULATION

BELLCRANK - bucket, L.H.

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

31

L47563

PIN

- bellcrank to lift frame and tilt cylinder (When stock is exhausted, order L40421 pin for service)

4шт.

31

L40421

PIN,50.8mm OD x 202.44mm L

- bellcrank to lift frame and tilt cylinder

4шт.

32

L47562

PIN

- bellcrank to bucket link

2шт.

33

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

HHCS - l/2" - 13 NC x 5" (Grade 8)

4шт.

34

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

6шт.

35

61-824

HEX SOC SCREW,1/2"-13 x 1 1/2"

- hex. socket head (1/2" - 13 NC x 1-1/2")

8шт.

36

92-8

LOCK WASHER,1/2"

8шт.

37

L41558

BLOCK

- spacer (At bellcrank and lift frame) If used

4шт.

38

L14452

SHIM

- block

12шт.

39

L47561

LINK

- bucket, Includes: Ref. 40

2шт.

40

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- link

4шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

42

L15800

PIN,50.8mm OD x 274.32mm L

- loader arm and, Serial Range: link-bucket

4шт.

43

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

HHCS - 5/8" - 11 NC x 4-1/2"

4шт.

44

131-64

LOCK NUT,5/8"-11, GC

NUT - hex., lock (5/8" x 11 NC)

4шт.

45

REF

INSTRUCTION

BUCKET - loader (Parts list figures 271 and 273)

1шт.
