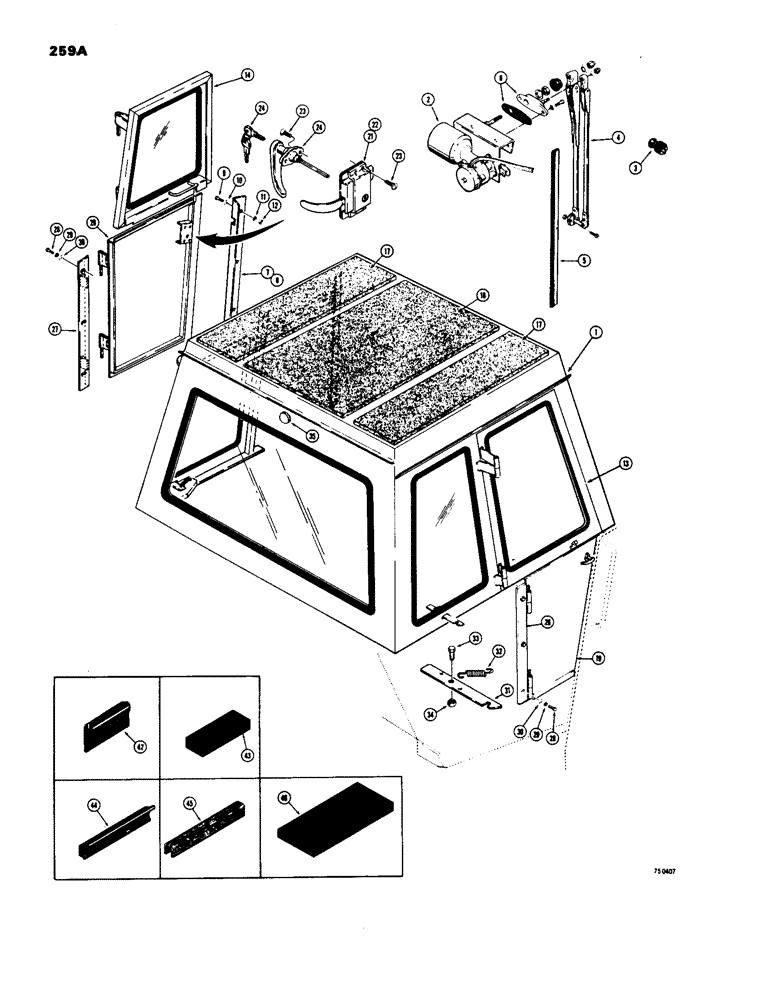

Запчасти Case W18 (259A) - L57831 OPERATORS CAB (09) - CHASSIS

L57831

CAB - ROPS (Machinery item) Sims #1000-347, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

L35259

WIPER MOTOR

MOTOR - wiper, has bullet terminals (Use F93455 motor and F63532 switch)

1шт.

2

F93455

MOTOR, ELECTRIC

MOTOR - wiper, has spade terminals

1шт.

3

L35743

SWITCH

- L35259 motor

1шт.

3

F63532

SWITCH

- F93455 motor

1шт.

4

L35260

ARM

- windshield wiper (20")

1шт.

5

L35261

BLADE

- windshield wiper (20")

1шт.

6

L35753

ADAPTER

ADAPTOR - double arm wiper

1шт.

7

D70406

STRIKER - lower, R.H. front

1шт.

8

D66500

STRIKER - lower, L.H. front

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

6шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

13

D66493

DOOR ASSY.

DOOR FRAME - upper, R.H.

1шт.

14

D66492

DOOR ASSY.

DOOR FRAME - upper, L.H.

1шт.

17

L35803

INSULATION - roof, R.H. and L.H. side

2шт.

18

L35806

INSULATION - roof, middle

1шт.

19

D66495

DOOR ASSY.

DOOR - lower, R.H.

1шт.

20

D66494

DOOR ASSY.

DOOR - lower, L.H.

1шт.

21

L35737

LATCH

- door, inside (R.H.)

1шт.

22

L35738

LATCH

- door, inside (L.H.)

1шт.

23

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self tapping (#10 x 3/4")

8шт.

24

D71372

HANDLE

ASSEMBLY - outside, with keys (replaces T42591), Includes: Ref. 25

2шт.

25

REF

INSTRUCTION

KEY - order from Sims Co. per number on key and handle

2шт.

26

D66497

BRACKET - hinge mounting, R.H.

1шт.

27

D66496

BRACKET - hinge mounting, L.H.

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

30

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

6шт.

31

L35747

LATCH

- door hold back

2шт.

32

L35748

SPRING

- door hold back

2шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

34

131-52

NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC) Zinc plated

2шт.

35

205-28

PLUG - rear window wiper hole

1шт.

36

D70582

MIRROR ASSEMBLY

1шт.

37

182-240

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

- pan head, slotted (5/16" - 18 NC x 1/2")

8шт.

42

L35798

RUBBER

- door, bottom (50 ft. roll)

1шт.

43

L35799

RUBBER

- self-adhesive, door gasket (50 ft. roll) 3/8" x 5/8"

1шт.

44

L35732

STRIP

WEATHER STRIP MATERIAL - 50 ft. roll

1шт.

45

L35759

WINDLACE MATERIAL - 50 ft. roll

1шт.

46

L35801

FOAM

RUBBER MOUNTING - 50 ft. roll

1шт.
