(258) - L50462 AND L50581 OPERATORS CAB, GLASS AND MOLDING

Запчасти Case W18 (258) - L50462 AND L50581 OPERATORS CAB, GLASS AND MOLDING (09) - CHASSIS

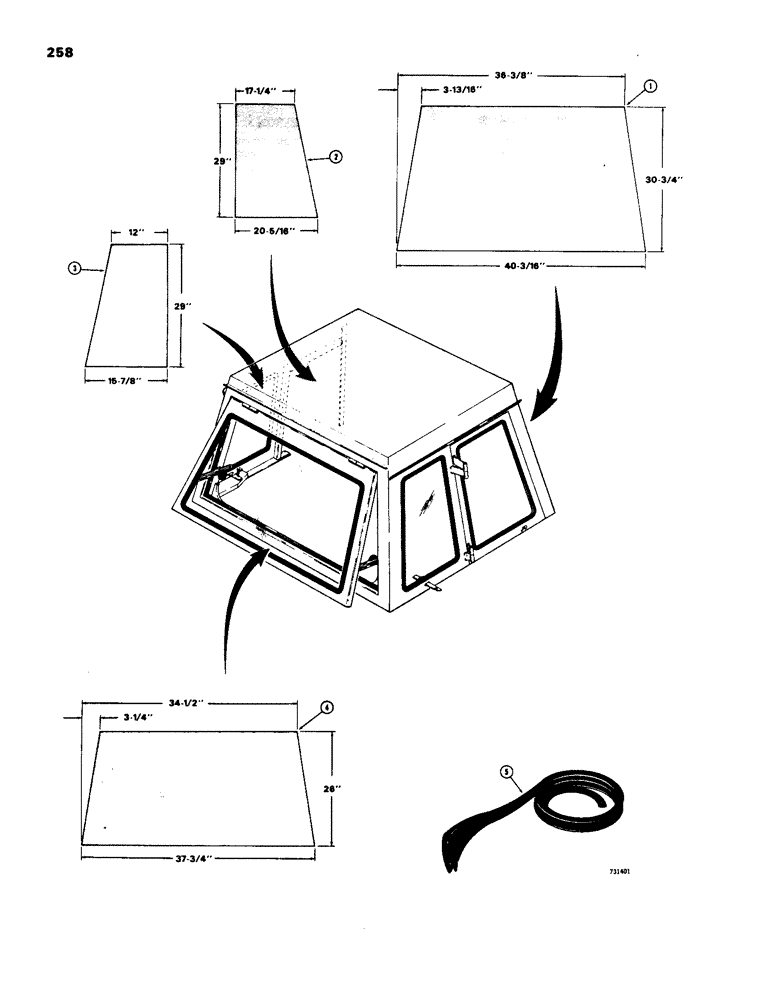

Схема запчастей Case W18 - (258) - L50462 AND L50581 OPERATORS CAB, GLASS AND MOLDING (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L50581

CAB - ROPS (Machinery item) Sims 1000-215

1шт.

L50462

CAB - all weather (Machinery item) Sims #1000-135, Includes: Ref. 1 - 4

1шт.

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - door, upper

2шт.

3

REF

INSTRUCTION

GLASS - side panel window

2шт.

4

REF

INSTRUCTION

GLASS - rear window

1шт.

5

L35717

GASKET

MOLDING MATERIAL - 50 ft. roll

1шт.
