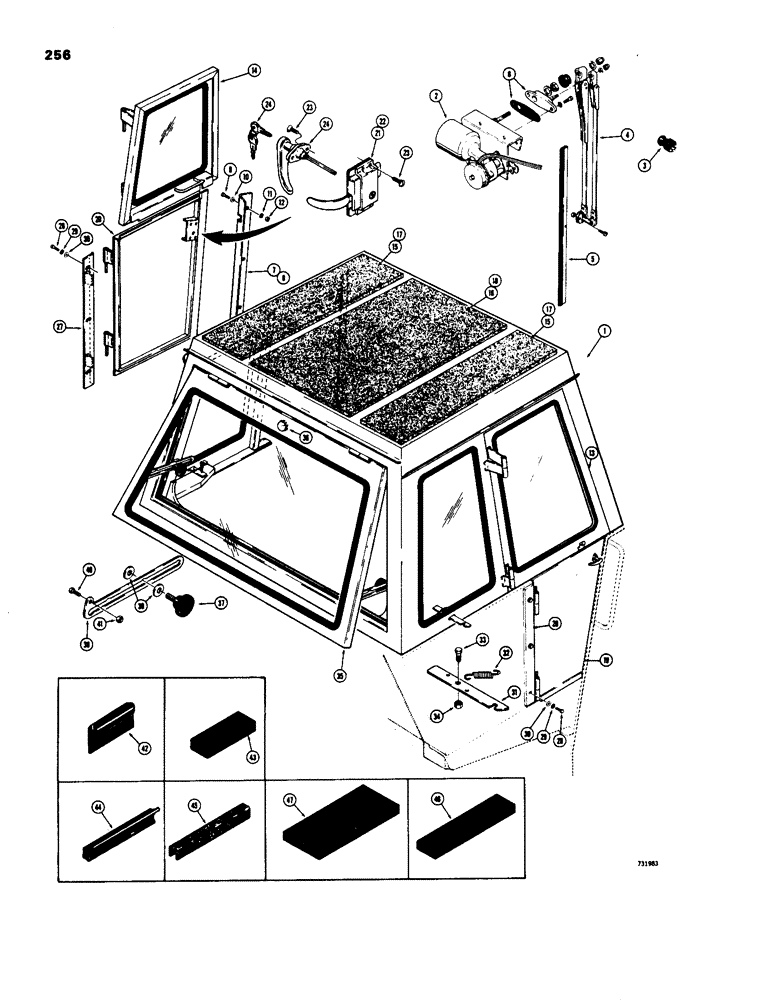

Запчасти Case W18 (256) - L50462 AND L50581 OPERATORS CAB, DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS

1

L50462

CAB - all weather (Machinery item) Sims #1000-135, Includes: Ref. 2 - 47

1шт.

1

L50581

CAB - ROPS (Machinery item) Sims #1000-215, Includes: Ref. 2 - 47

1шт.

2

L35259

WIPER MOTOR

MOTOR - wiper, has bullet terminals (Use F93455 motor and F63532 switch)

1шт.

2

F93455

MOTOR, ELECTRIC

MOTOR - wiper, has spade terminals

1шт.

3

L35743

SWITCH

- L35259 motor

1шт.

3

F63532

SWITCH

- F93455 motor

1шт.

4

L35260

ARM

- windshield wiper (20")

1шт.

5

L35261

BLADE

- windshield wiper (20")

1шт.

6

L35753

ADAPTER

- double arm wiper

1шт.

7

L35790

STRIKER - lower, R.H. front

1шт.

8

L35791

STRIKER - lower, L.H. front

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

6шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

13

L35792

DOOR

FRAME - upper, R.H.

1шт.

14

L35793

DOOR

FRAME - upper, L.H.

1шт.

15

L35794

INSULATION - roof, side (L50462 cab only)

1шт.

16

L35795

INSULATOR

INSULATION - roof, middle (L50462 cab only)

1шт.

17

L35803

INSULATION - roof, side (L50581 cab only)

1шт.

18

L35806

INSULATION - roof, middle (L50581 cab only)

1шт.

19

L35796

DOOR - lower, R.H.

1шт.

20

L35797

DOOR

- lower, L.H.

1шт.

21

L35738

LATCH

- door, inside (R.H.)

1шт.

22

L35737

LATCH

- door, inside (L.H.)

1шт.

23

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self-tapping (#10 x 3/4")

12шт.

24

T42591

HANDLE

ASSEMBLY - outside, with keys, Includes: Ref. 25

2шт.

25

REF

INSTRUCTION

KEY - order from Sims Co. per number on key and handle

2шт.

26

L35804

BRACKET - hinge mounting, R.H.

1шт.

27

L35805

BRACKET - hinge mounting, L.H.

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

30

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

6шт.

31

L35800

LATCH ASSY.

LATCH - door hold back

2шт.

32

L35748

SPRING

- door hold back

2шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

34

131-52

NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC) Zinc plated

2шт.

35

L35802

WINDOW FRAME - rear, slide out

1шт.

36

205-28

PLUG - rear window wiper hole

1шт.

37

L30087

KNOB

- rear window hold out

2шт.

38

T42594

BRACE

ARM - rear window hold out

2шт.

39

195-104

WASHER,3/8"

- flat, (Zinc plated) 3/8"

4шт.

40

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

41

86625061

NUT,1/4"-20, GB

NUT - hex., lock (1/4" - 20 NC) Zinc plated

2шт.

42

L35798

RUBBER

- door, bottom (50 ft. roll)

1шт.

43

L35799

RUBBER

- adhesive, door gasket (50 ft. roll) 3/8" x 5/8"

1шт.

44

L35732

STRIP

WEATHER STRIP MATERIAL - 50 ft. roll

1шт.

45

L35759

WINDLACE MATERIAL - 50 ft. roll

1шт.

46

L35789

RUBBER MOUNTING - 50 ft. roll (L50462 cab only)

1шт.

47

L35801

FOAM

RUBBER MOUNTING - 50 ft. roll (L50581 cab only)

1шт.
