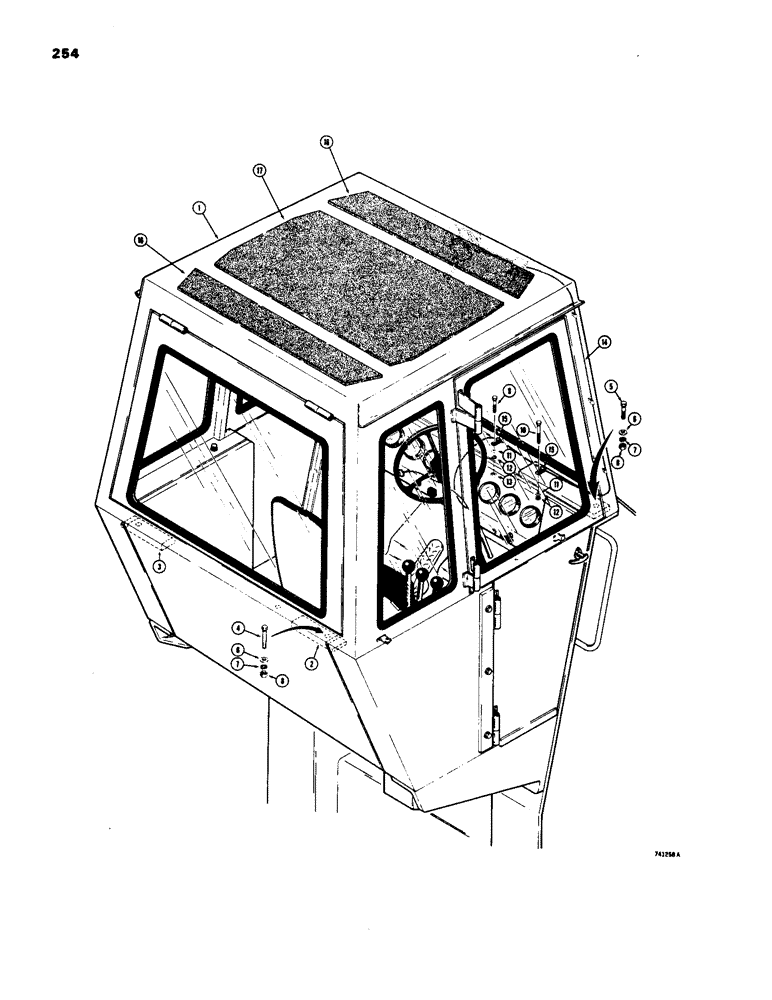

Запчасти Case W18 (254) - ROPS CANOPY AND CAB MOUNTING (09) - CHASSIS

1

L50580

CANOPY - ROPS (Machinery item) Before tractor Sn. 9109680, order L50621 and L50622 reinforcement plates separately

1шт.

1

REF

INSTRUCTION

CABS - see figure 257 and Figure 259A for service and parts

1шт.

1

L59652

CANOPY - ROPS (Machinery item) Used on tractor Sn. 9115403 and after

1шт.

Refs. may be purchased by ordering L80547 reinforcement kit.

1шт.

2

L50621

PLATE - reinforcement, canopy mounting (R.H.) Used when L50580 canopy or L50581 cab is ordered prior to tractor Sn. 9109680

1шт.

Refs. may be purchased by ordering L80547 reinforcement kit.

1шт.

3

L50622

PLATE - reinforcement, canopy mounting (L.H.) Used when L50580 canopy or L50581 cab is ordered prior to tractor Sn. 9109680

1шт.

Refs. may be purchased by ordering L80547 reinforcement kit.

1шт.

4

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

HHCS - 3/4" - 10 NC x 3-3/4" (Grade 8) ROPS only

2шт.

4

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

L50462 all weather cab only Hex, 3/4"-10 x 2", G8

2шт.

5

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

HHCS - 3/4" - 10 NC x 3-1/2" (Grade 8) ROPS only

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(L50462 all weather cab only) Hex, 1/2"-13 x 2", G5

2шт.

5a

95-8

WASHER,1/2"

- flat, L50462 all weather cab only 1/2"

2шт.

5b

92-8

LOCK WASHER,1/2"

L50462 all weather cab only 1/2"

2шт.

5c

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) L50462 all weather cab only

2шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

8

131-656

LOCK NUT,5/8"-11, GB

NUT - hex., lock (3/4" - 10 NC)

4шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

4шт.

11

95-8

WASHER,1/2"

- standard wrot 1/2"

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

14

L50619

HARNESS - wiring, heater and wiper, before tractor Sn. 9115403

1шт.

14

L59392

HARNESS - wiring, heater and wiper, tractor Sn. 9115403 and after

1шт.

15

49836

CLAMP

CLIP - harness (Cab only)

2шт.

16

L35803

HEADLINER - L59652 canopy

2шт.

17

L35806

HEADLINER - L59652 canopy

2шт.

L59650

KIT - converts L59652 canopy to L57831 cab (Machinery Item)

1шт.
