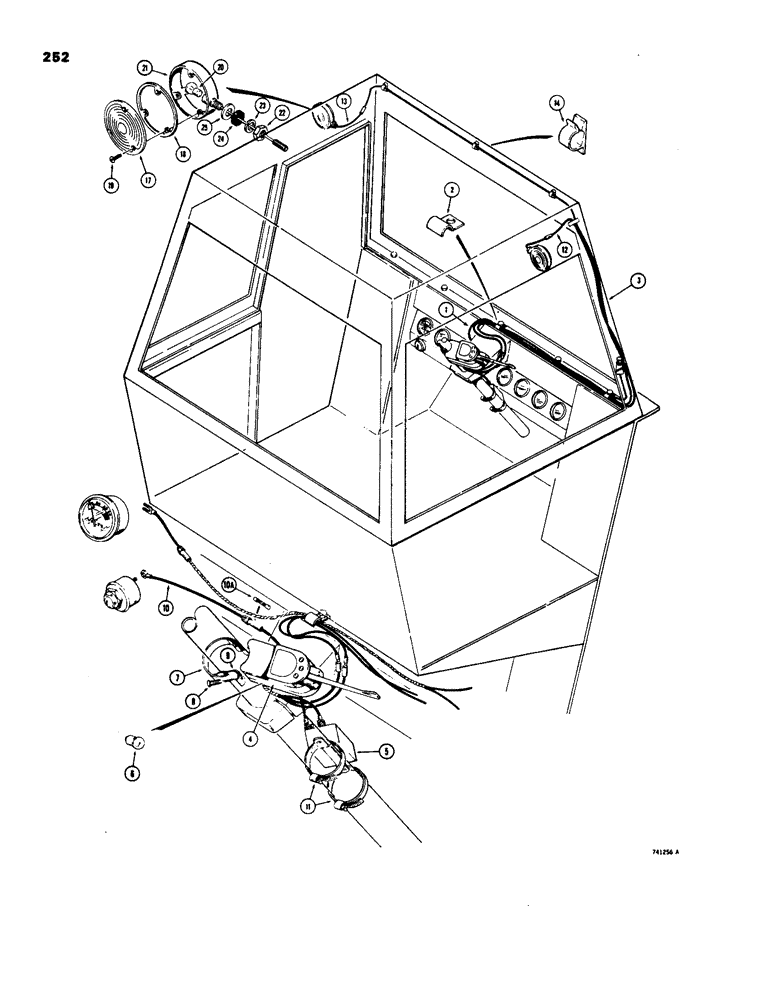

Запчасти Case W18 (252) - CAB WITH TURN SIGNAL AND FLASHER LIGHTS, BEFORE TRACTOR SN. 9115403 (09) - CHASSIS

1

L50619

HARNESS - wiring, heater and wiper

1шт.

2

49836

CLAMP

- harness

2шт.

3

REF

INSTRUCTION

CAB - See figures 257 and Figure 259A for service

1шт.

L52823

SIGNAL

- turn and flasher (Used L59393 wire and L59394 switch for service

1шт.

L59394

SIGNAL

ASSEMBLY - turn and flash, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

5

L32657

FLASHER UNIT

FLASHER - signal

1шт.

6

A14928

BULB

- direction indicator (24 volt)

1шт.

7

L32658

STRAP

- mounting, signal

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes: Ref. 8 and 9

1шт.

8

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine (#8 - 32 NC x 1")

2шт.

9

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

L59393

ELECTRICAL WIRE

WIRE - assembly, Includes: Ref. 10 and 10A

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE ASSEMBLY - without fuse

1шт.

10a

223-6

FUSE,6 Amp, Type 3AG

- 6 amp

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- signal mounting #28, 1.31/2.25 Type F Worm

2шт.

12

L17326

WIRE HARNESS

WIRE ASSEMBLY - signal to flasher (R.H.)

1шт.

13

L17325

WIRE - signal to flasher LH

1шт.

14

L18299

CLAMP

- wire

3шт.

L43738

INTERIOR LIGHT

LIGHT - flasher, double face, Includes: Ref. 17 - 25

2шт.

L32214

LENS

KIT - light, flasher, Includes: Ref. 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

LENS - light, flasher

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - special

3шт.

20

L32257

BULB

- flasher light

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - light, flasher (Double face)

1шт.

22

129-125

NUT,1/2"-20, G5

1шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

L32256

WASHER

- rubber

1шт.

25

195-105

WASHER,7/16"

- standard wrot (Zinc plated)

1шт.

26

L50658

WIRE - rear windshield wiper (Not shown)

1шт.

27

L33839

ELECTRIC MOTOR

MOTOR - wiper, rear windshield (Not shown)

1шт.

28

T42555

ARM

- wiper (Not shown)

1шт.

29

T42556

WINDSHIELD WIPER

BLADE - wiper (Not shown)

1шт.
