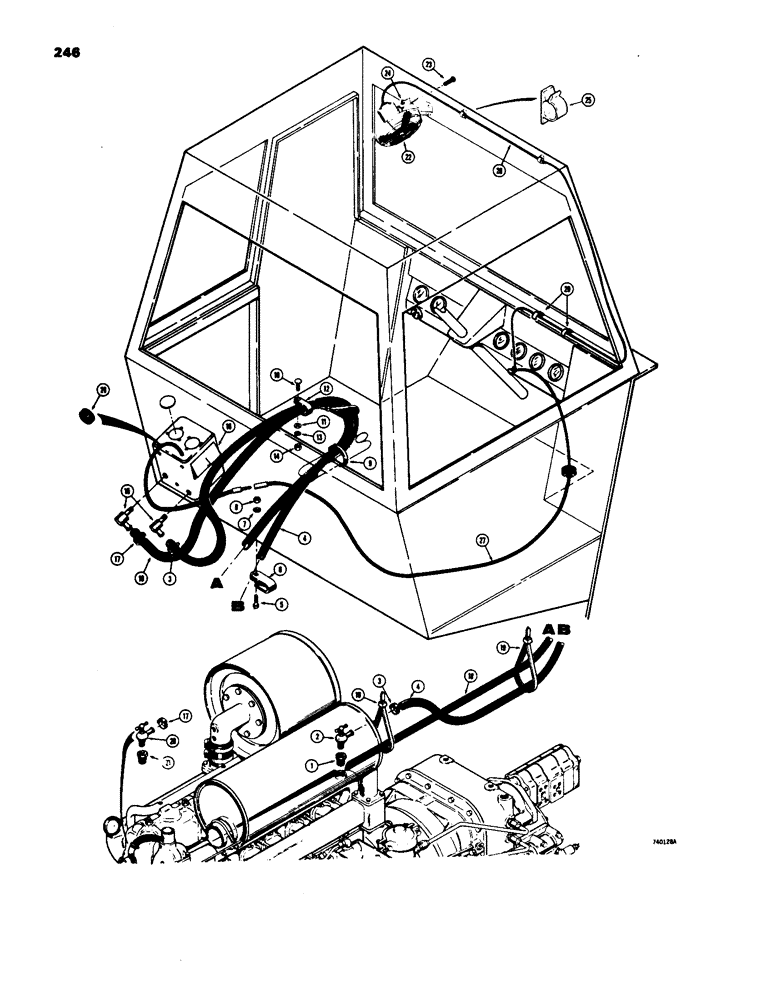

Запчасти Case W18 (246) - CAB HEATER AND DEFROSTER, BEFORE TRACTOR SN. 9115403 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
BUSHING - reducer (1/2" x 3/8")
1шт.
2
A16764
VALVE
- shutoff, water
1шт.
3
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
2шт.
4
L50608
HOSE
- low pressure, water manifold to heater (When stock is exhausted, L52721 to be supplied)
1шт.
4
L52721
HOSE,3124.00 mm, SAE 20R3
HEATER HOSE - Low pressure, Water manifold to heater 3124.00 mm, SAE 20R3
1шт.
5
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
6
L50062
SHIN
CLAMP - hose
1шт.
7
92-5
LOCK WASHER,5/16"
1шт.
8
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
9
L18331
CABLE TIE,375.9mm L, Nylon, Black
TIE STRAP - heater hose
2шт.
10
11-516
BOLT,Short NK, 5/16"-18 x 1", G2
CARRIAGE, Short NK, 5/16"-18 x 1", G2
2шт.
11
95-5
WASHER,3/8" x 7/8" x .083"
- standard wrot (5/16")
2шт.
12
L50062
SHIN
CLAMP - hose
2шт.
13
92-5
LOCK WASHER,5/16"
2шт.
14
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
2шт.
15
L50610
ELBOW
- adjustable, 90 deg.
2шт.
16
L50607
HEATER ASSEMBLY - cab (Parts list figure 251)
1шт.
17
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
2шт.
18
L18326
HOSE
- low pressure, heater to water pump (When stock exhausted, L52722 to be supplied)
1шт.
18
L52722
HOSE ASSY.
HOSE - low pressure, water, Serial Range: manifold-heater
1шт.
19
L11541
CABLE TIE,203.2mm L, Nylon
TIE STRAP - heater hose
2шт.
20
A16764
VALVE
- shut-off, water
1шт.
21
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
BUSHING - reducer (1/2" x 3/8")
1шт.
22
L48971
FAN
- defroster (Parts list Figure 248)
1шт.
23
173-205
X
RHMS - #10 - 24 NC x 5/8"
4шт.
24
86625057
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
4шт.
25
L54606
CLIP
CLAMP - wire
4шт.
26
L50066
WIRE - defroster fan to heater switch
1шт.
27
L50065
WIRE - heater to heater switch
1шт.
28
A17599
GROMMET,1/4" ID x 7/16" Groove Dia
- heater wire (At heater)
1шт.
29
49836
CLAMP
CLIP - wire
2шт.
Выбрано товаров: 31
