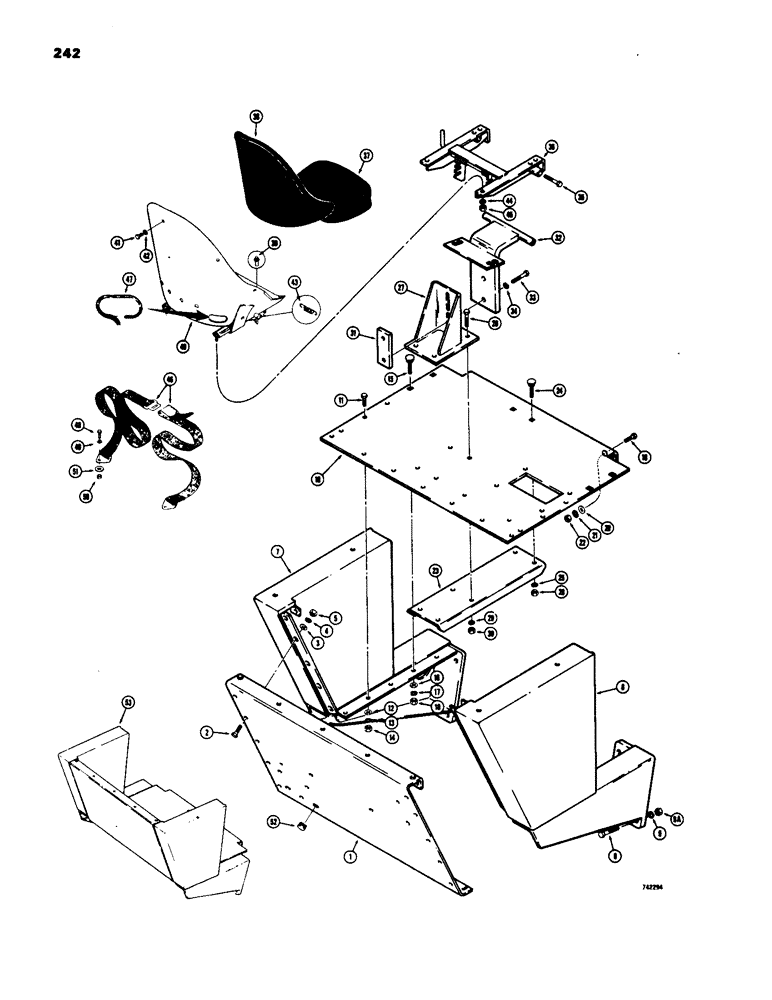

Запчасти Case W18 (242) - OPERATORS COMPARTMENT (09) - CHASSIS

1

L47921

BACK - operator's compartment

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

3

95-6

WASHER,3/8"

- flat () 3/8"

12шт.

4

92-6

LOCK WASHER,3/8"

12шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

12шт.

6

L47924

SIDE - operator's compartment, R.H. (When stock is exhausted, order L52645 side for service)

1шт.

6

L52645

SIDE - operator's compartment, R.H. (When stock is exhausted, order L55487 side for service)

1шт.

6

L55487

SIDE - operator's compartment, R.H.

1шт.

7

L47923

SIDE - operator's compartment, L.H. (When stock is exhausted, order L55486 side for service)

1шт.

7

L55486

SIDE - operator's compartment, L.H.

1шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

9a

25-1012

NUT,3/4"-10, G5

8шт.

10

L47922

FLOOR - operator's compartment

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

13шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

13шт.

13

92-5

LOCK WASHER,5/16"

13шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

13шт.

15

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

20

95-6

WASHER,3/8"

- plain () 3/8"

5шт.

21

92-6

LOCK WASHER,3/8"

5шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

5шт.

23

L47911

STIFFENER - floor (Bolt together compartment only)

1шт.

23

L53580

STIFFENER - floor, welded compartment only (Ref. No. 53 figure 245)

1шт.

24

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

27

L48503

PEDESTAL - seat

1шт.

28

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

25-108

NUT,1/2"-13, G5

- hex., lock (1/2")

4шт.

31

L48484

PLATE - clamp

1шт.

32

L48485

MOUNTING PARTS

MOUNTING - seat

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

2шт.

36

L48573

TILT ADJUSTMENT - seat

1шт.

L46484

SEAT

ASSEMBLY - operator's, Includes: Ref. 37 - 45

1шт.

37

D52470

CUSHION

- seat

1шт.

38

A42747

BACKREST

CUSHION - backrest

1шт.

39

L32870

PIN

- cushion alignment

2шт.

40

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

41

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

42

195-525

WASHER,3/8", SAE

- plain (3/8")

5шт.

43

L30533

VALVE SPRING

SPRING - adjusting

2шт.

44

92-5

LOCK WASHER,5/16"

4шт.

45

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

L50040

KIT

- seat belt, 3" webbing, Includes: Ref. 46 - 51

1шт.

46

D60615

SAFETY BELT ,3.00" W

3.00" W

1шт.

47

D35424

LINING

TRIM - seat shell

1шт.

48

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

49

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

50

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

2шт.

51

DR10768

WASHER

- seat belt

2шт.

52

353-418

PLUG - snap (7/16") If used

4шт.

52

353-419

PLUG - snap (9/16") If used

2шт.

52

353-420

PLUG - snap (7/8") If used

2шт.

53

L55637

COMPARTMENT - operator's, welded (No serviceable parts) Uses same mounting hardware and related parts as the earlier bolt together compartment except for floor stiffeners. See Ref. #23 figure 243.

1шт.
