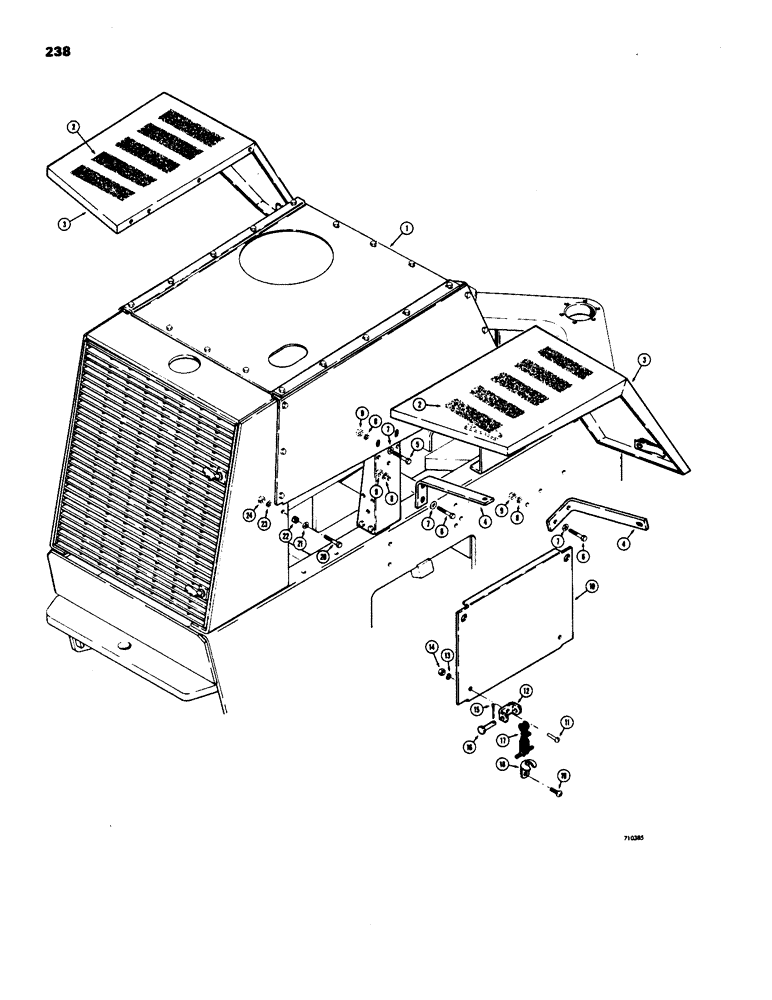

Запчасти Case W18 (238) - HOOD, REAR FENDERS AND ENGINE SIDE PANELS (09) - CHASSIS

1

REF

INSTRUCTION

HOOD - engine (See figure 235 for related parts)

1шт.

2

A55582

PAD

- non slip

10шт.

3

L48279

REAR FENDER

FENDER - rear

2шт.

4

L48282

BRACE

- rear, Serial Range: fender-frame

4шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Fender to hood) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Brace to fender and rear frame)

12шт.

7

95-6

WASHER,3/8"

- plain () 3/8"

24шт.

8

92-6

LOCK WASHER,3/8"

24шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

24шт.

10

L47146

PANEL ASSY.

PANEL - engine side

4шт.

11

182-242

SCREW,Sl Pan Hd, 5/16" - 18 x 3/4"

- machine, slotted pan head (5/16" - 18 NC x 3/4")

8шт.

12

L47159

BRACKET

- anchor, hood panel

8шт.

13

92-5

LOCK WASHER,5/16"

8шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

8шт.

15

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

8шт.

16

T11232

PIN

- anchor, hood panel

8шт.

17

L47157

HOOK

- hood panel

8шт.

18

L47158

BRACKET

- hook, hood panel

8шт.

19

151-552

RIVET,Pop, 3/16" x .825"

- bracket (3/16" x 5/8" long)

16шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

21

95-6

WASHER,3/8"

- standard wrot () 3/8"

8шт.

22

L16674

SLEEVE

- panel support

8шт.

23

92-6

LOCK WASHER,3/8"

8шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" x 16 NC)

8шт.
