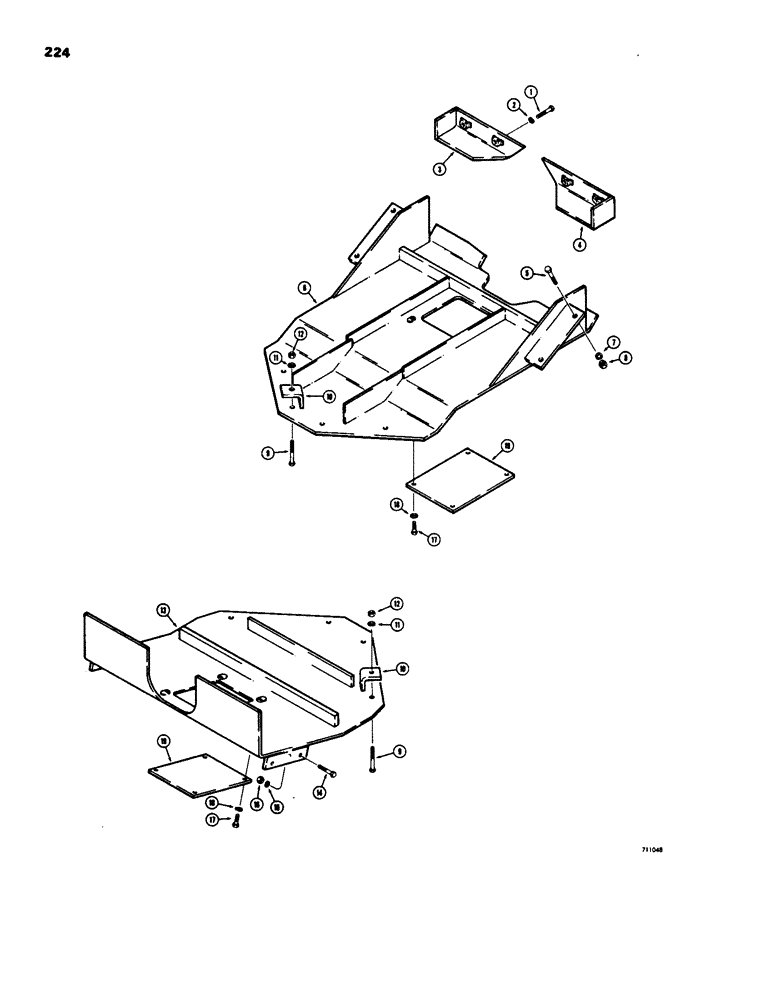

Запчасти Case W18 (224) - UNDERCARRIAGE GUARDS (09) - CHASSIS

1

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

L51221

CORNER GUARD - front frame, L.H.

1шт.

4

L51220

CORNER GUARD - front frame, R.H.

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

L51210

GUARD - drive line (Used before tractor Sn. 9115302, except 9115334 and 9115335)

1шт.

6

L70443

GUARD ASSY.

GUARD - drive line (Used tractor Sn. 9115334, 9115335, 9115302 and after)

1шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

9

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

8шт.

10

L51202

CLAMP

- guard mounting

8шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

25-1010

NUT,5/8"-11, G5

8шт.

13

L51212

GUARD

- drive line, rear frame

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

18

92-6

LOCK WASHER,3/8"

8шт.

19

L51205

COVER

- access, front or rear frame

2шт.
