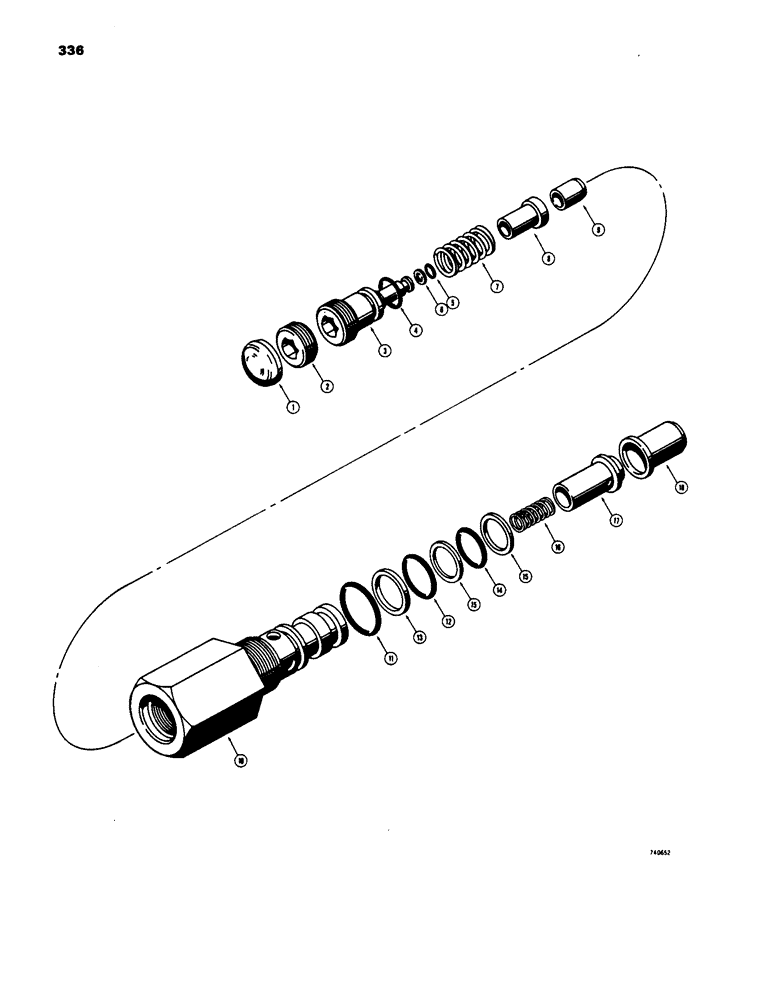

Запчасти Case W18 (336) - L32633 SECONDARY RELIEF VALVE, L33429 SECONDARY RELIEF VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L32633
VALVE
- secondary relief, Includes: Ref. 1 - 18
3шт.
1
41-14
PLUG
- expansion, 7/8" dia.
1шт.
2
L33449
PLUG
- end cap
1шт.
3
D65137
GUIDE
- spring
1шт.
4
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
SEAL - "O" ring, spring guide (Large)
1шт.
5
A51274
O-RING,0.145" ID x 0.285" OD
SEAL - "O" ring, spring guide (Small)
1шт.
6
D54860
RING
- backup, seal
1шт.
7
D37148
SPRING
- plunger
1шт.
8
D37151
PLUNGER
- relief
1шт.
9
D37075
SEAT
- plunger
1шт.
10
L33448
CAP
BODY - check valve
1шт.
11
A30843
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
SEAL - "O" ring, body to valve
1шт.
12
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
SEAL - "O" ring, check valve body (7/8" O.D.)
1шт.
13
A41346
RING
- backup, seal
1шт.
14
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL - "O" ring, check valve body (13/16" O.D.)
1шт.
15
G32626
RING
- backup, seal
2шт.
16
D48818
SPRING
- check poppet
1шт.
17
L32622
VALVE POPPET
POPPET - check
1шт.
18
L35334
SLEEVE
SEAT - check poppet
1шт.
L33429
VALVE
- secondary relief, Includes: Ref. 1 - 18
2-3шт.
1
41-14
PLUG
- expansion, 7/8" dia.
1шт.
2
L33449
PLUG
- end cap
1шт.
3
L33450
GUIDE
- spring
1шт.
4
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
SEAL - "O" ring, spring guide (Large)
1шт.
5
D40356
O-RING
SEAL - "O" ring, spring guide (Small)
1шт.
6
D40357
RING
- backup, seal
1шт.
7
D37148
SPRING
- plunger
1шт.
8
D37074
PLUNGER
- relief
1шт.
9
D37075
SEAT
- plunger
1шт.
10
L33448
CAP
BODY - check valve
1шт.
11
A30843
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
SEAL - "O" ring, body to valve
1шт.
12
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
SEAL - "O" ring, check valve body (7/8" O.D.)
1шт.
13
A41346
RING
- backup, seal
1шт.
14
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL - "O" ring, check valve body (13/16" O.D.)
1шт.
15
G32626
RING
- backup, seal
2шт.
16
D48818
SPRING
- check poppet
1шт.
17
L32622
VALVE POPPET
POPPET - check
1шт.
18
L32631
VALVE
SEAT - check poppet
1шт.
Выбрано товаров: 38
