(334) - SECONDARY RELIEF VALVE, L48130 AND L48732 LOADER CONTROL VALVES

Запчасти Case W18 (334) - SECONDARY RELIEF VALVE, L48130 AND L48732 LOADER CONTROL VALVES (08) - HYDRAULICS

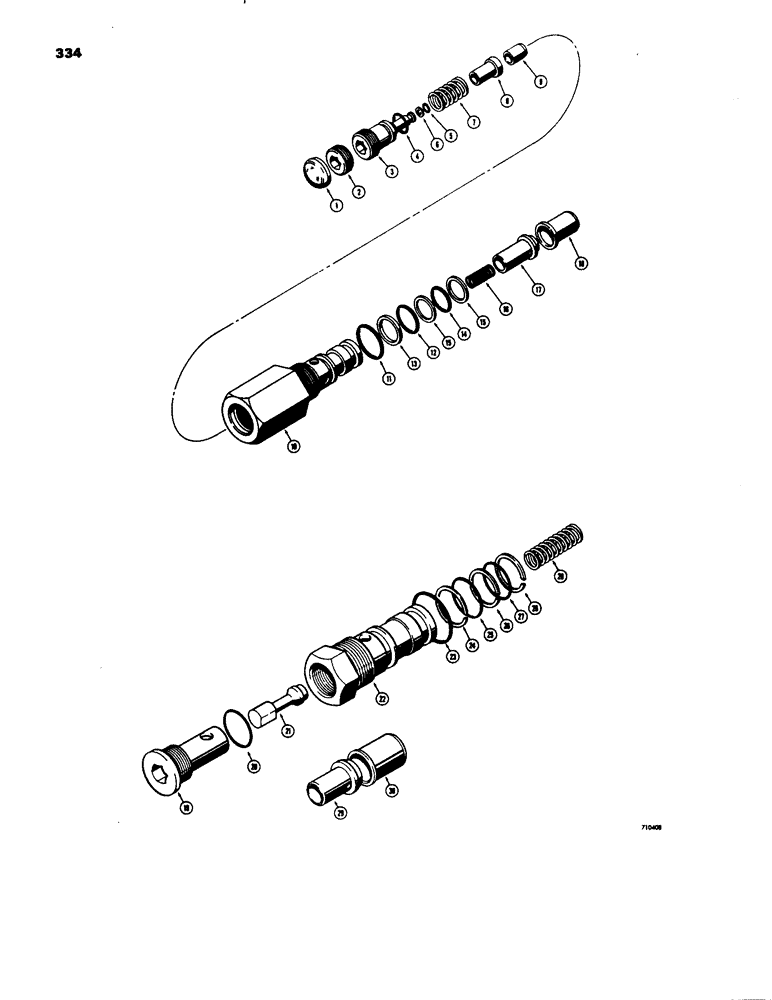

Схема запчастей Case W18 - (334) - SECONDARY RELIEF VALVE, L48130 AND L48732 LOADER CONTROL VALVES (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, Includes: Ref. 1 - 18

2-4шт.

1

41-14

PLUG

- expansion, 7/8" dia.

1шт.

2

L33449

PLUG

- end cap

1шт.

3

L33450

GUIDE

- spring

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - "O" ring, spring guide (Large)

1шт.

5

D40356

O-RING

SEAL - "O" ring, spring guide (Small)

1шт.

6

D40357

RING

- backup, seal

1шт.

7

D37148

SPRING

- plunger

1шт.

8

D37074

PLUNGER

- relief

1шт.

9

D37075

SEAT

- plunger

1шт.

10

L33448

CAP

BODY - check valve

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, body to valve

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, check valve body (7/8" O.D.)

1шт.

13

A41346

RING

- backup, seal

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring, check valve body (13/16" O.D.)

1шт.

15

G32626

RING

- backup, seal

2шт.

16

D48818

SPRING

- check poppet

1шт.

17

L32622

VALVE POPPET

POPPET - check

1шт.

18

L32631

VALVE

SEAT - check poppet

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check regeneration, Includes: Ref. 19 - 30

1шт.

19

L32628

PLUG

- regeneration check valve

1шт.

21

L32626

SPOOL

POPPET - small

1шт.

22

L32627

VALVE

CAP - regeneration check valve

1шт.

23

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, valve cap (Outer)

1шт.

24

A41346

RING

- backup, center "O" ring seal

1шт.

25

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, valve cap (Center)

1шт.

26

G32626

RING

- backup, inner "O" ring seal

2шт.

27

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring, valve cap (Inner)

1шт.

28

D48818

SPRING

- regeneration check valve

1шт.

29

L32622

VALVE POPPET

POPPET - regeneration check valve

1шт.

30

L32631

VALVE

SEAT - regeneration check valve

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.
