Запчасти Case W18 (333) - MAIN RELIEF VALVE (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

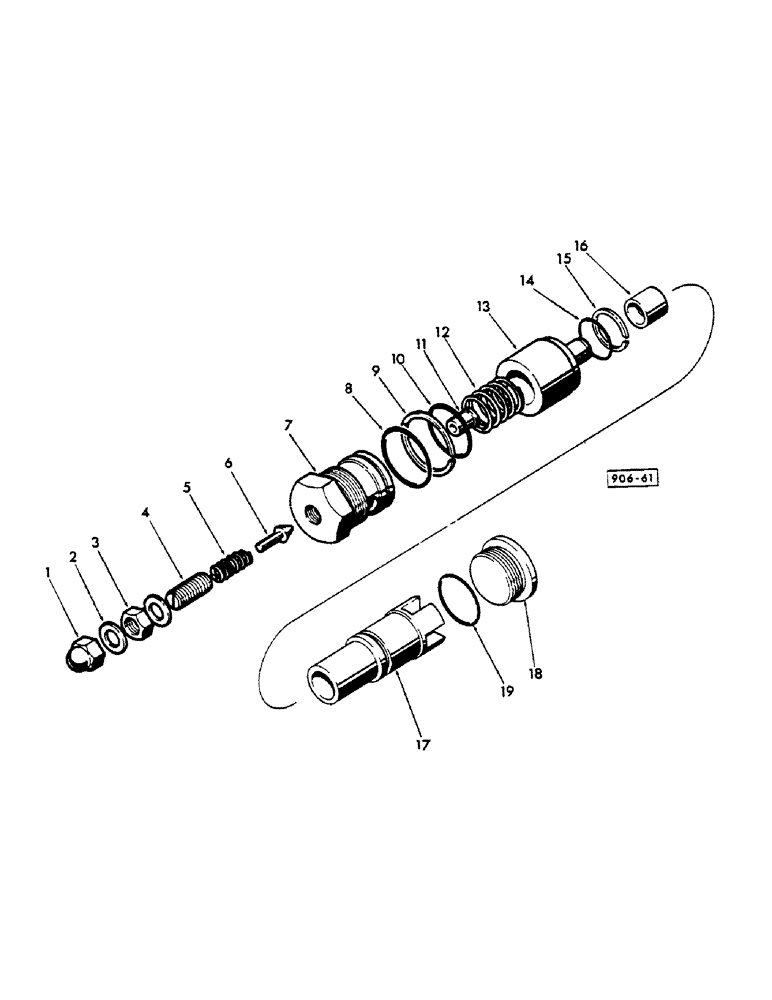

VALVE ASSY, main relief, NEG, Includes: Ref. 1 - 19

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

1шт.

2

D26270

WASHER, SEALING

SEAL WASHER

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

hex.

1шт.

4

176-298

SCREW,Sl Hdls, 5/16" - 24 x 1 1/2", Flat Pt

1шт.

5

D26268

SPRING

1шт.

6

D26267

PLUNGER

1шт.

7

L32615

CAP

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

large

1шт.

9

L32619

RING

backup

1шт.

10

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

11

D26266

SEAT

1шт.

12

L32617

SPRING

1шт.

13

L32620

VALVE POPPET

1шт.

14

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

15

L32619

RING

backup

1шт.

16

L32618

VALVE

seat

1шт.

17

L32616

SLEEVE

1шт.

18

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes Ref 19

1шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
