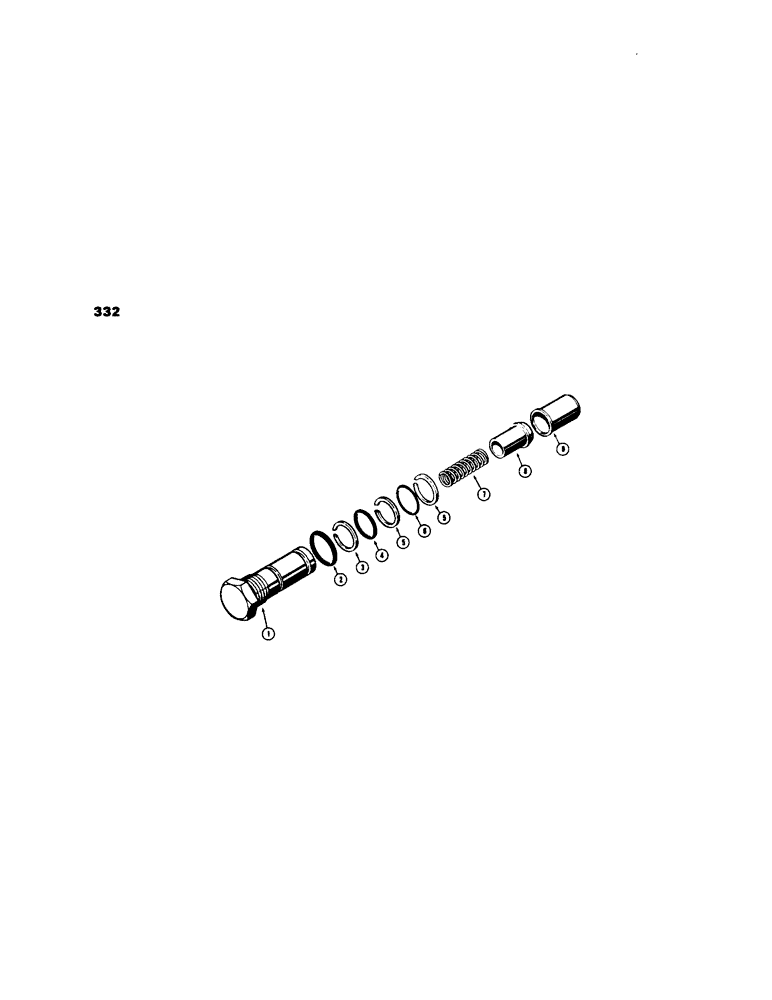

Запчасти Case W18 (332) - CHECK VALVE, L48130 AND L48732 LOADER CONTROL VALVES (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

VALVE - check, Includes: Ref. 1 - 9

1шт.

1

L32632

VALVE

CAP - check valve

1шт.

2

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, valve cap (Outer)

1шт.

3

A41346

RING

- backup, center "O" ring seal

1шт.

4

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, valve cap (Center)

1шт.

5

G32626

RING

- backup, inner "O" ring seal

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring, valve cap (Inner)

1шт.

7

D48818

SPRING

- check valve

1шт.

8

L32622

VALVE POPPET

POPPET - check valve

1шт.

9

L32631

VALVE

SEAT - check valve

1шт.
