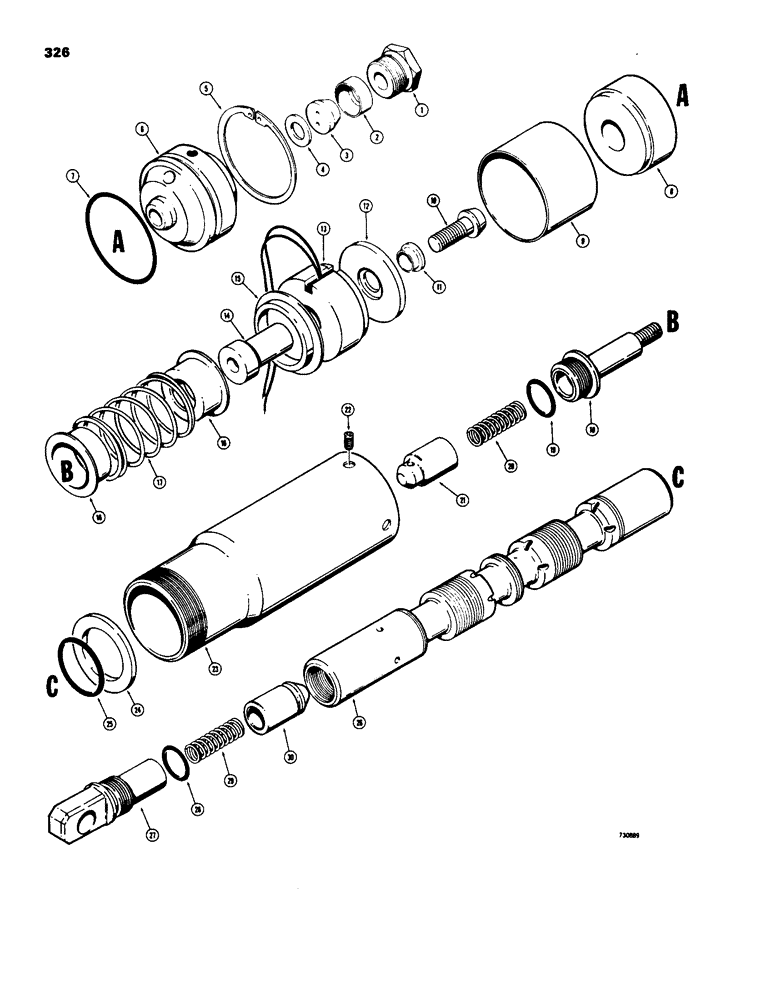

Запчасти Case W18 (326) - L35385 TILT SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L35385
SPOOL
ASSEMBLY - valve, tilt, Includes: Ref. 1 - 30
1шт.
1
L33773
PLUG
- seal access
1шт.
2
L33772
RING
CLAMP - ring, magnetic detent seal
1шт.
3
L33771
SEAL
- magnetic detent lead
1шт.
4
L33770
WASHER
- seal
1шт.
5
L33769
SNAP RING,#187, 1.960", Int, Spiral
RING - retaining, end plug
1шт.
6
L33768
PLUG
- spool end
1шт.
7
A15528
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
SEAL - "O" ring, plug
1шт.
8
L33767
BUSHING
SPACER - dummy coil, magnetic detent
1шт.
9
L33781
SPACER
- coil
1шт.
10
D56450
SCREW
- special, magnetic detent
1шт.
11
L33764
SPACER
- 9/32" long (Use D65129 washer and D65130 spacer)
1шт.
11
D65130
SPACER
- 23/64" long
1шт.
12
L33763
WASHER
- 3/16" thick (Use D65129 washer and D65130 spacer)
1шт.
12
D65129
WASHER
- 17/64" thick
1шт.
13
L33762
COIL
AND HOLDER ASSEMBLY - magnetic detent
1шт.
14
L35388
BUSHING
SPACER TUBE - magnetic detent
1шт.
15
L35389
WASHER
- special, coil shim
1шт.
16
A13164
RETAINER,13.49mm ID x 37.31mm OD
SEAT - spring
2шт.
17
L33776
SPRING
- centering
1шт.
18
L35387
PLUG
- spool end, internal
1шт.
20
L35327
SPRING
- restrictor, internal spool end
1шт.
21
L35326
VALVE POPPET
POPPET - restrictor, internal spool end
1шт.
22
178-415
SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt
SCREW - set, hex. socket headless (#10 - 24 NC x 3/8")
1шт.
23
L33778
HOUSING
- magnetic detent
1шт.
24
L32604
RETAINER,1.007" ID x 1.672" OD x 0.187"
RETAINER - "O" ring
1шт.
25
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
26
NSS
NOT SOLD SEPARAT
SPOOL - valve, tilt
1шт.
27
L35335
EYE
- spool
1шт.
29
L35324
SPRING
- make up, spool eye end
1шт.
30
L35325
SPOOL
POPPET - make up, spool eye end
1шт.
19
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O" ring, plug
1шт.
28
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O" ring, plug
1шт.
Выбрано товаров: 33
