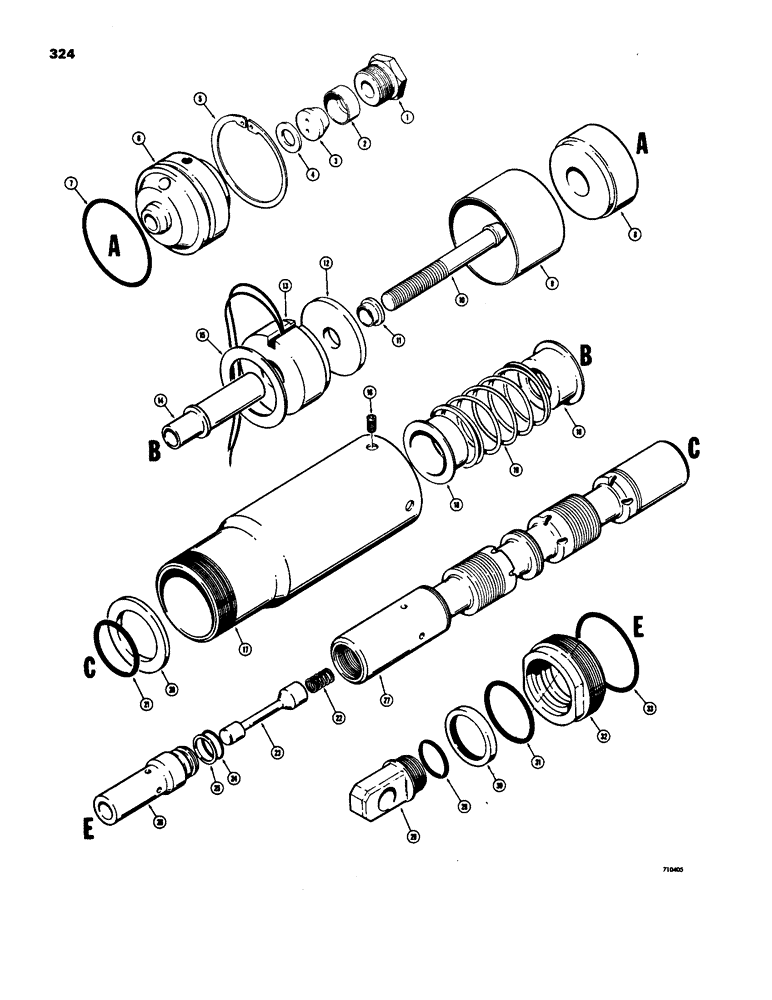

Запчасти Case W18 (324) - L33752 TILT SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L33752
SPOOL
ASSEMBLY - valve, tilt, Includes: Ref. 1 - 33
1шт.
1
L33773
PLUG
- seal access
1шт.
2
L33772
RING
CLAMP - ring, magnetic detent seal
1шт.
3
L33771
SEAL
- magnetic detent lead
1шт.
4
L33770
WASHER
- seal
1шт.
5
L33769
SNAP RING,#187, 1.960", Int, Spiral
RING - retaining, end plug
1шт.
6
L33768
PLUG
- spool end
1шт.
7
A15528
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
SEAL - "O" ring, plug
1шт.
8
L33767
BUSHING
SPACER - dummy coil, magnetic detent
1шт.
9
L33766
SPACER
- coil
1шт.
10
L33765
SCREW
- special, magnetic detent
1шт.
11
L33764
SPACER
- magnetic detent
1шт.
12
L33763
WASHER
- special, clapper
1шт.
13
L33762
COIL
AND HOLDER ASSEMBLY - magnetic detent
1шт.
14
L33760
SPACER
TUBE - magnetic detent
1шт.
15
L33761
WASHER
- special, coil shim
1шт.
16
178-415
SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt
SCREW - set, hex. socket headless (#10 - 24 NC x 3/8")
1шт.
17
L33759
HOUSING
- magnetic detent
1шт.
18
A13164
RETAINER,13.49mm ID x 37.31mm OD
SEAT - spring
2шт.
19
L33758
VALVE SPRING
SPRING - centering
1шт.
20
L32604
RETAINER,1.007" ID x 1.672" OD x 0.187"
RETAINER - "O" ring
1шт.
21
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
22
L32636
VALVE SPRING
SPRING - poppet
1шт.
23
L32637
VALVE
POPPET - check valve
1шт.
24
D37149
O-RING,104 mm ID
SEAL - "O" ring
1шт.
25
D37070
SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk
- backup
1шт.
26
L32638
SEAT
- poppet
1шт.
27
NSS
NOT SOLD SEPARAT
SPOOL - valve, tilt
1шт.
29
L51030
EYE
- spool
1шт.
30
A28211
OIL SEAL
WIPER - spool
1шт.
31
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL - "O" ring, small
1шт.
32
L32612
RETAINER
- seal
1шт.
33
A59004
O-RING,1.362" ID x 1.568" OD
SEAL - "O" ring, large
1шт.
28
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O" ring, spool eye
1шт.
Выбрано товаров: 34
