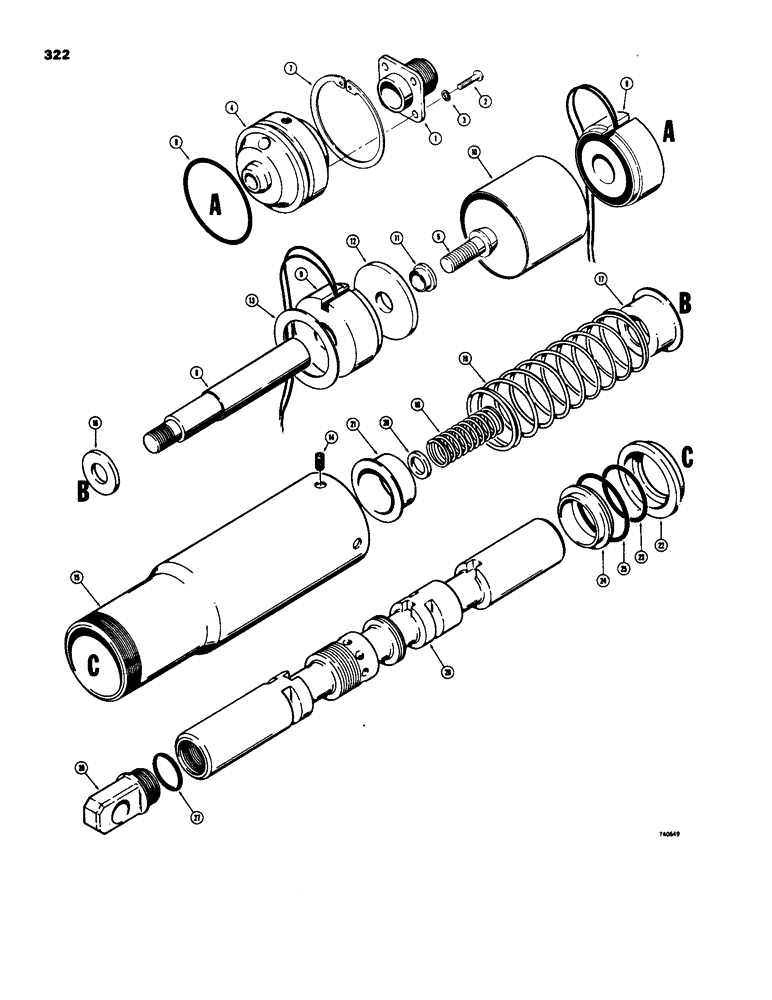

Запчасти Case W18 (322) - D63370 LIFT SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
D63370
SPOOL
ASSEMBLY - valve, lift, Includes: Ref. 1 - 28
1шт.
1
R33408
CONNECTOR, ELEC
CONNECTOR - spool
1шт.
2
182-4
SCREW
- round head (#4 - 40 NC x 5/16")
4шт.
3
192-53
LOCK WASHER,#4
WASHER, LOCK, #4
4шт.
4
D63372
PLUG
- spool end
1шт.
5
D56450
SCREW
- special
1шт.
6
D56449
STUD
- spool
1шт.
7
L33769
SNAP RING,#187, 1.960", Int, Spiral
RING - retaining, end plug
1шт.
8
A15528
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
SEAL - "O" ring, plug
1шт.
9
L33762
COIL
AND HOLDER ASSEMBLY - magnetic detent
2шт.
9
L70232
RESISTOR
COIL AND HOLDER ASSEMBLY - magnetic detent (Service replacement for L33762 to be used on L57678 and L57679 valves only)
1шт.
10
L33781
SPACER
- coil
1шт.
11
L33764
SPACER
- magnetic detent
1шт.
12
L33763
WASHER
- special, clapper
1шт.
13
L33761
WASHER
- special, coil shim
1шт.
14
178-415
SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt
SCREW - set, hex. socket headless (#10 - 24 NC x 3/8")
1шт.
15
L33778
HOUSING
- magnetic detent
1шт.
16
L33777
WASHER
- spring retaining
1шт.
17
A16846
CAP
SEAT - spring, inner
1шт.
18
L33775
SPRING
- feel, magnetic detent
1шт.
19
L33776
SPRING
- centering
1шт.
20
L33774
RING
WASHER - special
1шт.
21
A13164
RETAINER,13.49mm ID x 37.31mm OD
SEAT - spring, outer
1шт.
22
L32640
RETAINER
- "O" ring, inner
1шт.
23
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL - "O" ring, small
1шт.
24
L33433
RESTRICTOR
RETAINER - "O" ring, outer (replaces L32639)
1шт.
L33433 causes the Lift Arm to drop slower. L32639 causes the Lift Arm to drop faster. A faster drop could be jarring to the operator especially if the heavier 4 in 1 bucket is being used.
1шт.
25
L32613
O-RING
SEAL - "O" ring, large
1шт.
26
NSS
NOT SOLD SEPARAT
SPOOL - valve, lift
1шт.
28
L32635
EYE
- spool
1шт.
27
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O" ring, spool eye
1шт.
Выбрано товаров: 31
