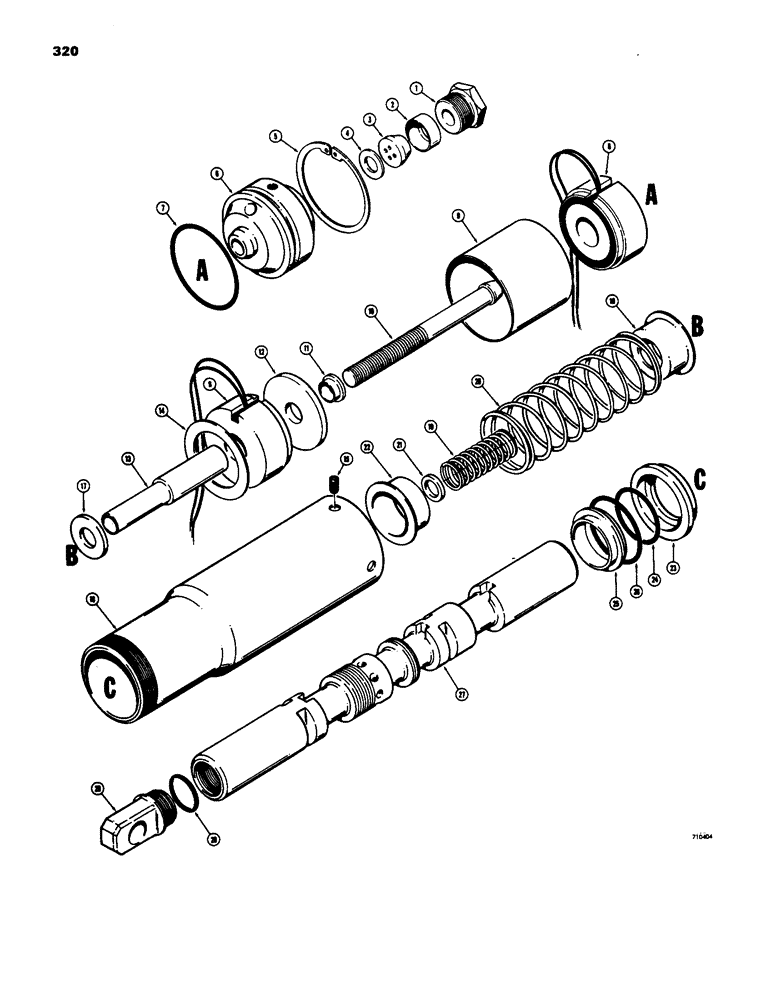

Запчасти Case W18 (320) - L33753 LIFT SPOOL (08) - HYDRAULICS

L33753

SPOOL

ASSEMBLY - valve, lift, Includes: Ref. 1 - 29

1шт.

1

L33773

PLUG

- seal access

1шт.

2

L33772

RING

CLAMP - ring, magnetic detent seal

1шт.

3

L33782

SEAL

- magnetic detent lead

1шт.

4

L33770

WASHER

- seal

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

RING - retaining, end plug

1шт.

6

L33768

PLUG

- spool end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SEAL - "O" ring, plug

1шт.

8

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

2шт.

9

L33781

SPACER

- coil

1шт.

10

L33780

SCREW,3/8" - 16 x 4", Gr 5

- special, magnetic detent

1шт.

11

L33764

SPACER

- magnetic detent

1шт.

12

L33763

WASHER

- special, clapper

1шт.

13

L33779

SPACER,0.445" ID x 0.578" OD x 3.093" L

TUBE - magnetic detent

1шт.

14

L33761

WASHER

- special, coil shim

1шт.

15

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

SCREW - set, hex. socket headless (#10 - 24 NC x 3/8")

1шт.

16

L33778

HOUSING

- magnetic detent

1шт.

17

L33777

WASHER

- spring retaining

1шт.

18

A16846

CAP

SEAT - spring, inner

1шт.

19

L33775

SPRING

- feel, magnetic detent

1шт.

20

L33776

SPRING

- centering

1шт.

21

L33774

RING

WASHER - special

1шт.

22

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring, outer

1шт.

23

L32640

RETAINER

- "O" ring, inner

1шт.

24

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

25

L32639

RETAINER

- "O" ring, outer

1шт.

26

L32613

O-RING

SEAL - "O" ring, large

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - valve, lift

1шт.

29

L32635

EYE

- spool

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, spool eye

1шт.
