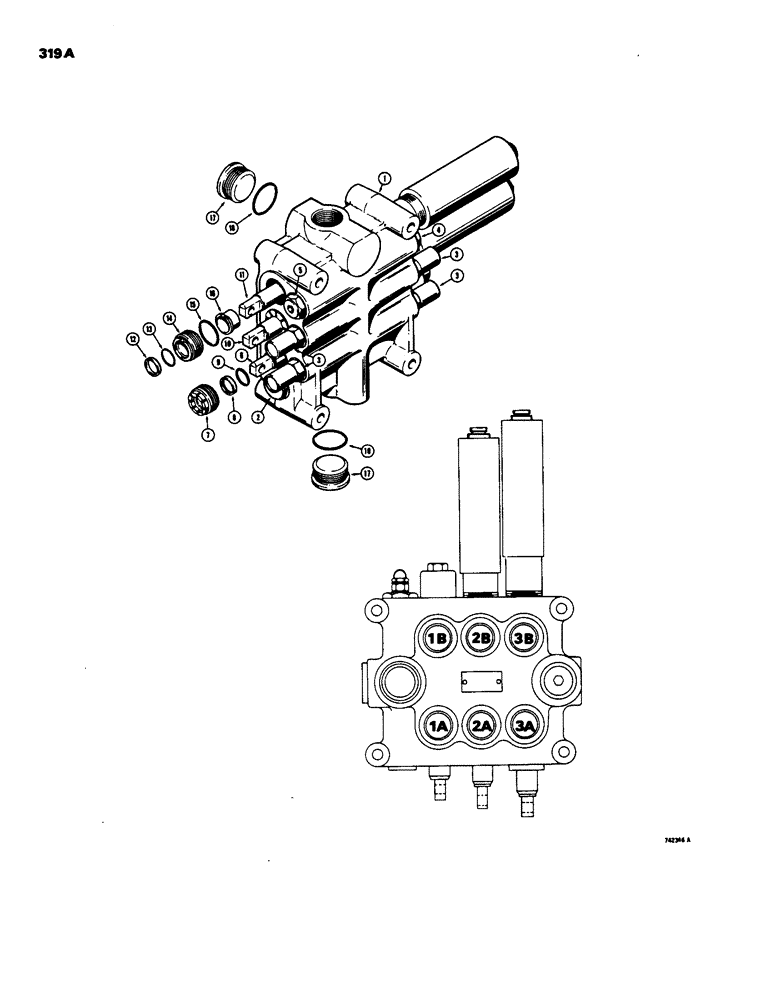

Запчасти Case W18 (319A) - L71422 LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

L71422

VALVE

- loader control, 3 spool, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list figure 333)

1шт.

3

L32633

VALVE

- secondary relief (Used in ports 1A, 1B, and 2B) Parts list Figure 336

3шт.

3

L33429

VALVE

- secondary relief (Port 2A) Parts list Figure 336)

1шт.

4

L35320

VALVE

- check (Used in port 3B) Parts list Figure 338

1шт.

5

L35321

VALVE

- check, regeneration (Used in port 3A) Parts list Figure 338

1шт.

6

L33751

SPOOL

- valve, Drott Clam (Parts list Figure 330)

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, seal

1шт.

10

D63369

SPOOL

- valve, tilt (Parts list Figure 328)

1шт.

11

D63370

SPOOL

- valve, lift (Parts list Figure 322)

1шт.

12

A28211

OIL SEAL

WIPER - spool

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

14

L32612

RETAINER

- seal

1шт.

15

L32613

O-RING

SEAL - "O" ring, large

1шт.

16

L32611

SLEEVE

- spool

1шт.

17

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 18

1шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

19

L33429

VALVE

- secondary relief (Parts list Figure 336)

1шт.

20

86625138

PLUG,7/18" - 14

Pipe, Includes Ref. 21 Hex Soc, 7/8"-14 ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
