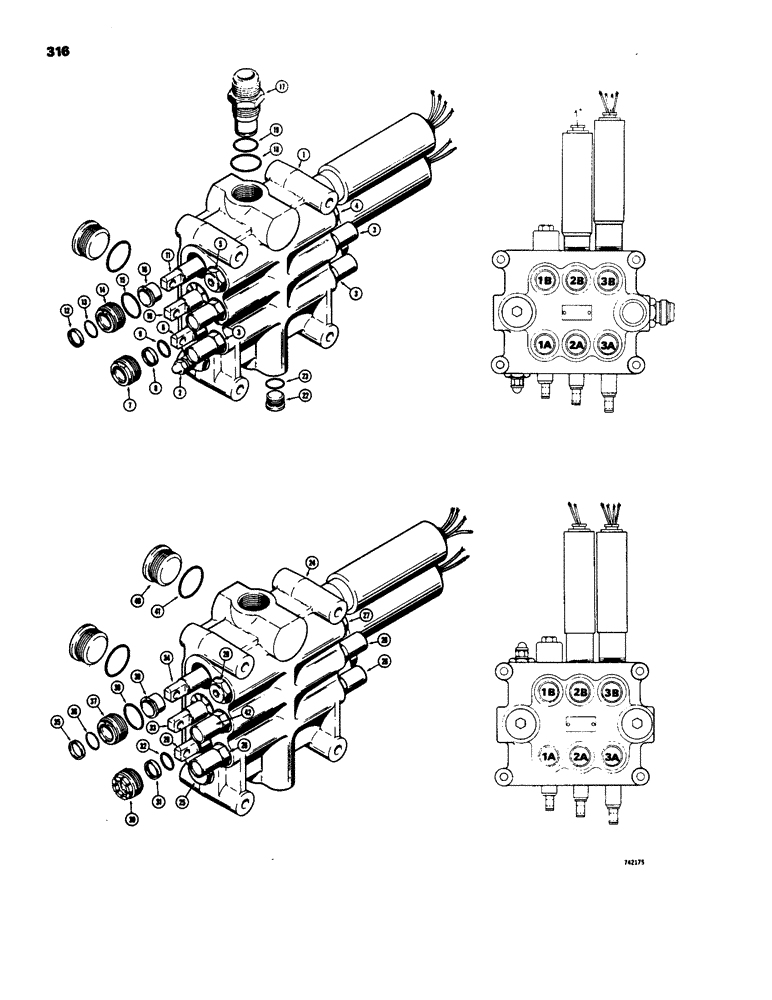

Запчасти Case W18 (316) - L48732 LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

L48732

CONTROL VALVE

VALVE - loader control, 3 spool, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list figure 333)

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Used in ports 1A, 2A, 1B and 2B) Parts list Figure 334

4шт.

4

NSS

NOT SOLD SEPARAT

VALVE - check (Used in port 3B) Parts list Figure 332

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check regeneration (Used in port 3A) Parts list Figure 334

1шт.

6

L33751

SPOOL

- valve, Drott clam (Parts list Figure 330)

1шт.

7

L32608

RETAINER

AND WIPER - Drott clam spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, seal

1шт.

10

L33752

SPOOL

- valve, tilt (Parts list Figure 324)

1шт.

11

L33753

SPOOL

- valve, lift (Parts list Figure 320)

1шт.

12

A28211

OIL SEAL

WIPER - lift spool

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

14

L32612

RETAINER

- seal

1шт.

15

L32613

O-RING

SEAL - "O" ring, large

1шт.

16

L32611

SLEEVE

- lift spool

1шт.

L32605

FITTING

ASSEMBLY - high pressure carry over, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

FITTING - high pressure carry over

1шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

19

A32178

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

20

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head (Large), Includes: Ref. 21

1шт.

21

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

22

86625138

PLUG,7/18" - 14

Pipe (Small), Includes Ref. 23 Hex Soc, 7/8"-14 ORB

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

L53153

VALVE

- loader control, 2 spool (Use L71422 valve, L70848 connector and L70849 connector), (3spool), Includes: Ref. 24 - 42

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - valve, loader control (3spool)

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 332), loader control (3spool)

1шт.

26

L35319

VALVE

- secondary relief (Used in ports 1A, 1B and 2B) Parts list Figure 338, loader control valve (3spool)

3шт.

27

L35320

VALVE

- check (Used in port 3B) Parts list Figure 338, loader control (3spool)

1шт.

28

L35321

VALVE

- check, regeneration (Used in port 3A) Parts list Figure 338, loader control valve (3spool)

1шт.

29

L33751

SPOOL

- valve, clam (Parts list Figure 330), loader control (3)

1шт.

30

L32608

RETAINER

AND WIPER - spool, loader control valve (3)

1шт.

31

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal, loader control valve (3spool)

1шт.

32

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, seal, loader control valve (3spool)

1шт.

33

L35385

SPOOL

- valve, tilt (Parts list Figure 326), loader control (3spool)

1шт.

34

L33753

SPOOL

- valve, lift (Parts list Figure 320), loader control (3spool)

1шт.

35

A28211

OIL SEAL

WIPER - spool, loader control valve (3)

1шт.

36

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, small, loader control valve (3spool)

1шт.

37

L32612

RETAINER

- seal, loader control valve (3spool)

1шт.

38

L32613

O-RING

SEAL - "O" ring, large, loader control valve (3spool)

1шт.

39

L32611

SLEEVE

- spool, loader control valve (3)

1шт.

40

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, loader control valve (3spool), Includes: Ref. 41

2шт.

41

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, loader control valve (3spool)

1шт.

42

L35386

VALVE

- secondary relief (Used in port 2A) Parts list Figure 338, loader control (3spool)

1шт.
