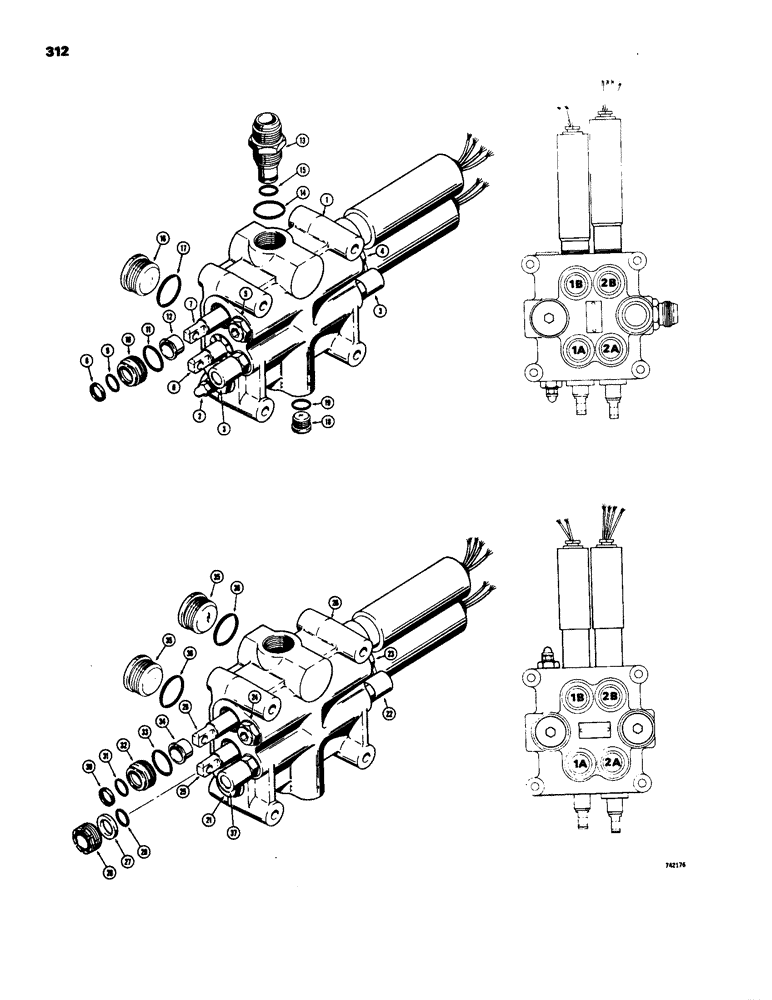

Запчасти Case W18 (312) - L48130 LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

L48130

LOCK VALVE

VALVE - loader control, 2 spool, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list figue 333)

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Used at ports 1A and 1B) Parts list Figure 334

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - check (Used at port 2B) Parts list Figure 332

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, regeneration (Used at port 2A) Parts list Figure 334

1шт.

6

L33752

SPOOL

- valve, tilt (Parts list Figure 324}

1шт.

7

L33753

SPOOL

- valve, lift (Parts list Figure 320)

1шт.

8

A28211

OIL SEAL

WIPER - lift spool

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

10

L32612

RETAINER

- seal

1шт.

11

L32613

O-RING

SEAL - "O" ring, large

1шт.

12

L32611

SLEEVE

- lift spool

1шт.

L32605

FITTING

ASSEMBLY - high pressure carry over, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

FITTING - high pressure carry over

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

15

A32178

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex, socket head, Includes: Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

86625138

PLUG,7/18" - 14

Pipe, Includes Ref. 19 Hex Soc, 7/8"-14 ORB

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

L53152

VALVE

- loader control, 2 spool (When stock is exhausted, L70410 valve, (1) L70848 connector and (1) L70849 connector will be supplied), Includes: Ref. 20 - 37

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - valve, loader control (2 spool)

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list figure 333), loader control valve (2 spool)

1шт.

22

L35319

VALVE

- secondary relief (Used at port 1B) Parts list Figure 338, loader control valve (2 spool)

1шт.

23

L35320

VALVE

- check (Used at port 2B) Parts list Figure 338, loader control valve (2 spool)

1шт.

24

L35321

VALVE

- check, regeneration (Used at port 2A) Parts list Figure 338, loader control valve (2 spool)

1шт.

25

L35385

SPOOL

- valve, tilt (Parts list Figure 326), loader control (2 spool)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool, loader control valve (2), Includes: Ref. 26 - 28

1шт.

26

L32608

RETAINER

AND WIPER - spool, loader control valve (2)

1шт.

27

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal, loader control valve (2 spool)

1шт.

28

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, special, loader control valve (2 spool)

1шт.

29

L33753

SPOOL

- valve, lift (Parts list Figure 320), loader control (2spool)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, loader control valve (2), Includes: Ref. 30 - 34

1шт.

30

A28211

OIL SEAL

WIPER - spool, loader control valve (2)

1шт.

31

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, small, loader control valve (2 spool)

1шт.

32

L32612

RETAINER

- seal, loader control valve (2 spool)

1шт.

33

L32613

O-RING

SEAL - "O" ring, large, loader control valve (2 spool)

1шт.

34

L32611

SLEEVE

- spool, loader control valve (2)

1шт.

35

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, loader control valve (2spool), Includes: Ref. 36

2шт.

36

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, loader control valve (2spool)

1шт.

37

L35386

VALVE

- secondary relief (Used at port 1A) Parts list Figure 338, loader control valve (2spool)

1шт.
